Standard flow controller for most laboratory applications.
Made in China. brand YIDU, model SC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

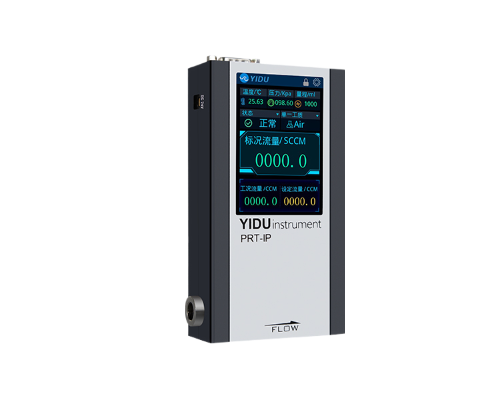

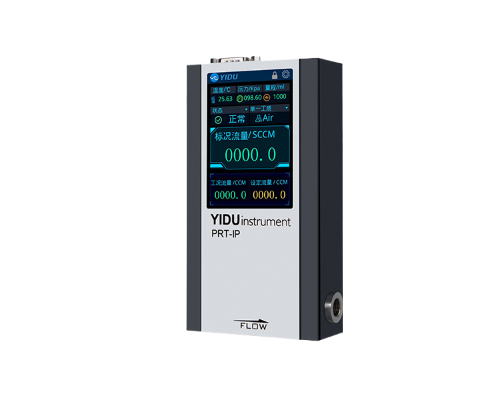

The SC series laminar mass flow controller is used to control the flow of process gases in real time. Unique laminar differential technology combined with compensation implemented using high-precision pressure and temperature sensors, as well as proprietary key algorithms, provide the product with characteristics such as high accuracy, high repeatability, low zero drift, and low temperature and pressure drifts. A powerful touchscreen display allows direct input of the set flow rate and displays the current pressure, temperature, operating flow rate, and flow rate under standard conditions. The ability to freely switch between flow meter and regulator modes, multi-component gases, multi-range, without the need to enter conversion factors.
Features
Principle Introduction
Laminar mass flow controllers leverage patented internally-compensated laminar differential pressure technology [Patent No.: ZL20151 0610447.5]. Equipped with integrated pressure and temperature sensors, they comprehensively compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. Precision solenoid proportional valves automatically modulate gas flow according to setpoints, delivering exceptionally accurate and stable flow measurement and control.
Application
When precise gas flow control or automated production line integration is required, laminar mass flow controllers serve as essential instruments deployed across research laboratories and diverse industrial process automation systems, delivering superior stability and accuracy.
| Model | PIPG-SC101 PIPG-SC201 |
PIPG-SC102 PIPG-SC202 |
PIPG-SC120 PIPG-SC220 |
PIPG-SC150 PIPG-SC250 |
| Flow range | 0.5, 1, 2, 5, 10, 20 SCCM | 50, 100, 200, 500, 1000, 2000 SCCM | 5, 10, 20, 50, 100, 200 SLPM | 500, 1000, 1500, 2000, 3000, 4000, 5000 SLPM |
| Valve type | N/C Normally Closed | |||
| Accuracy | SC100: ±1.0% S.P. (set point) (within 20%–100%), ±0.2% F.S. (full scale) (within 1%–20%); Accuracy range: (-20℃ to 60℃) SC200: ±0.5% S.P. (set point) (within 20%–100%), ±0.1% F.S. (full scale) (within 1%–20%); Accuracy range: (-20℃ to 60℃) SC100-WR: ±1.0% S.P. (set point) (within 10%–100%), ±0.1% F.S. (full scale) (within 1%–10%); Accuracy range: (-20℃ to 60℃) |
|||
| Repeatability | SC100: ±0.2% F.S. SC200: ±0.1% F.S. SC100-WR: ±0.2% F.S. |
|||
| Pressure shift | Zero: ≤±0.2% F.S./100 kPa; Span：≤±0.2% F.S./100 kPa (Benchmark 100 KPaA) |
|||
| Temperature shift | Zero: ≤±0.02% F.S./℃; Span：≤±0.02% F.S./℃ (Benchmark 25℃) |
|||
| Operating range | 1%～100% F.S. | |||
| Response time | ≤700 ms | |||
| Warm-up time | ≤1 s | |||
| Fluid temperature range | -20℃～60℃ | |||
| Ambient temperature range | -20℃～50℃ | |||
| Operating humidity range | 0%–98% (non-condensing) | |||
| Operating differential pressure range | 100 kPa ~ 700 kPa | |||
| Proof Pressure | 1.5 MPaA | |||
| Maximum operating pressure | 1 MPa | |||
| Power supply voltage | 24 VDC ±20% | |||
| Power consumption current | < 500 mA (< 12 W) | |||
| Installation | None (any orientation) | |||
| Wetted materials | Stainless steel SUS316L | |||
| Seal material | O-rings: Fluororubber (FKM) | |||
| Display type | Color LCD touch screen | |||
| Communication interface | Standard: Digital: RS485 Optional: PROFIBUS, Analog: 0–5 V / 4–20 mA |
|||
You can request the necessary certificates, documentation, instructions and user guide for YIDU SC using the special form.
