Enhanced multimode fiber test kit for Tier-1 certification on TestPro CV100, featuring dual wavelength LED light source (850/1300nm), Encircled Flux compliance, integrated VFL, volt meter, and resistance measurement.
Made in USA. brand AEM, model AD-MM-K01E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 240
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

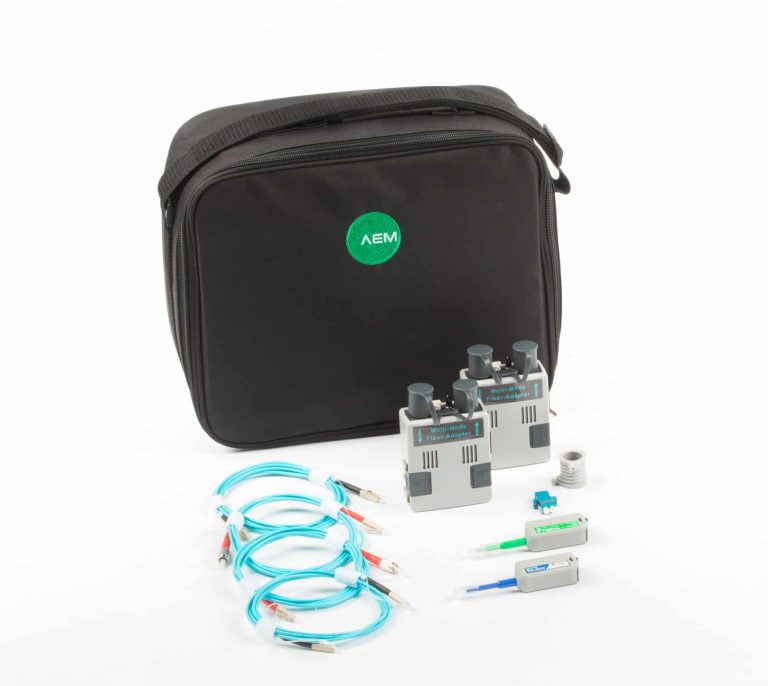

The AEM AD-MM-K01E is an Enhanced Multimode Fiber Test Kit for TestPro CV100, designed for Tier-1 fiber optic certification testing. The kit contains a pair of multimode fiber adapters with dual wavelength light source (850nm/1300nm), integrated visual fault locator (VFL), volt meter, and resistance measurement capability. The Multimode loss test adapters support testing of OM5 fiber in addition to earlier generation fiber standards, with an Encircled Flux (EF) compliant Multimode source eliminating the need for bulky external adapters.
Key Features
Kit Includes
| Kit Type | Enhanced Multimode Fiber Test Kit |
| Compatibility | TestPro CV100 |
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm) |
| Wavelengths | 850 nm ±10 nm; 1300 nm (+35/‑15 nm) |
| Light Source | LED |
| Transmit Power | ‑20 dBm typical |
| Encircled Flux | Compliant to IEC‑61280‑1‑4 and TIA‑526‑14‑C‑2015 |
| Length Measurement Range | Up to 2 km (subject to maximum 10 dB link loss) |
| Length Measurement Resolution | 0.1 m |
| Loss Measurement Range (Dual‑Ended) | 0 to –10 dB |
| Visual Fault Locator (VFL) | Integrated, 650 nm wavelength |
| Voltage Measurement Range | 0–60 V DC |
| Resistance Measurement Range | 0–100 Ω |
| Fiber Optic Certification Standard | TIA‑568.3‑E and ISO/IEC 14763‑3 Ed 2.1 |
| Connector Interfaces | Transmit: interchangeable FC (FC‑LC launch cords included) Receive: interchangeable LC (LC‑LC reference cords included) |
| Unit of Measure | SET |
You can request the necessary certificates, documentation, instructions and user guide for AEM AD-MM-K01E using the special form.
You can buy AEM AD-MM-K01E in UAE at a price starting from 4240 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM AD-MM-K01E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
