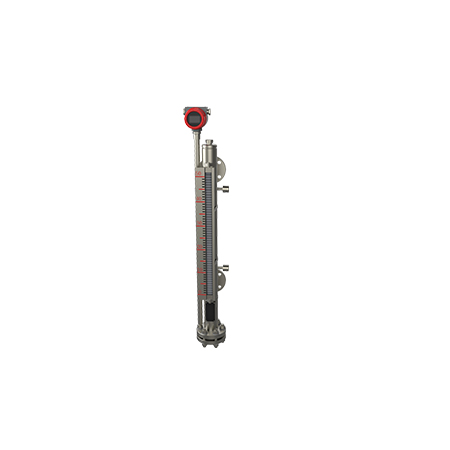

UHC magnetic level gauge provides a safer, more reliable and more visible option than conventional glass level gauge. The float moves up and down with the change of level, and the float transmits the level signal through the coupling magnetic field, which divides into the local indication type and the remote transmission output type.
Chamber and float have a variety of materials and pressure-grade options and are suitable for complex process applications of current major operating devices.
Made in China. brand DDTOP, model UHC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
UHC magnetic level gauge is a new generation of level meter based on the magnetic coupling principle. This product has advanced technology, reasonable structure, clear and intuitive display. It is suitable for petroleum, chemical, electric power, light industry, pharmaceutical and other industries. The level gauge is divided into side-mounted type and top-mounted type. Side-mounted type is for side-mounted applications. Top-mounted type for top-mounted applications, particularly suitable for level measurement in underground storage vessels.
Working Principle
UHC magnetic level gauge is mainly composed of measuring tube and local indicator. Side-mounted type level gauge is connected to the process vessel through interface flanges to form a connector. The float in the measuring tube moves up and down with the liquid level (or interface) changes. The magnetic steel in the float drives the local indicator, which clearly and intuitively indicates the liquid level (interface level) in the process vessel. Top-mounted type level gauge directly installed on the top of the process vessel. The float moves up and down with the liquid level (or interface) to drive the magnetic connecting rod to move up and down. The magnetic steel in the magnetic connecting rod drives the local indicator, which clearly and intuitively indicates the liquid level (or interface level) in the process vessel. If used in conjunction with remote transmitter and upper and lower limit alarms, it can easily realize remote transmission and automatic control of liquid level signals.
1.The float adopts 304,316 L, TA2 and TC4 material. It has good temperature resistance and can reach to 450℃.
2.The welding process meets the requirements of PED welding process. The chamber is made of 304,316 L. The maximum pressure can reach to 26 MPa.
3.Local indicator type and remote output type with level alarm are optional.
4.According to customer requirements, through a variety of production types, the products can be applied to a variety of working conditions.
Refining: diesel storage tank, catalytic reformers, acid-containing sedimentation tank, hydrocracking, hydrogenation desulfurization, coking unit, solvent extraction, alkylation tank, isomerization, crude oil storage, crude oil desalination, reboiler, distillation tower
Chemical: Demineralized water tank, fermentation tank, chemical reactor, vapor drum in chemical industry, chemical injection, buffer tank, chlor-alkali process, condenser, vapor-liquid separation, liquid ammonia storage, liquid-liquid extraction
Natural Gas: chemical injection, light hydrocarbon recovery, acid gas recovery
Sewage Treatment: plant water
Crude Oil Treatment: crude oil dehydration, drilling fluid storage tank
Electricity: desalination tank, deaerator, power plant vapor drum, feed water heater, boiler sewage tank, lubricating oil tank, flash tank, washing tank, waste heat boiler, pre-flash tank
1. UHC Magnetic Level Gauge Side-mounted Type Local Indicator
1.1 Side-mounted Type Magnetic Level Gauge (Normal Type)
1.2 Side-mounted Type Magnetic Level Gauge (High Temperature Type)
1.3 Side-mounted Type Magnetic Level Gauge (High Pressure Type)
1.4 Side-mounted Type Magnetic Level Gauge (Anti-corrosion Type)
1.5 Side-mounted Type Magnetic Level Gauge (Low Temperature)
2. UHC Magnetic Level Gauge Top-mounted Type Local Indicator
2.1 Top-mounted Type Magnetic Level Gauge (Normal Type)
2.2 Top-mounted Type Magnetic Level Gauge (Anti-corrosion Type)
3. Transmitter Part
There are two types of level transmitters: Hall-Resistive level transmitter and magnetostrictive level transmitter.
3.1 Hall-resistive level transmitter
The transmission device is tied to the outside of measuring tube. When the float moves up and down with liquid level, the hall switch corresponding to the liquid level value is turned on by the magnetic field of the float, which changes the resistance value and current, and is converted into a 4-20 mA signal through the conversion circuit to achieve the purpose of transmission.
Intrinsic safety：Ex ia II C T5…T6 Ga
3.2 Magnetostrictive Level Transmitter
The transmission device is tied to the outside of measuring tube, and there is a magnetostrictive wire in the remote transmission tube. A microprocessor-controlled sensor circuit emits current pulses along the magnetostriction, creating a circular magnetic field around the magnetostriction line. The magnetic steel inside the float magnetizes the magnetostrictive line along the axial direction. The superposition of the two magnetic fields generates a torsional pulse that travels along the magnetostrictive line to the top of the sensor, and the pulse transmission time is captured and calculated by the circuit unit to determine the float position. and is converted into a 4-20 mA signal through the conversion circuit to achieve the purpose of transmission.
Intrinsic safety：Ex ia ⅡC T5/T4 Ga
4. Upper and Lower Limit Alarms
It is installed on the outside of chamber, and can be adjusted to any position.
Intrinsic safety：Ex ia ⅡC T1～T5/T6 Ga
| Model | Code | Contents | |||||||||||||
| UHC- | Magnetic Level Gauge | ||||||||||||||
| A | Side-mounted | ||||||||||||||
| B | Top-mounted | ||||||||||||||
| T | Without transmitter | ||||||||||||||
| S1 | With hall-resistance level transmitter (upside) | ||||||||||||||
| S2 | With hall-resistance level transmitter (upside-down) | ||||||||||||||
| U1 | With magnetostrictive level transmitter (upside) | ||||||||||||||
| U2 | With magnetostrictive level transmitter (upside-down) | ||||||||||||||
| 0 | Without alarms | ||||||||||||||
| 1 | With 1 alarm | ||||||||||||||
| 2 | With 2 alarms | ||||||||||||||
| 3 | With 3 alarms | ||||||||||||||
| 4 | With 4 alarms | ||||||||||||||
| 2 | PN10(1.0MPa) | ||||||||||||||
| 3 | PN16(1.6MPa) | ||||||||||||||
| 4 | PN20(CLASS150) | ||||||||||||||
| 5 | PN25(2.5MPa) | ||||||||||||||
| 6 | PN40(4.0MPa) | ||||||||||||||
| 7 | PN50(CLASS300) | ||||||||||||||
| 8 | PN63(6.3MPa) | ||||||||||||||
| 9 | PN100(10.0MPa) | ||||||||||||||
| 10 | PN110(CLASS600) | ||||||||||||||
| 11 | PN150(CL900) | ||||||||||||||
| 12 | PN160(16.0MPa) | ||||||||||||||
| 13 | PN250(25.0MPa) | ||||||||||||||
| 14 | PN260(CL1500) | ||||||||||||||
| 15 | PN320 | ||||||||||||||
| 2 | 304 | ||||||||||||||
| 4 | 316L | ||||||||||||||
| 127 | 304+PTFE | ||||||||||||||
| X | Other material | ||||||||||||||
| – | |||||||||||||||
| – | * | Level ρ or interface ρ1/ρ2 | |||||||||||||
| – | |||||||||||||||
| * | Measuring range (Please indicate the insertion depth or the length of the neck when choosing top-mounted type) | ||||||||||||||
| d | Explosion-proof | ||||||||||||||
| i | Intrinsic safety | ||||||||||||||
| 0 | Without heat tracing | ||||||||||||||
| W | Heat tracing with attached pipe (heat tracing interface R1/2) | ||||||||||||||
| B | Jacket heat tracing (heat tracing interface R1/2) | ||||||||||||||
| D | Electric heating | ||||||||||||||
| -792 | Complied with PED certification | ||||||||||||||
| – | |||||||||||||||
Note:
If nominal pressure rating exceeds the options in the table, refer to the model selection table for a model similar to the actual requirement.
Example of Model Selection
UHC-AS2142-0.8/0.5-1800dW , with Hall-resistive type (upside down) transmitter, with an alarm, pressure rating 2.0MPa, wetted material 304, interface measurement, medium density 0.8 g/cm3 and 0.5g/cm3, measuring range is 1800mm, explosion-proof type, side-mounted magnetic level gauge with attached pipe heat tracing.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP UHC using the special form.
You can buy DDTOP UHC in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. DDTOP UHC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
