The float level controller is based on the principle of buoyancy, and the float moves equidistantly following the liquid level. Because of this, they are commonly used for narrow return level applications.
Made in China. brand DDTOP, model UQK-300
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

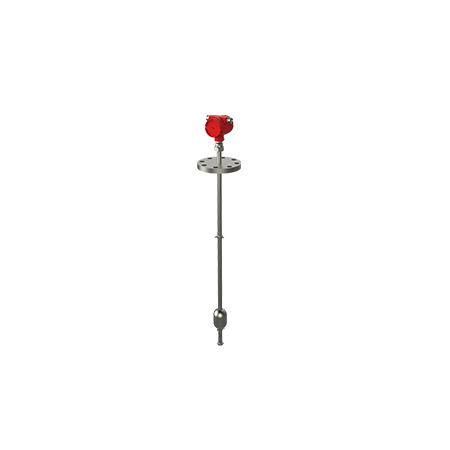

UQK(S)-300 Float Level Switch is suitable for petroleum, chemical, textile dyeing and finishing, and water treatment, etc, to control and alarm the fluid level or interface in various containers in the production process.
Operating Principle
The UQK-300 Float Level Switch consists of magnetic float, measuring rod, reed switch, junction box, etc. Magnetic float moves up and down with the level change and reed switch operates at setting alarm position to control the alarm system alarming or the pump to start and stop.
Features
1.The product uses 304, 316 high-quality materials, which make product more durable and reliable
2.It is applicable to the working condition of pressure from vacuum ~26MPa, temperature -40℃~+300℃
3.The product has passed SIL2 functional safety certification and explosion-proof certification, and can be used in a variety of working conditions to effectively avoid the occurrence of accidents.
4.The pressure-bearing part and the switch contact part are completely isolated by magnetic coupling, which make the product high reliability and safety.
Applications
| Model | Code | Content | |||||||
| UQK－300 | Float Level Switch | ||||||||
| L1 | Upper limit alarm | ||||||||
| L2 | Lower limit alarm | ||||||||
| Y | Upper, lower limit alarm | ||||||||
| – | |||||||||
| * | Distance from upper alarm setting position | ||||||||
| – | to flange interface | ||||||||
| * | |||||||||
| – | Distance from lower alarm setting position to flange interface | ||||||||
| * | |||||||||
| d | Fluid density(g/cm3) | ||||||||
| i | Explosion-proof | ||||||||
| UQK－300 | □ | – | □ | – | □ | – | □ | □ | Intrinsically safe |
Model Selection Table
UQK-300Y-300-1500-0.8d is UQK-300 Float Level Switch, upper and lower limit alarm, distance from upper alarm setting position to flange interface is 300mm, distance from lower alarm setting position to flange interface is 1500mm, fluid density is 0.8 g/cm³ and explosion-proof required.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP UQK-300 using the special form.
