The High Temperature Box Camera can be combined with devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640×512 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25°C, F# = 1.0) |
| Focal Length | 15 mm |
| IFOV | 1.13 mrad |
| Aperture | F1.5 |
| Field of View | 41.5° x 33.3° (H x V) |
| Min. Focusing Distance | 0.5 m |
| Measurement and Analysis | |
| Object Temperature Range | 0°C to 800°C (32°F to 1472°F), 600°C to 1800°C (1112°F to 3272°F) |
| Temperature Accuracy | Object temperature 100°C to 1800°C (212°F to 3272°F), ± 2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ± 3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| Measurement Presets | Hot spot, cold spot in real time Point: 10 User Presets Line: 1 User Presets Area: 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Thermographic Integration | Temperature Metadata |
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 4 fps, 32-bit 640 x 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 x 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | |
| Main Stream | 50 fps ( 1280 x 720, 704 x 576, 640 x 512, 352 x 288, 384 x 288 ) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP |
| Simultaneous Live View | Up to 3 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0 to 3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10 to 30 VDC |
| Power Consumption | 4.8 W Max |
| Working Temperature/Humidity | -20°C to 50°C (-4°F to 122°F) 90% or less |
| Protection Level | IP40 |

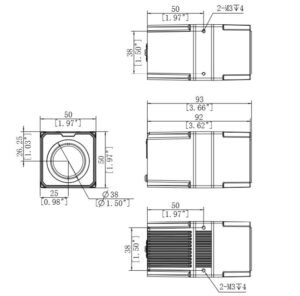

| Dimensions | 93 mm x 50 mm x 50 mm ( 3.66″ x 1.97″ x 1.97″) |
| Weight | Approx. 344 g (0.76 lb) |
| Mount | M3 |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2A67H1-15/Q | 640x512, 15 mm, 39.9°×32.4°, 50fps, 0~1800℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, Power in DC 12V | В наличии | from 9 360$ |
-
+
|
