Made in China. brand HIKMICRO, model HM-TD2H67H1-15/Q
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $10 460
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

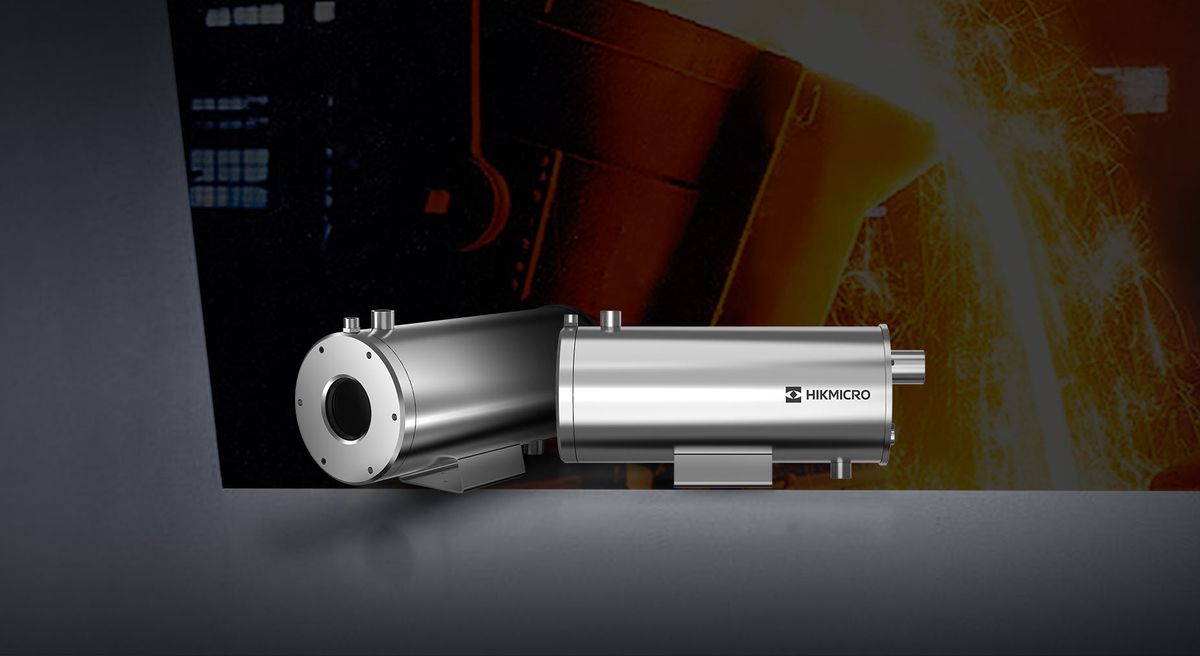

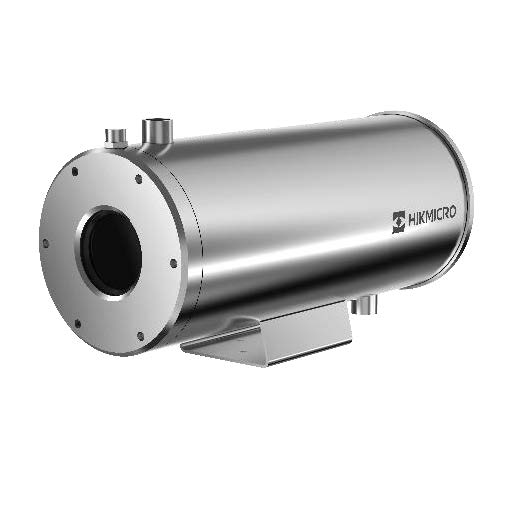

HIKMICRO HM-TD2H67H1-15/Q Thermographic Heat Resistant Bullet Camera is able to measure object’s temperature at a high temperature of environment in real time. With the advantage of standing high temperature, low power consumption, it can independently be used for failure detection, and industrial process control. The industries can be applied to devices for molten steel/molten iron detection, cement rotary kiln, glass processing, automobile lab, temperature measurement of conveyor belt for transferring billet, rail rolling temperature measurement, etc.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640×512 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) |
| Focal Length | 15 mm |
| Focus Mode | Athermalized |
| IFOV | 1.13 mrad |
| Aperture | F1.5 |
| Field of View | 41.5° x 33.3° (H x V) |
| Min. Focusing Distance | 0.5 m |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Measurement and Analysis | |
| Object Temperature Range | 0°C to 800°C (32°F to 1472°F), 600°C to 1800°C (1112°F to 3272°F) |
| Temperature Accuracy | Object temperature 100°C to 1800°C (212°F to 3272°F)，±2% for ambient temperature 18°C to 25°C (64.4°F to 77°F) and ±3% for ambient temperature 25°C to 50°C (64.4°F to 77°F) |
| Measurement Presets | Hot spot, cold spot in real time |
| Point | 10 User Presets |
| Line | 1 User Presets |
| Area | 10 User Presets |
| Color Alarm (Isotherm) | Above/Between/Below |
| Thermographic Integration | Temperature Metadata |
| Temperature Metadata | Continuous output data of preset thermographic rules and measured temperature |
| Thermographic Data Encoding | 4 fps, 32-bit 640 x 512 per frame |
| Thermographic Data Upload | Real-time full-screen thermographic data matrix (16-bit or 32-bit 640 x 512) via RTSP, ISAPI, and SDK |
| Raw Data Upload | Real-time full-screen YUV data via RTSP and SDK |
| Video and Image | |
| Main Stream | 50 fps (640 x 512) |
| Video Compression | H.264/H.265/MJPEG |
| Color Palettes | 15 options:
White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Photo | Model | Description |
|---|---|---|
|
DS-1707ZJ-E | Wall Mount Bracket |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2H67H1-15/Q | 640x512, 15 mm, 39.9°x32.4°, 0~1800℃, ±2℃/±2%, Alarm I/O, DC 12V, Working temperature range from 0 °C to 200 °C with additional air or liquid cooling system | В наличии | from 10 460$ |
-
+
|
|
| DS-1707ZJ-E | Wall mount bracket for Heat Resistant Box camera with Housing | Delivery time from 12 weeks | from 140$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD2H67H1-15/Q using the special form.
You can buy HIKMICRO HM-TD2H67H1-15/Q in UAE at a price starting from 10460 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO HM-TD2H67H1-15/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
