Made in China. brand HIKMICRO, model Mini3R
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 100
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Combine Acoustic Imaging and Thermal Imaging in One Tool

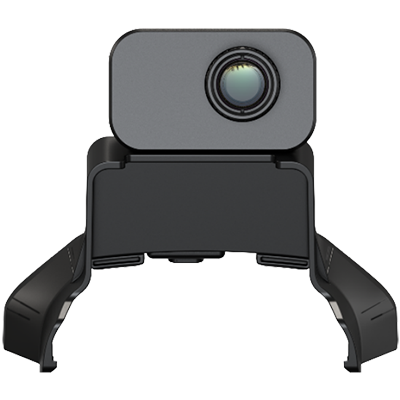

The Mini3R Thermal Imager is a product suite that complements Hikmicro’s acoustic imaging camera. Featuring a 384×288 IR resolution, it enables full-screen infrared temperature detection with high accuracy. Its adjustable insertion direction and rotatable lens for focus adjustment allow seamless integration with the acoustic imaging camera, offering engineers a professional, dual-function solution for infrared and acoustic imaging detection.
| Infrared Image | |
| IR Resolution | 384×288 (110,592 pixels) |
| NETD | ≤ 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 10 mm |
| F-number | F1.0 |
| Field of View (FOV) | 26° x 19° |
| Focus Mode | Manual Focus |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 650°C (-4°F to 1202°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| General | |
| Power Consumption | 550 mW |
| Protection Level | IP54 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 145 g (0.32 lb) |
| Dimension | 123.37 x 107.57 x 63.09 mm (4.86 x 4.24 x 2.48 in) |
| Interface | USB-C |
Model Number: HM-TJ33P-10RF-Mini3R
The warranty for the HIKMICRO Mini3R thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TJ33P-10RF-Mini3R | 384×288 Thermal resolution, 26° × 19°, manual focus, NETD<30mk, 25Hz, -20~650℃, ±2℃/±2%, support AI76 | В наличии | from 1 100$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Mini3R using the special form.
You can buy HIKMICRO Mini3R in UAE at a price starting from 1100 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO Mini3R price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
