Made in China. brand HIKMICRO, model QF310
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 200
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

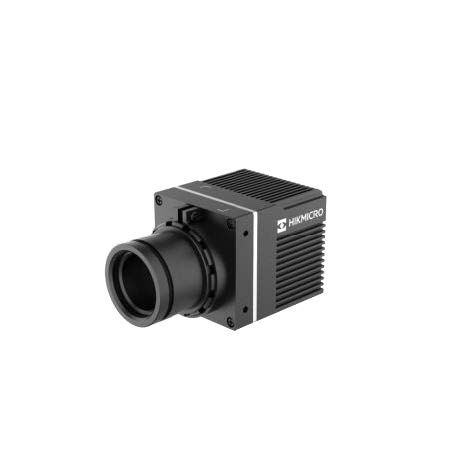

The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement
Model Number:
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384×288 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 30 mk(@25 °C,F#=1.0) |
| Focal Length | 3 mm 4 mm 8 mm 10 mm 18 mm |
| IFOV | 3 mm : 4.00 mrad 4 mm : 3.00 mrad 8 mm : 1.50 mrad 10 mm : 1.20 mrad 18 mm : 0.67 mrad |
| Field of View | 3 mm : 90.0°(H)x65.0°(V) 4 mm : 60.4°(H)x44.9°(V) 8 mm : 34.0°(H)x26.0°(V) 10 mm : 27.0°(H)x20.4°(V) 18 mm : 13.7°(H)x10.4°(V) |
| Min. Focusing Distance | 3 mm : 0.15 m 4 mm : 0.25 m 8 mm : 0.80 m 10 mm : 1.30 m 18 mm : 5.00 m |
| Aperture | 3 mm : F1.00 4 mm : F1.00 8 mm : F1.00 10 mm : F1.15 18 mm : F1.15 |
| Measurement and Analysis | |
| Object Temperature Range | -20 °C to 150 °C , 0°C to 650 °C |
| Temperature Accuracy Max | (± 2 °C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 21 rules (max. 21 points, max. 21 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 21. |
| Video and Image | |
| Main Stream | 50 fps (384 x 288) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 18 options:
White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Winter, Summer, Blue Red |
| Digital Zoom | x2, x4, x8 |
| Radiometric Capture | Yes |
| Radiometric Infrared- Video Streaming (Compressed) |
Over RJ45/UVC, 384 x 288@50 fps |
| Network | |
| Protocols | IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RT P, TCP, UDP, IGMP, ICMP, DHCP, ISUP, GB28181, ONVIF, modbusTCP, WebSocket, PPPoE,SRTP,OTAP |
| Simultaneous Live View | Up to 20 channels |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 V DC) |
| Alarm Output | 1, alarm output; NO, Built-in relay (max. DC 60V 1.3A) |
| Analog Output | 1, CVBS output |
| Communication Interface |
1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (HIKVISION, PELCO-P, PELCO-D, modbusRTU, modbusASCII) 1, USB type-c port that supports the UVC protocol |
| General | |
| Menu Language | 33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power Supply | 12 V DC, Max. 3.2 W |
| Working Temperature/Humidity |
-20 °C to 60 °C 90% or less |
| Protection Level | IP40 |
| Mount | M3 |
| Weight | 3 mm : Approx. 163 g 4 mm : Approx. 165 g 8 mm : Approx. 171 g 10 mm : Approx. 162 g 18 mm : Approx. 162 g |

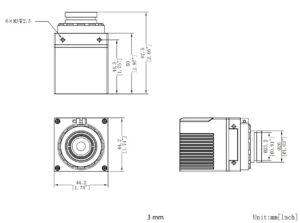

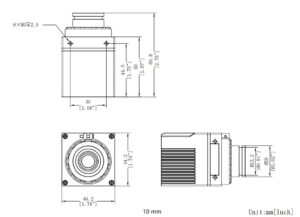

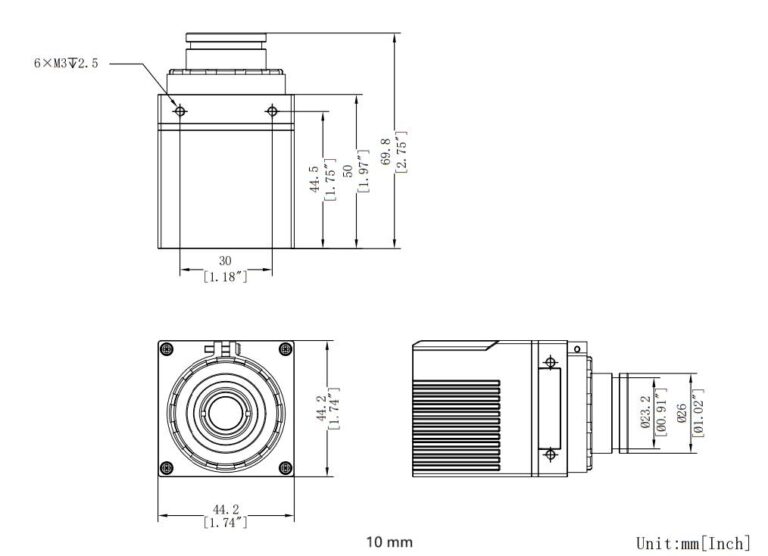

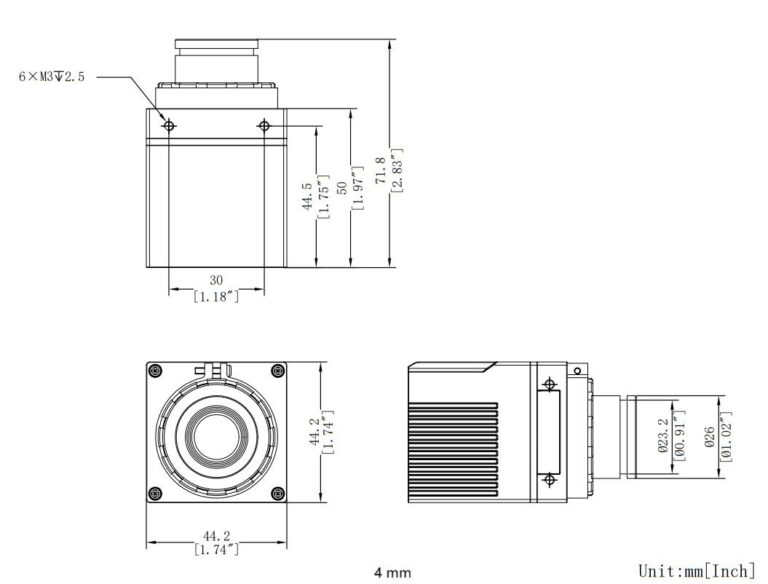

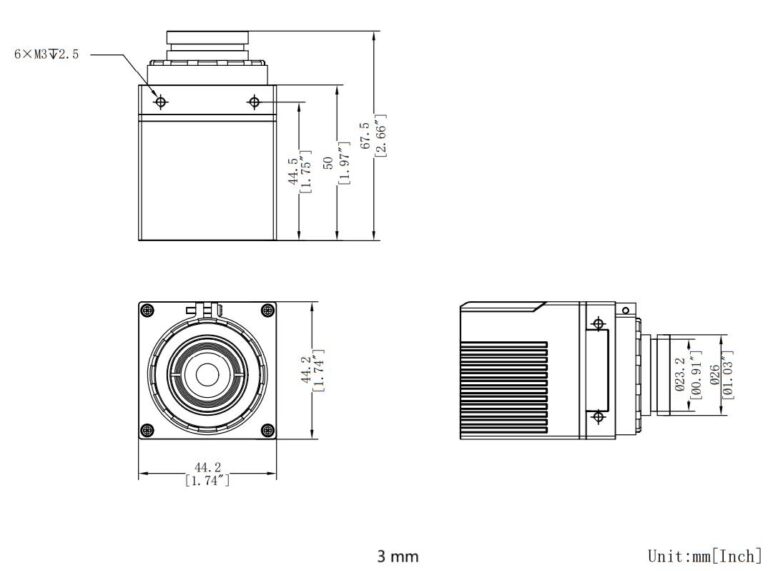

| Dimensions | 3 mm : 67.5 x 44.2 x 44.2 mm 4 mm : 71.8 x 44.2 x 44.2 mm 8 mm : 79.8 x 44.2 x 44.2 mm 10 mm : 69.8 x 44.2 x 44.2 mm 18 mm : 69.8 x 44.2 x 44.2 mm |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2038T-4/Q | 384x288, 4 mm, 60.4°x44.9°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | В наличии | from 2 200$ |
-
+
|
|
| HM-TD2038T-8/Q | 384x288, 8 mm, 34°x26°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | В наличии | from 2 200$ |
-
+
|
|
| HM-TD2038T-10/Q | 384x288, 10 mm, 27°x20.4°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | В наличии | from 2 200$ |
-
+
|
|
| HM-TD2038T-18/Q | 384x288, 18 mm, 13.7°x10.4°, 50fps, -20~650℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, USB output, Power in 10-30 VDC | В наличии | from 2 200$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO QF310 using the special form.
You can buy HIKMICRO QF310 in UAE at a price starting from 2200 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO QF310 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
