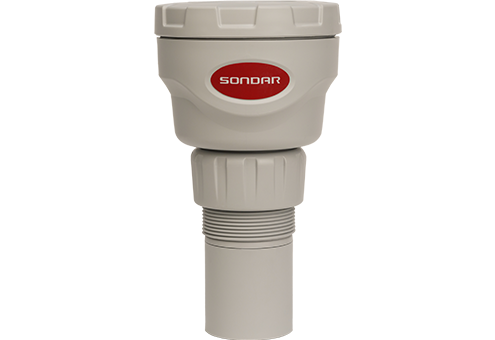

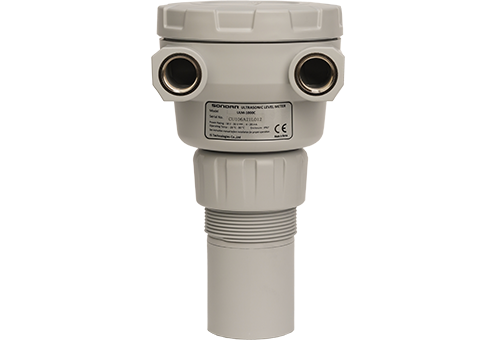

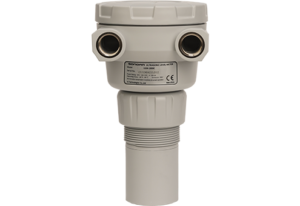

It is a non-contact ultrasonic water level gauge with an integrated sensor and controller design. The user-centered design makes it easy to operate and requires less installation time.
Made in South Korea. brand ISTEC, model ULM-1000C
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

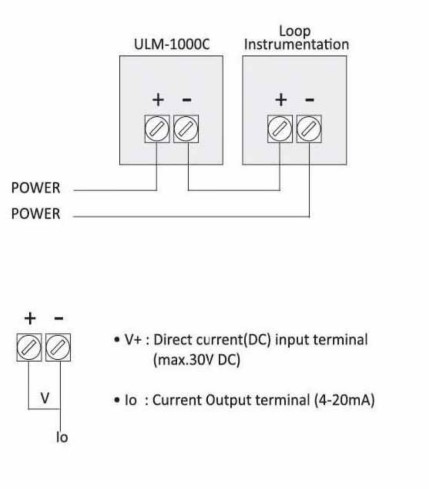

It offers a measuring range of up to 6 meters and operates on a 2-wire DC 24V loop-powered system. Designed with user convenience in mind, the ULM-1000C allows for easy operation and quick installation.
It also offers simplified maintenance, helping to reduce operational costs. Its optimized quality makes it suitable for a wide range of field applications, enabling efficient level monitoring and stable process operation on site.
Features

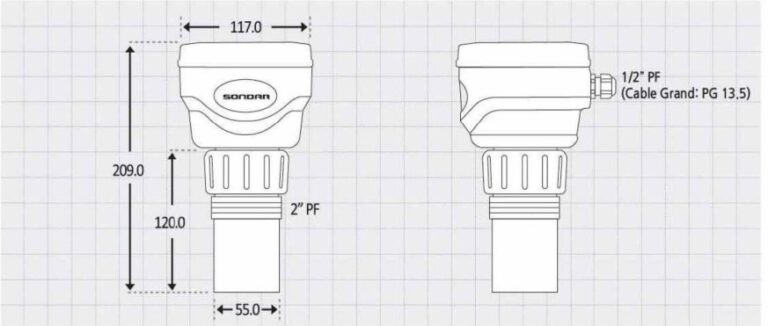

| Dimensions | 117(D)×209(H) mm |
| Connection size | 2″ PF |
| Weight | Approx. 1.5Kg |
| Housing material | Polypropylene |
| Sensor material | Polypropylene |
| Waterproof rating | IP67 |
| Operating temperature | -20℃~80℃ |
| Operating pressure | 2 Bar |
| Measuring range | 0.3~6m |
| Accuracy | 0.2% of measuring range |
| Resolution | 1mm |
| Beam angle | 8° |
| Response speed | 0.1m/min ~ 100m/min (adjustable) |
| Temperature compensation | Built-in temperature sensor |
| Analog output | 4~20mA into max 750Ω |

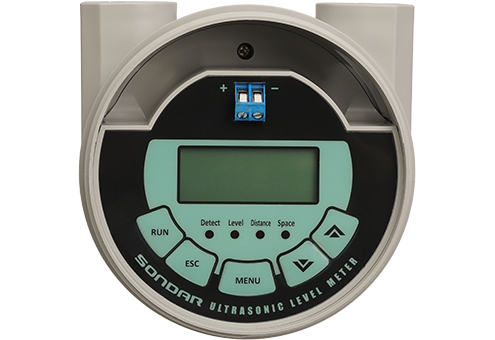

| Display method | 5 Digit Numeric LCD |
| Power supply | DC 20~30V |
| Current consumption | Below 0.021A |
| Certification | CE |
| ULM-1000C Ordering Code | |
|---|---|
| Measuring Distance | |
| 1 | 6 meters |
| Power Supply | |
| B | DC 12 to 30V (Standard) |
| Communication Type | |
| N | none (Standard) |
| 1 | HART (Planned) |
| 2 | Wireless HART (Planned) |
| Flange | |
| 0 | none |
| 1 | 80A |
| 2 | 100A |
| 3 | 150A |
| 4 | 200A |
| T | Custom value |
| Flange Standard | |
| D | DIN |
| A | ANSI |
| J | JIS |
| PVC Nut | |
| 2 | 2-1/2″ PVC Nut |
| ULM10C- | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC ULM-1000C using the special form.
You can buy ISTEC ULM-1000C in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ISTEC ULM-1000C price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
