UM1000series can be connected to Smart RTU(Remote Terminal Unit) for transmitting data to the server.
Features:

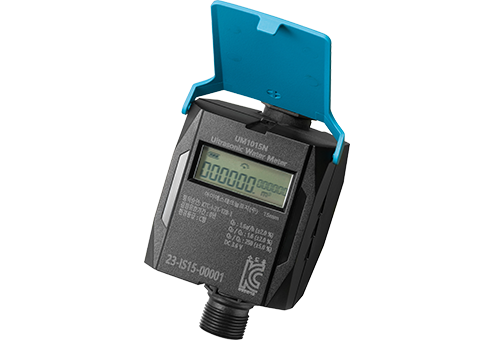

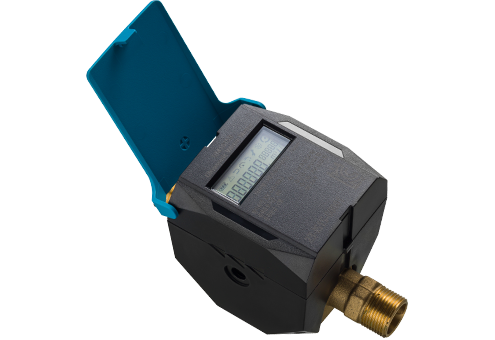

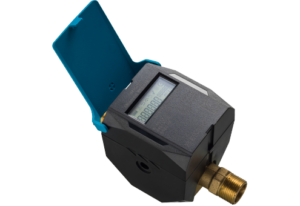

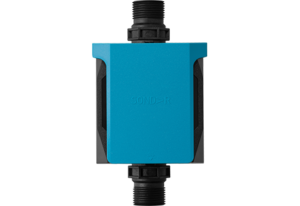

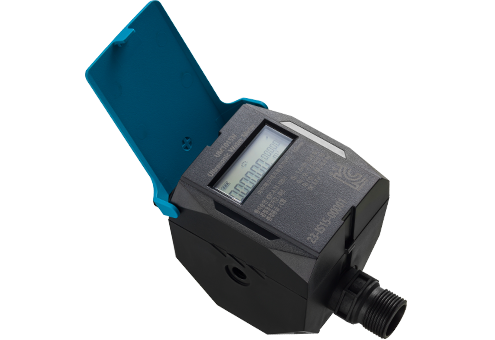

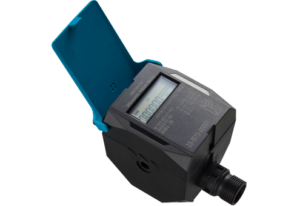

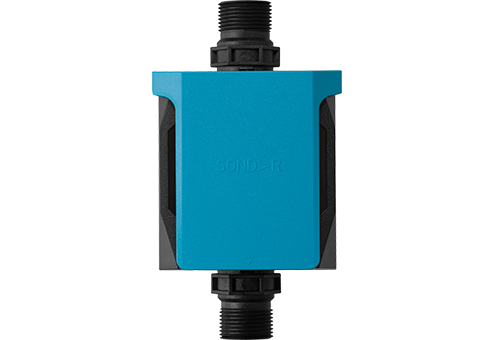

Made in South Korea. brand ISTEC, model UM1000
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Model | UM1015B/UM1015N | UM1020B/UM1020N |
| Nominal diameter | 5/8 in. (15 mm) | 3/4 in. (20 mm) |
| Length of spool | 165mm | 190mm |
| Minimum Test Flow Rate (GPM/m³/h) | 0.05 / 0.0114 | 0.05 / 0.0114 |
| Normal Test Flow Limits (GPM/m³/h) | 0.15~20.2 / 0.0341~4.54 | 0.15~30.3 / 0.0341~7.00 |
| Safe Maximum Operation Capacity (GPM/m³/h) | 20 / 4.54 | 30.8 / 7.00 |
| Maximum Allowable Head Loss at SMOC | 10psi | |
| Typical Pressure loss | 4.17psi @13 gpm | 2.27 psi @ 15gpm |
| Reading Method | UART | |
| Flow ratio (Q3/Q1) | 250/400 | |
| Accuracy | Min. Test Flow Rate – 3% | |
| Normal Test Flow Rate – 1/5% | ||
| Life span | Over 10 years | |

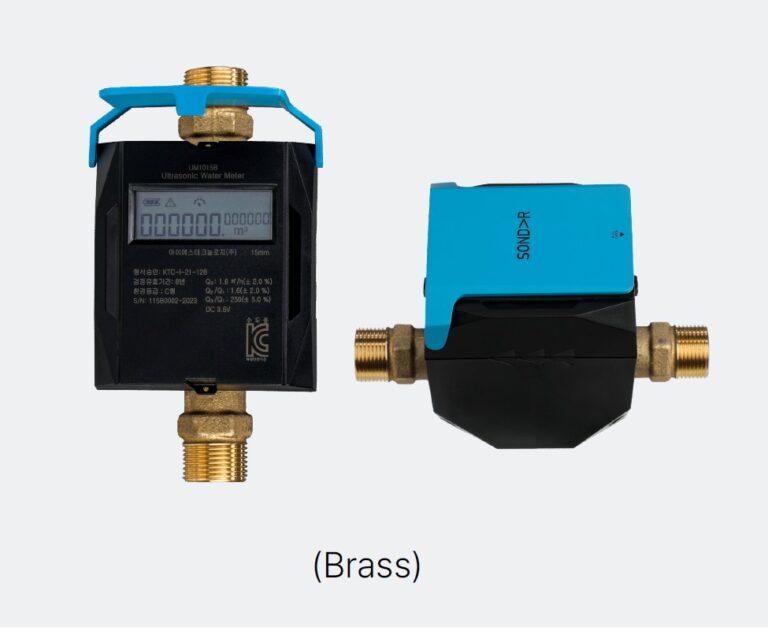

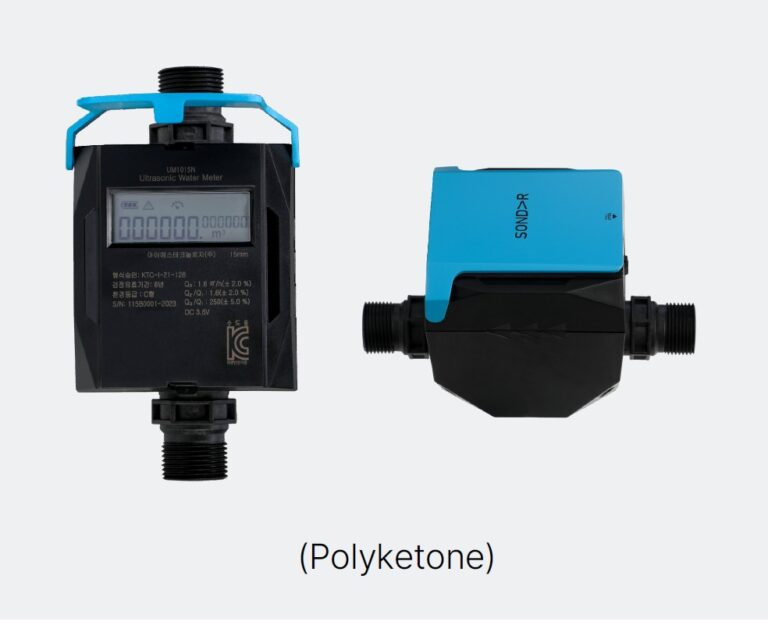

| Spool material | Polyketone / Lead-free brass | |
| MCU | Low-power 16bit MCU | |
| Temperature | -20°C ~ 60°C | |
| Water proof | IP68 | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC UM1000 using the special form.
You can buy ISTEC UM1000 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. ISTEC UM1000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
