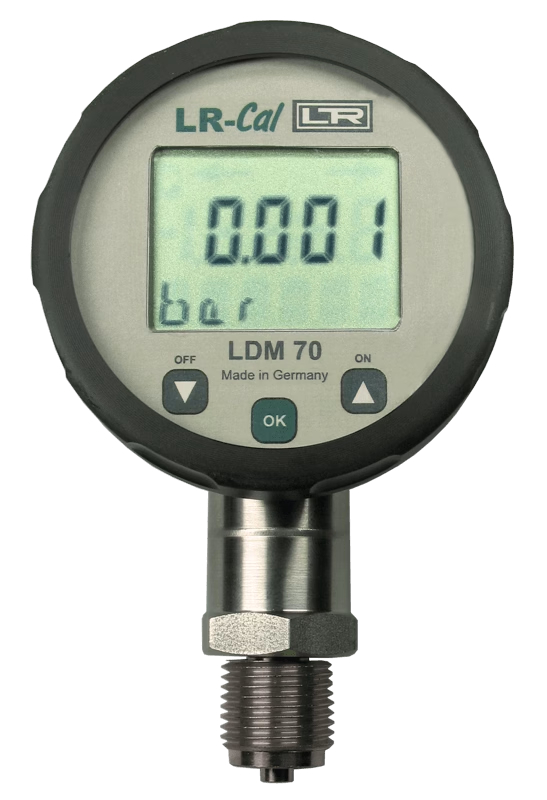

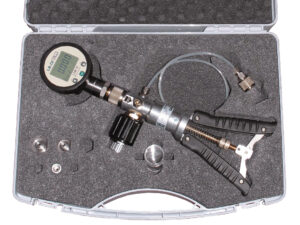

LR-Cal LDM 70-K50 Reference digital pressure gauge

Digital pressure gauge
Accuracy ±0,25% BFSL
0…400 mbar to 0…600 bar
Display rotatable
Battery operated (2 x ½-AA)

			int(26314)
NULL

Made in Germany. brand Leitenberger, model LDM 70-K50

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $291

Available

Download the questionnaire

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of LR-Cal LDM 70-K50

The display is via a clearly visible 4½-digit LCD display. The front cover with the display can be rotated, which ensures good readability even under unusual connection conditions. Operation is menu-driven via three membrane keys. In addition to displaying information on the measuring range, various pressure units and the number of decimal places can be set, as well as min. and max. values. Zero and span can be recalibrated, and the instrument can be reset to factory settings at any time.

The LR-Cal LDM 70-K50 digital fine-measurement manometer is ideally suited for on-site use together with our LR-Cal pressure test pumps. In conjunction with our LR-Cal pressure comparison test pumps (spindle pumps), it is also very suitable for operation in the laboratory and in the workshop.

Features:

Compact design (DS 70)
Battery operated
Accuracy ±0.25% BFSL (equivalent to ±0.5% FSO according to IEC 60770)
4½-digit LCD display (digit height 11 mm)
6-digit additional display to show the pressure unit
Pressure unit switchable: bar/mbar, psi, mWS, inHg, cmHg/mmHg, kPa/MPa (depending on measuring range)
Good vibration and shock resistance
Protection class IP 65
Rotatable display, thus good readability in all positions
Pressure ranges from 0…400 mbar to 0…600 bar, as well as vacuum, compound and absolute ranges integrated minimum and maximum value memory

Technical specifications of LR-Cal LDM 70-K50

Nominal case diameter	DS 70
Accuracy *)	±0.25% BFSL (equal to ±0.5% FS acc. to IEC 60770)
Pressure port	1/2″ BSP male or 1/4″ BSP male or 1/2″ NPT male or 1/4″ NPT male
Measuring rate	5 per second
Thermal effects (Offset and Span)	<=0.2% FS / 10 K
Temperature compensated range	-25…+85°C
Permissible temperatures	Medium: -20…+85°C; Ambient: -20…+70°C; Storage: -30…+80°C
Housing material	PA 6.6 Polycarbonate
Pressure port material	Stainless steel 1.4571 / 1.4435
Diaphragm material	Ceramic Al₂O₃ 96%
Gasket material	Ranges <=40 bar: FKM/EPDM; Ranges >40 bar: NBR
Display	LCD, visible size 40×30 mm, 4 1/2 digit 7 segment main display, digit height 11 mm, range ±19999; 6-digit 14 segment additional display, digit height 7.5 mm
Electromagnetic compatibility	Emission and immunity according to EN 61236
Mechanical stability	Vibration: 5 g RMS (20…2000 Hz); Shock: 100 g / 11 ms
Power supply	2 x 3.6 V 1/2 AA lithium batteries
Data memory	EEPROM (non-volatile)
Ingress protection	IP 65
Installation position	any (the instrument is calibrated in vertical position with pressure port down. If this position is changed on installation, there can be slight deviations in the zero-point.
Weight	300 g
A/D-converter resultion	10 bit
Operational life	>100 x 10⁶pressure cycles
Battery life time	approx. 5 years in standby mode

Expand Table

Prices for

Model	Description	Availability	Price	Qty
LDM70-K50-8400-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...0,4 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0000-6-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...0,6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0001-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...1 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0001-6-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...1,6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0002-5-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...2,5 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0004-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...4 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0006-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0010-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...10 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0016-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...16 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0025-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...25 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0040-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...40 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0060-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...60 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0100-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...100 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0160-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...160 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0250-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...250 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0400-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...400 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0600-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: 0...600 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0000-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...0 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-9000-6-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+0,6 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0001-5-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+1,5 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0003-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+3 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0005-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+5 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0009-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+9 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0015-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+15 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0024-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+24 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0039-0-G12	Digital Test Pressure Gauge, conn. 1/2" BSP male, range: -1...+39 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-8400-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...0,4 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0000-6-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...0,6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0001-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...1 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0001-6-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...1,6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0002-5-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...2,5 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0004-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...4 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0006-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...6 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0010-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...10 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0016-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...16 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0025-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...25 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0040-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...40 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0060-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...60 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0100-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...100 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0160-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...160 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0250-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...250 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0400-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...400 bar	Delivery time from 12 weeks	from 291$	- +
LDM70-K50-0600-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: 0...600 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0000-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...0 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-9000-6-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+0,6 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0001-5-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+1,5 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0003-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+3 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0005-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+5 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0009-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+9 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0015-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+15 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0024-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+24 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-0039-0-G14	Digital Test Pressure Gauge, conn. 1/4" BSP male, range: -1...+39 bar	Delivery time from 12 weeks	from 311$	- +
LDM70-K50-8400-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...0,4 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0000-6-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...0,6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0001-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...1 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0001-6-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...1,6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0002-5-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...2,5 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0004-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...4 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0006-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0010-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...10 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0016-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...16 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0025-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...25 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0040-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...40 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0060-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...60 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0100-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...100 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0160-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...160 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0250-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...250 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0400-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...400 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0600-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: 0...600 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0000-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...0 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-9000-6-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+0,6 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0001-5-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+1,5 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0003-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+3 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0005-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+5 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0009-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+9 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0015-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+15 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0024-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+24 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0039-0-N12	Digital Test Pressure Gauge, conn. 1/2" NPT male, range: -1...+39 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-8400-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...0,4 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0000-6-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...0,6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0001-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...1 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0001-6-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...1,6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0002-5-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...2,5 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0004-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...4 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0006-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...6 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0010-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...10 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0016-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...16 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0025-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...25 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0040-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...40 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0060-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...60 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0100-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...100 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0160-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...160 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0250-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...250 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0400-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...400 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0600-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: 0...600 bar	Delivery time from 12 weeks	from 298$	- +
LDM70-K50-0000-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...0 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-9000-6-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+0,6 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0001-5-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+1,5 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0003-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+3 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0005-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+5 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0009-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+9 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0015-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+15 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0024-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+24 bar	Delivery time from 12 weeks	from 318$	- +
LDM70-K50-0039-0-N14	Digital Test Pressure Gauge, conn. 1/4" NPT male, range: -1...+39 bar	Delivery time from 12 weeks	from 318$	- +

Expand Table

User Guide and Instruction manual for Leitenberger LDM 70-K50

You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LDM 70-K50 using the special form.
