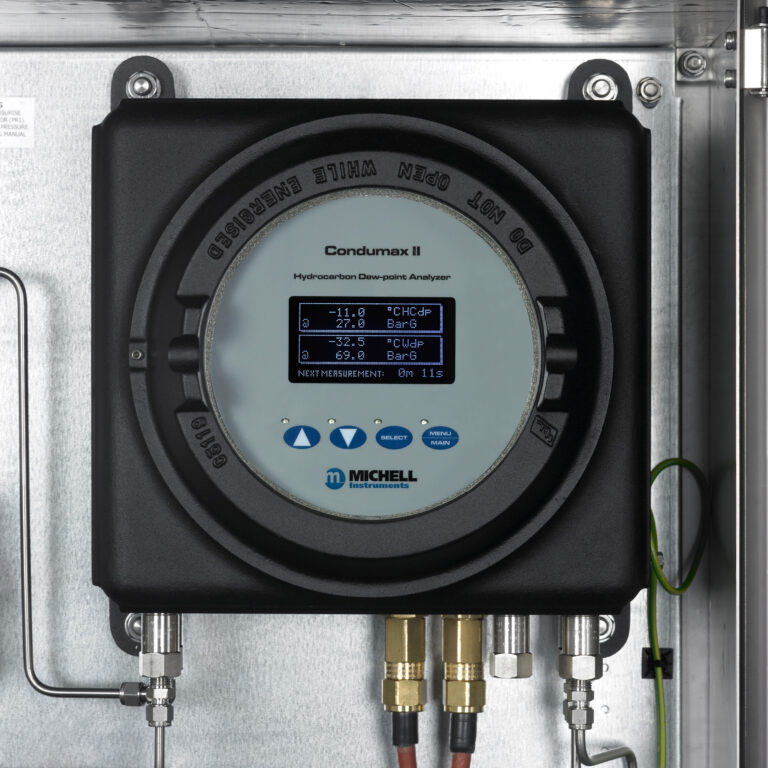

The Condumax II hydrocarbon and water dew-point analyzer provides continuous, automatic measurements of these two critical parameters of natural gas quality. It uses the ‘Dark Spot’ direct chilled-mirror technique to measure hydrocarbon dew point with high accuracy and long-term reliability. Water dew point measurements are provided by Michell’s Ceramic Metal-Oxide Moisture Sensor.

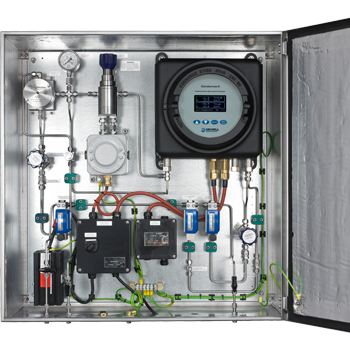

The Condumax II is housed in a compact explosion-proof enclosure. Both indoor and outdoor sampling systems are available as standard providing comprehensive sample conditioning natural gas at up to 138 barg. For specific applications and requirements, we offer a custom engineering design service.
Condumax II is suitable for use with natural gas containing up to 20 % hydrogen with no further modification required.
Applications
| Hydrocarbon Dew-Point Measurement | |
| Measuring Technique | Dark Spot™ fixed sample analysis. Direct photo-detection of hydrocarbon condensate at hydrocarbon dew-point temperature |
| Sensor Cooling | Automatic via 3-stage Peltier effect electronic cooler under adaptive control |
| Maximum Range | Up to Δ -55K measurement depression from Main Unit operating temperature |
| Accuracy | ±0.5 °C hydrocarbon dew point (single and multiple condensable component analysis) |
| Sample Flow | 0.03 m³/hr (0.5 Nl/min) – alarm standard |
| Measurement Frequency | 6 cycles/hour (recommended) 12 cycles/hour (maximum) |
| Operating Pressure | 15…100 barg (218…1450 psig) |
| Water Dew-Point Measurement (optional) | |
| Measuring Technique | Michell ceramic metal-oxide moisture sensor |
| Units – Moisture Content | °C and °F water dew point; lbs/MMscf; mg/m³, ppmV |
| Resolution | 0.1 °C, 0.1 °F |
| Range | Calibrated from -100 to +20 °C (-148 to +68 °F) dew point |
| Accuracy | ±1 °C (±1.8 °F) from -59…+20 °C (-74.2…+68 °F) dew point ±2 °C (±3.6 °F) from -100…-60 °C (-148…-76 °F) dew point |
| Sample Flow | 1 Nl/min (0.06 m³/hr) – alarm standard |
| Temperature Coefficient | Algorithm compensation (-20…+50 °C) |
| Operating Pressure | 30…138 barg (435…2002 psig) |
| Pressure Measurement(s) | |
| Units | MPa, barg, psig |
| Resolution | 0.1 MPa and barg, 1 psig |
| Range | HC dew point: 0…100 barg (0…1450 psig) Water dew point: 0…200 barg (0…2900 psig) |
| Accuracy | ±0.25% FS |
| Hydrocarbon Dew-Point Analyzer | |
| Resolution | Hydrocarbon and water dew point: 0.1 °C (0.18 °F) |
| Sample Gas Supply | Natural gas up to 100 barg (1450 psig), pressure regulated in sampling system |
| Enclosure | Exd cast enclosure with removable glass window viewing port. Internally heated for condensation protection |
| Sample Gas Connections | 1/8” NPT(F) for both hydrocarbon and water dew-point channels; Sampling system: 6mm OD or 1/4” OD |
| Operating Environment | Indoors/Outdoors -20…+50 °C (-4…+122 °F) Max 95 %rh |
| Power Supply | 90…260 V AC 50/60 Hz, 125 W Main Unit; 300 W c/w indoor sampling system; 400 W c/w outdoor sampling system |
| Weight | Main Unit 22.5 kg (49.6 lbs) ~60 kg (132.3 lbs) c/w Sampling system (indoor) ~75 kg (165.3 lbs) c/w Sampling system (outdoor) |
| Integrated Display/Keyboard | Touch screen with vacuum fluorescent display |
| Outputs | Modbus RTU, RS485 @ 9600 baud rate. Two 4…20 mA linear (non-isolated) outputs, user configurable for any combination of dew point or pressure parameters |
| Alarms | Process and analyzer status via software register and display annotation. Integrated low flow alarms for each sample flow. Analyzer status fault flag 23 mA on mA output 1 |
| Certification | |
| Hazardous Area Certification | ATEX/UKCA: II 2 G Ex db IIB+H2 T3 Gb Tamb -40 °C…+60 °C IECEx: Ex db IIB+H2 T3 Gb Tamb -40 °C…+60 °C cQPSus: Class I, Division 1, Groups B, C & D T3 Tamb -25 °C…+60 °C Class I, Zone 1 Ex db IIB+H2 T3 Gb AEx db IIB+H2 T3 Gb Tamb -40 °C…+60 °C |
| Additional | TRCU 012 (EAC), PESO (India), NEPSI (China), Ukraine Ex |
| Pattern Approval | GOST-R, GOST-K, GOST-U |
