Designed for Easy Mobile Hydrocarbon Dew-Point Checks
Made in United Kingdom. brand Michell, model Condumax II Transportable
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

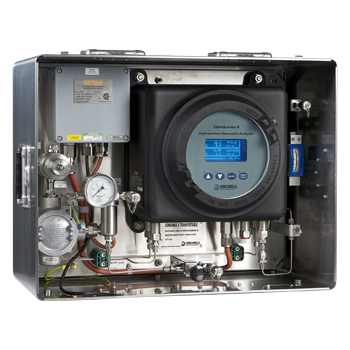

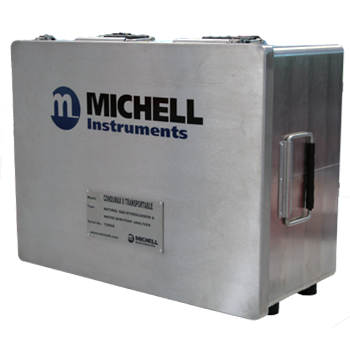

Transportable hydrocarbon dew-point analyzer system for field-measurements in natural gas. Suitable for IEC Zone 1 or 2 hazardous area, NEC Class I, Division 1 Groups B, C, D.
A complete transportable natural gas dew-point analysis system for field spot-check measurements. Periodic online operation when located in a temperature maintained analyzer house. Measurements and functionality are instantly accessible through integrated alphanumeric display and touch-glass HMI interface including log of dew-point readings for operator review.
Applications
| Hydrocarbon Dew-Point Measurement | |
| Measuring Technique | Dark Spot™ fixed sample analysis. Direct photo-detection of hydrocarbon condensate at hydrocarbon dew-point temperature |
| Sensor Cooling | Automatic via 3-stage Peltier effect electronic cooler under adaptive control |
| Maximum Range | Up to Δ -55K measurement depression from Main Unit operating temperature |
| Accuracy | ±0.5 °C hydrocarbon dew point (single and multiple condensable component analysis) |
| Sample Flow | 0.03 m³/hr (0.5 Nl/min) – alarm standard |
| Measurement Frequency | 6 cycles/hour (recommended) 12 cycles/hour (maximum) |
| Operating Pressure | 15…100 barg (218…1450 psig) |
| Water Dew-Point Measurement (optional) | |
| Measuring Technique | Michell ceramic metal-oxide moisture sensor |
| Units – Moisture Content | °C and °F water dew point; lbs/MMscf; mg/m³, ppmV |
| Resolution | 0.1 °C, 0.1 °F |
| Range | Calibrated from -100 to +20 °C (-148 to +68 °F) dew point |
| Accuracy | ±1 °C (±1.8 °F) from -59…+20 °C (-74.2…+68 °F) dew point ±2 °C (±3.6 °F) from -100…-60 °C (-148…-76 °F) dew point |
| Sample Flow | 1 Nl/min (0.06 m³/hr) – alarm standard |
| Temperature Coefficient | Algorithm compensation (-20…+50 °C) |
| Operating Pressure | 30…138 barg (435…2002 psig) |
| Pressure Measurement(s) | |
| Units | MPa, barg, psig |
| Resolution | 0.1 MPa and barg, 1 psig |
| Range | HC dew point: 0…100 barg (0…1450 psig) Water dew point: 0…200 barg (0…2900 psig) |
| Accuracy | ±0.25% FS |
| Hydrocarbon Dew-Point Analyzer | |
| Resolution | Hydrocarbon and water dew point: 0.1 °C (0.18 °F) |
| Sample Gas Supply | Natural gas up to 100 barg (1450 psig), pressure regulated in sampling system |
| Enclosure | Exd cast enclosure with removable glass window viewing port. Internally heated for condensation protection |
| Sample Gas Connections | 1/8” NPT(F) for both hydrocarbon and water dew-point channels; Sampling system: 6mm OD or 1/4” OD |
| Operating Environment | Indoors/Outdoors -20…+50 °C (-4…+122 °F) Max 95 %rh |
| Power Supply | 90…260 V AC 50/60 Hz, 125 W Main Unit; 300 W c/w indoor sampling system; 400 W c/w outdoor sampling system |
| Weight | Main Unit 22.5 kg (49.6 lbs) ~60 kg (132.3 lbs) c/w Sampling system (indoor) ~75 kg (165.3 lbs) c/w Sampling system (outdoor) |
| Integrated Display/Keyboard | Touch screen with vacuum fluorescent display |
| Outputs | Modbus RTU, RS485 @ 9600 baud rate. Two 4…20 mA linear (non-isolated) outputs, user configurable for any combination of dew point or pressure parameters |
| Alarms | Process and analyzer status via software register and display annotation. Integrated low flow alarms for each sample flow. Analyzer status fault flag 23 mA on mA output 1 |
| Certification | |
| Hazardous Area Certification | ATEX/UKCA: II 2 G Ex db IIB+H2 T3 Gb Tamb -40 °C…+60 °C IECEx: Ex db IIB+H2 T3 Gb Tamb -40 °C…+60 °C cQPSus: Class I, Division 1, Groups B, C & D T3 Tamb -25 °C…+60 °C Class I, Zone 1 Ex db IIB+H2 T3 Gb AEx db IIB+H2 T3 Gb Tamb -40 °C…+60 °C |
| Additional | TRCU 012 (EAC), PESO (India), NEPSI (China), Ukraine Ex |
| Pattern Approval | GOST-R, GOST-K, GOST-U |
You can request the necessary certificates, documentation, instructions and user guide for Michell Condumax II Transportable using the special form.
You can buy Michell Condumax II Transportable in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Condumax II Transportable price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
