For Use with Easidew I.S. and Easidew PRO I.S.
Made in United Kingdom. brand Michell, model I.S. Field Display
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

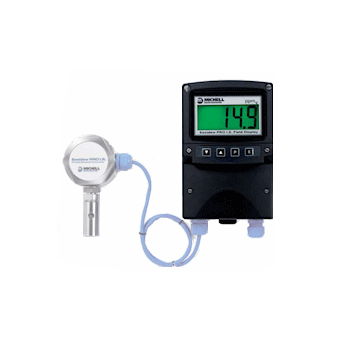

The Intrinsically Safe Field Display is a 4-digit loop-powered local monitor for the Easidew PRO I.S. and Easidew I.S. transmitters. It is certified with ATEX, IECEx, UKCA and FM and housed in an IP66 enclosure with a terminal compartment for wiring. The measurement unit can be labelled as ppmV, ppm W,
°C dp or °F dp.
| Input | |
| Current | 4 to 20mA |
| Voltage drop | Less than 1.2V at 20°C (68°F) Less than 1.3V at –40°C (-40°F) Less than 5V with optional loop powered backlight |
| Display | |
| Type | Liquid crystal, non-multiplexed 4 digits 34mm high |
| Resolution | Dewpoint: 0.1 °C/°F ppmV/ppmW: 1 for 1000 – 9999 0.1 for 100.0 – 999.9 0.01 for 10.00 – 99.99 0.001 for 0.000 – 9.999 |
| Span | Adjustable between 0 & ±9999 with a 20mA input |
| Zero | Adjustable between 0 & ±9999 with 4mA input |
| Over-range/Under-range | 9999 or –9999 with all decimal points flashing |
| Certification (Display Only) | |
| ATEX | Group II Category 1GD Ex ia IIC T5 Ga Ta = -40 to +70°C |
| IECEx | Ex ia IIC T5 Ga Tamb = -40 to 70°C |
| FM | CL I, II, III: Div 1: GP A, B, C, D, E & G T4 @ 70°C (158°F) |
| Environmental | |
| Operating temperature | -40 to +70°C (-40 to +158°F) -40 to +60°C (-40 to +140°F) for FM version |
| Storage temperature | -40 to +85°C (-40 to +185°F) |
| Humidity | 0 to 95% at 40°C (104°F) non-condensing |
| Enclosure | IP66 |
| Mechanical | |
| Terminals | Screw clamp for 0.5 to 1.5mm² conductors |
| Weight | 1.7kg (3.75 lbs) |
| Accessories | |
| Backlight | Green, loop powered. Voltage drop of indicator plus backlight less than 5V |
| Alarms | Two alarm outputs each of which may be independently configured. Isolated solid state switch complying with requirements for simple apparatus. Ron 5Ω + 0.7V max Roff 1MΩ min |
| External keypad | Membrane keypad enables indicator to be configured without removing cover. |
| Stainless steel legend plate | Etched legend plate with tag number or application attached to front of the instrument |
| Pipe mount kit | Stainless steel bracket secured by two stainless steel worm drive hose clips for 60 to 80mm outside diameter vertical or horizontal pipe |
You can request the necessary certificates, documentation, instructions and user guide for Michell I.S. Field Display using the special form.
You can buy Michell I.S. Field Display in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell I.S. Field Display price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Dew Point Sensors & Transmitters
