Dew Point Meter for Moisture Measurement with Configurable Display
Made in United Kingdom. brand Michell, model Easidew Online
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

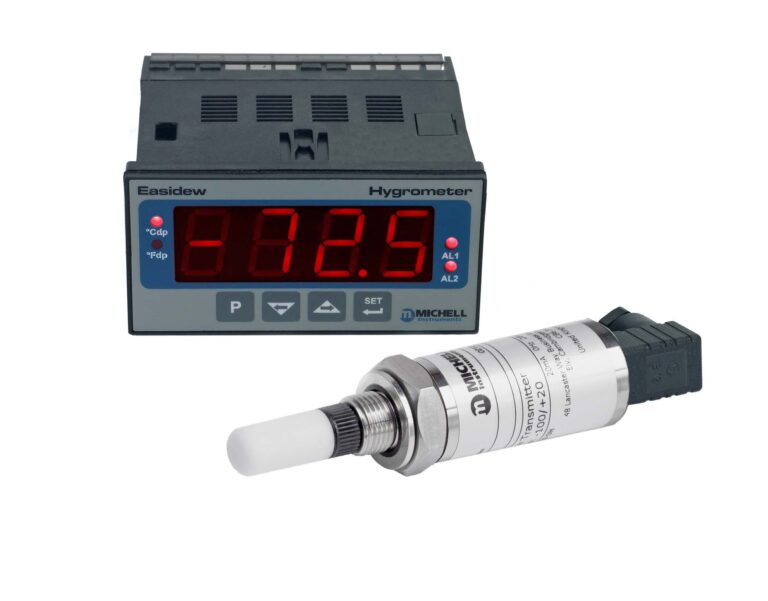

Easy to install and maintain, the Easidew Online Hygrometer measures and displays dew point and moisture content for use in a wide range of moisture applications. The Easidew Online display provides analog, digital, and dual relay alarm outputs. This hygrometer is compatible with the entire Easidew Transmitter range to provide local readings as well as re-transmitted control signal.
Applications
| Performance Specifications | |
| Measurement Range | -110 to +20°C (-166 to +68°F) dew point; -100 to +20°C (-148 to 68°F) dew point; non-standard dew-point ranges and ppmV ranges available on request |
| Accuracy | ±2°C (±3.6°F) dew point* |
| Response Time | 5 mins to T95 (dry to wet) |
| Repeatability | 0.5°C (0.9°F) dew point |
| Sensor Calibration | Traceable 13-point calibration certificate |
| Electrical Specifications | |
| Online Output Signals | 4–20 mA or 0–20 mA; Modbus RTU over RS485; dual programmable relay alarms |
| Online Output | Dew point or moisture content |
| Maximum Analog Output Scaled Range | Dew point: -110 up to +20°C (-166 up to +68°F); Moisture content in gas: 0 up to 3000 ppmV |
| Online Supply Voltage | AC: 85 to 264V; DC: 24V |
| Online Current Consumption | 60 mA maximum |
| Electrical Safety | EN61010-1 |
| Operating Specifications | |
| Operating Temperature | Sensor: -40 to +60°C (-40 to +140°F); Monitor: 0 to +50°C (+32 to +122°F) |
| Compensated Temperature Range | Sensor: -20 to +50°C (-4 to +122°F); Monitor: not applicable |
| Storage Temperature | Sensor: -40 to +60°C (-40 to +140°F); Monitor: -10 to +60°C (+14 to +140°F) |
| Operating Pressure | 52.5 MPa (525 barg / 7614 psig) maximum |
| Sensor Flow Rate | 1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion |
| Mechanical Specifications | |
| Ingress Protection | Sensor: IP66 in accordance with standard BS EN 60529:1992+A2:2013; NEMA 4 protection in accordance with standard NEMA 250–2014 Monitor: IP65 (NEMA 4X) front panel only |
| Sensor Oxygen Service | Optional: Cleaned for enriched oxygen service |
| Sensor Housing Material | 316 stainless steel |
| Dimensions | Sensor: L=132mm x ø45mm / L=5.2” x ø1.77” (with connector cable) Monitor: 1/8 DIN Case, 96 x 48 x 85mm / 3.78 x 1.89 x 3.35” (w x h x d) |
| Filter (Sensor Protection) | Standard: HDPE <10µm Optional: 316 stainless steel sintered guard <80µm |
| Sensor Process Connection | 5/8” – 18 UNF |
| KF40 Flange Accessories | Flange for 5/8” 18 UNF process connections |
| Sensor Weight | 150 g (5.29 oz) |
| Sensor Electrical Connections | MiniDIN 43650 form C |
| Online Sensor Cable | 0.8, 2, 5, 10 meter (2.62, 6.5, 16.4, 32.81 ft) connector/cable available |
| Sensor Diagnostic Conditions (factory programmed) | Sensor fault: 23 mA Under-range dew point: 4 mA Over-range dew point: 20 mA |
NOTES * Over Compensated Temperature Range
You can request the necessary certificates, documentation, instructions and user guide for Michell Easidew Online using the special form.
You can buy Michell Easidew Online in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Easidew Online price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Dew Point Sensors & Transmitters
