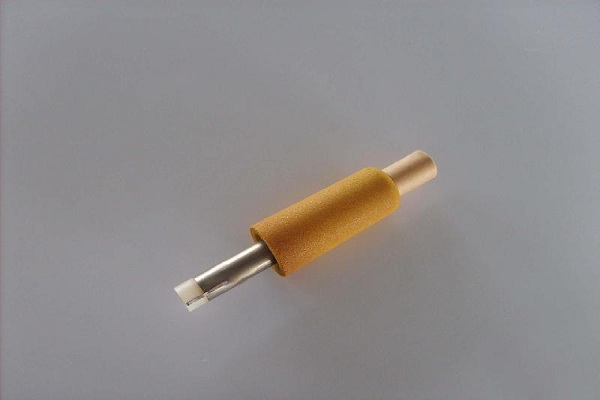

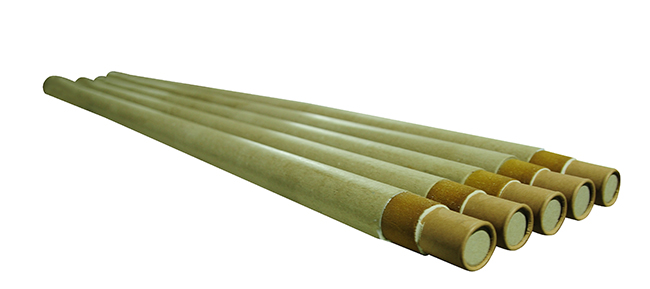

Oxygen sensor is a kind of metallurgy detection probe which is designed to measure the oxygen content and temperature of the molten steel fast, accurately and directly.
Made in Russia. brand MIRKIP, model OS
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $22
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Used for primary melting furnace，LF and RH furnaces and so on, oxygen probes measure oxygen activity of the melted steel and the oxygen activity of the molten steel in the treating process, which can guarantee the deoxidizer addition, shorten the refining time, help to develop new varieties, improve technology, and promote steel purity.
Types of sensor and range of application:
Oxygen sensor has three types:
The first one is used to measure the temperature and high oxygen content of molten steel in converter, electric furnace, refining furnace. The second one is used to measure the temperature and low oxygen content of molten steel in LF, RH, DH, tundish, etc. and also quickly measure acid soluble aluminum. The third one is suitable for the steel smelting process which require the ultra-low oxygen content.
Principle:
“Solid dielectric concentration cell oxygen-content test technology” is applied in oxygen sensor, which allows to measure the temperature and oxygen content of melted steel at the same time. Oxygen sensor consists of oxygen cell and thermocouple. Oxygen content can be calculated from the measured oxygen potential and temperature of the melted steel.
Features:
Oxygen sensor for high ppm
| Working condition: | 1400℃-1760℃ |
| Measuring range: | 50ppm~1000ppm |
| Measurement resolution: | 0.1mv |
| Measurement accuracy: | 0~5mv |
| Oxygen potential: | -300mv~+300mv |
| Response time: | 8s-10s |
| Measurement efficiency: | 98% |
Measurement efficiency is usually above 98%, but it is related to operations by the workers; if misused, measurement efficiency will be reduced.
Note: If oxygen activity in molten steel is above 50ppm, oxygen sensor for high ppm is suggested.
Oxygen sensor for low ppm
| Working condition: | 1500℃-1760℃ |
| Measuring range: | 1ppm~1000ppm |
| Measurement resolution: | 0.1mv |
| Measurement accuracy: | 0~3mv |
| Oxygen potential: | -300mv~+300mv |
| Response time: | 8s-10s |
| Measurement efficiency: | 98% |
Measurement efficiency is usually above 98%, but it is related to operations by the workers; if misused, measurement efficiency will be reduced.
Note: If oxygen activity in molten steel is between 1ppm and 50ppm, oxygen sensor for low ppm is suggested.
Oxygen sensor for ultra-low ppm
| Working condition: | 1500℃-1760℃ |
| Measuring range: | 1ppm~1000ppm |
| Measurement resolution: | 0.1mv |
| Measurement accuracy: | 0~1mv |
| Oxygen potential: | -300mv~+300mv |
| Response time: | 8s-10s |
| Measurement efficiency: | 98% |
Measurement efficiency is usually above 98%, but it is related to the operations by the workers; if misused, measurement efficiency will be reduced.
Note: If oxygen activity in molten steel is between 1ppm and 5ppm, oxygen sensor for ultra-low ppm is suggested. If oxygen activity is between 1ppm and 5ppm, oxygen sensor for ultra-low ppm is more accurate than oxygen sensor for low ppm.
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP OS using the special form.
You can buy MIRKIP OS in UAE at a price starting from 22 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP OS price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
