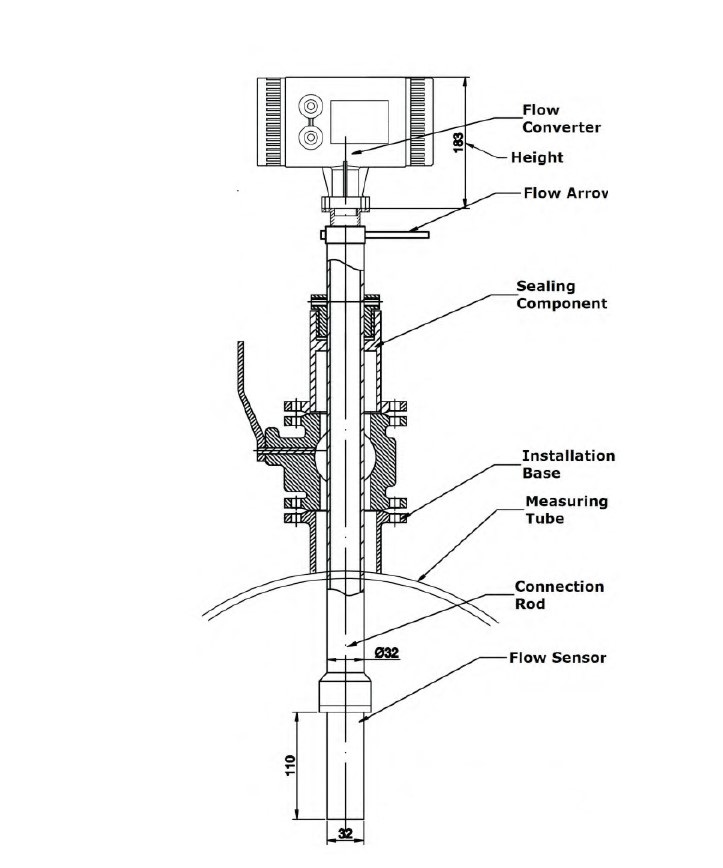

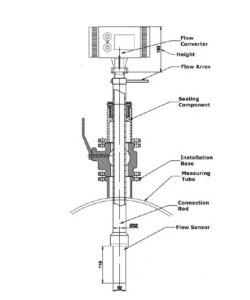

QTLD/C insertion electromagnetic flow meter is used to measure the flow of conductive liquids. It is available for use in pipes ranging in size from DN100 to DN3000 It can configure thread or flange ball valve to be hot-tapped, which allows sensor to be installed and retracted from process piping without shutting down the process.
Made in China. brand Q&T Instrument, model QTLD/C
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
QTLD/C is an economic alternative when installed in large pipeline no matter in cost and delivery compared with full bore magnetic flow meter.
Applications:
Features
| Size | DN100-DN3000 (4″-120″ ) |
| Accuracy | ±1.5% of reading at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |

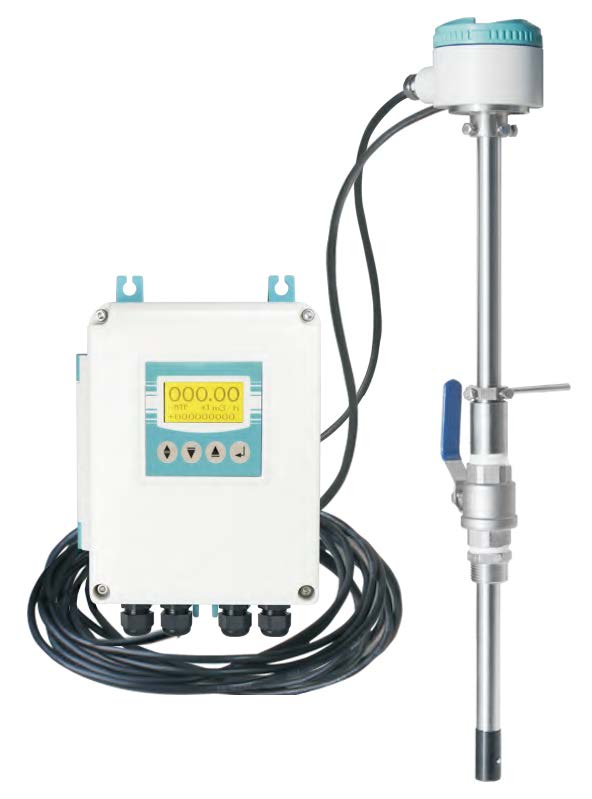

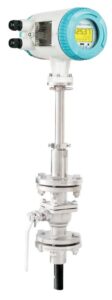

| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Transmitter: IP65 standard, IP67 optional |
| Sensor: IP65 standard, IP68 (submersible, remote type only) | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinoiridium |
| Power Supply | 85~250 VAC (50/60 Hz), 8~36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20 mA ( load resistor 0~750Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | -20℃~80℃ |

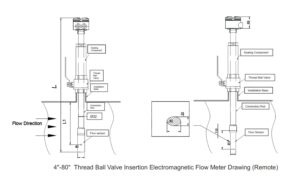

| Process connection | G2″ thread ball valve |

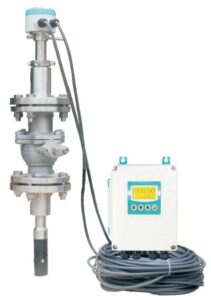

| DN50 flange ball valve | |
| Sensor Material | Probe material: ABS standard |
| Valve: SS316 | |
| Pole: SS304 | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | 1.6 Mpa |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h,t/s, t/m, t/h |
| Language | English, Chinese, Italian, Portuguese, French, Spanish, Korean |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/C using the special form.
