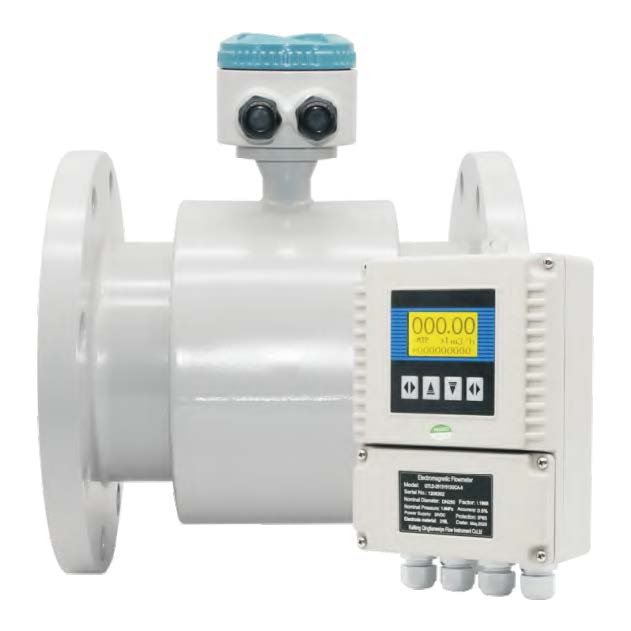

Noise is common in process fluids containing solid particulates, and it can influence the measurement, this slurry magnetic flow meter adopts square wave excitation and 25Hz/30Hz high excitation, which can eliminate interfacerence between the sharp wave noise generated by solid particles, ensures accurate measurement of viscous medium.
Made in China. brand Q&T Instrument, model QTLD/J
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Applications:
Cement slurry, sludge, gypsum slurry, paper pulp, juice, syrup, ore slurry, coal slurry, etc.
Features
| Size | DN3-DN3000 (1/8″-120″ ) |
| Accuracy | ±0.5% of reading at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |
| Excitation current | 125 mA, 187 mA, 250 mA |
| Excitation Frequency | 25 Hz/30 Hz |
| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Transmitter: IP65 standard, IP67 optional |
| Sensor: IP65 standard, IP68 (submersible, only available for remote type) | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinum-iridium |
| Power Supply | 85~250 VAC (50/60 Hz), 20~36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20mA ( load resistor 0~750Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃ Remote: -20℃~120℃ |
| Liner Material | PTFE (-20℃~150℃, DN15-DN1600) |
| FEP (-20℃~120℃, DN15-DN1800) | |
| PFA (-20℃~160℃, DN15-DN800) | |
| Polyurethane (-10℃~60℃, DN40-DN1600) | |
| Neoprene (-10℃~80℃, DN40-DN3000) | |
| Hard Rubber （-10℃~80℃, DN 40-DN3000） | |
| Ceramic (-20℃~180℃, DN15-DN200) | |
| Sensor Material | Measuring tube: SS304 |
| Flange & housing: carbon steel (standard), SS304 / SS316 optional | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | Flange DIN JIS ANSI PN10 / PN16 / PN25 / Pn40 10K / 20K / 30 K 150# / 300# / 600# |
| Insertion, tri-clamp wafer, thread: PN16 | |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm,self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
| Language | English, Chinese |
