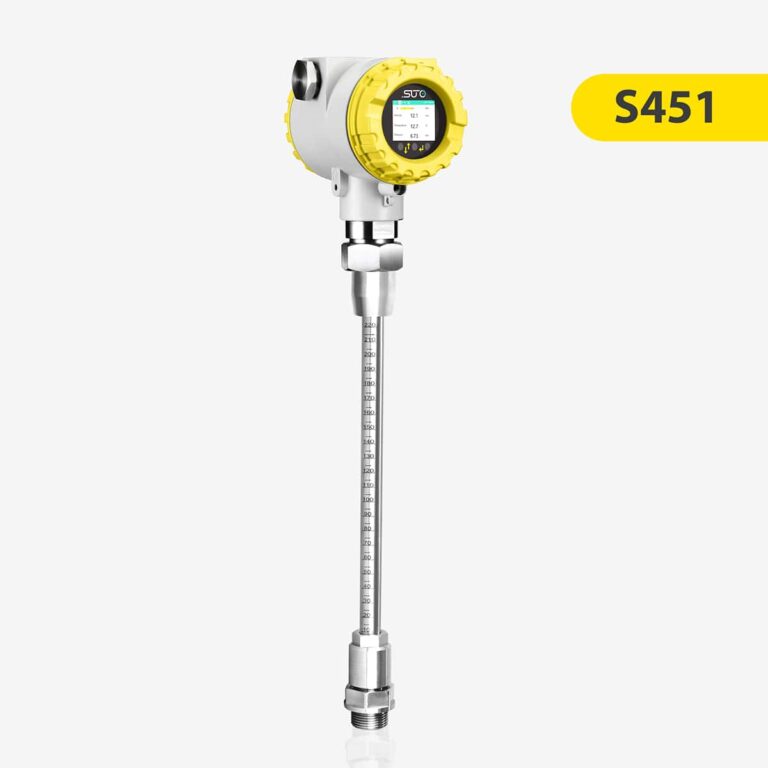

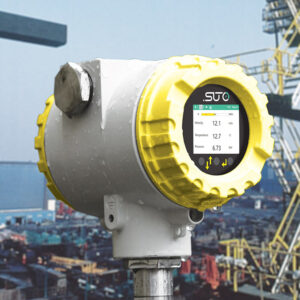

The S451 Compressed Air Flow Meter is a robust and highly accurate thermal mass flow meter designed specifically for heavy-duty applications and hazardous environments. With its advanced insertion-type sensor, the S451 is perfect for monitoring compressed air and gas flow in a wide range of industrial settings, including those requiring explosion-proof equipment.
Made in Germany. brand SUTO, model S451
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $6 060
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S451 Compressed Air Flow Meter is a reliable and highly accurate thermal mass flow meter designed specifically for use in harsh operating conditions and explosive environments. The S451’s advanced built-in sensor makes it ideal for monitoring compressed air and gas flow in a wide range of industrial applications, including those requiring explosion-proof equipment.
Key Features:
Specifications:

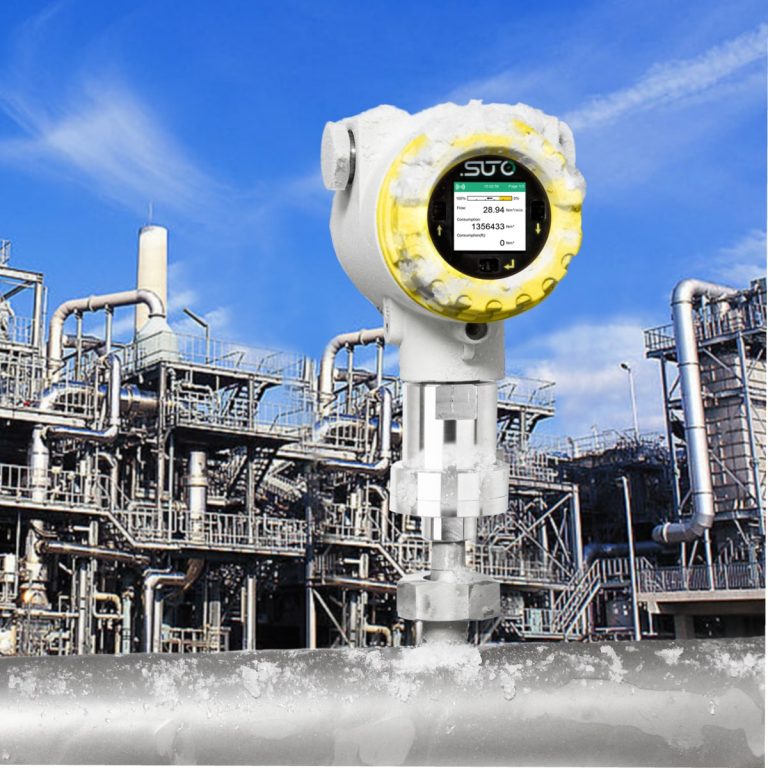

The S451 is designed to perform in demanding environments, making it ideal for a variety of industrial applications:
| Measurement | |
| Flow | |
| Accuracy | ±(1.5 % of reading + 0.3 % full scale) |
| Selectable units | m³/h, m³/min, l/min, l/s, cfm, kg/h, kg/min, kg/s |
| Repeatability | 0.25 % o.RDG |

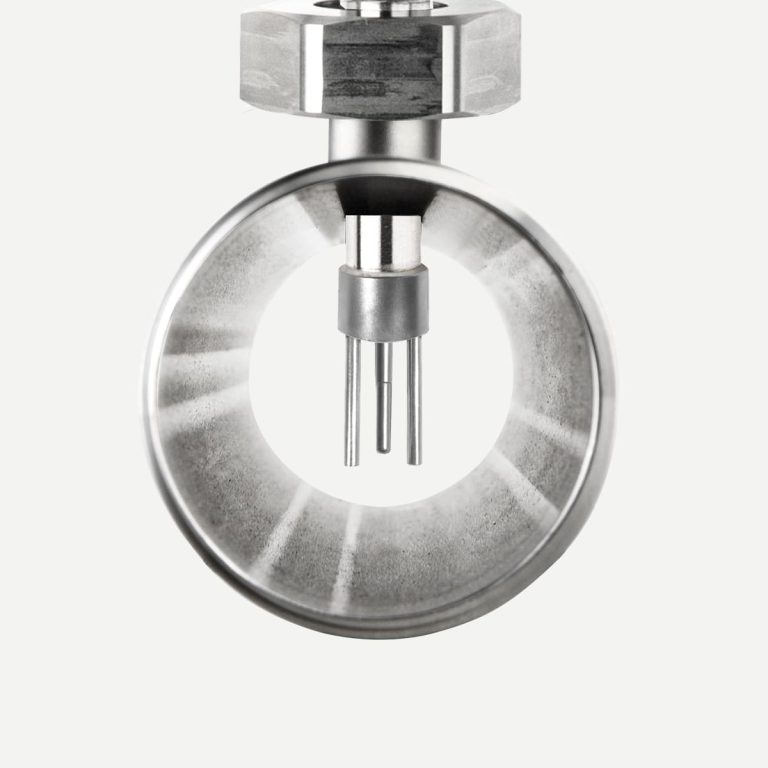

| Sensor | Thermal mass flow sensor |
| Sampling rate | 3 samples / sec |
| Turn-down ratio | 200:1 |
| Response time (t90) | 0.5 sec |
| Consumption | |
| Selectable units | m³, ft³, t, lb, l, kg |
| Pressure | |
| Accuracy | 0.5 % FS |
| Selectable units | bar, psi, kPa, MPa |
| Measuring range | 0 … 0.2 MPa (a) or 0 … 5.0 MPa (g) |
| Sensor | Piezzo resistive sensor |
| Temperature | |
| Accuracy | 0.5 °C |
| Selectable units | °C, °F |
| Measuring range | -40 … +120 °C |
| Sensor | Pt1000 |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217), 0 °C 1013 mbar (DIN1343) freely adjustable |
| Signal / Interface & Supply | |
| Analog output | |
| Signal | 2 x 4 … 20 mA (4-wire), isolated |
| Scaling | 0 … max flow, freely adjustable |
| Load | Max. 400 Ohm |
| Update rate | Value updated ever 1 sec |
| Pulse/Alarm output | |
| Signal | Switch output, normally open, max. 30 VDC, 200 mA |
| Scaling | 1 pulse per consumption unit (selectable) |
| Alarm | Channel and threshold freely setable |
| Feldbus | |
| Protocol | Modbus/RTU, Modbus/TCP |
| Supply | |
| Voltage supply | 16 … 30 VDC |
| Current consumption | 200 mA |
| General Data | |
| Configuration | |
| Wireless | S4C-FS App for Android and iOS |
| Others | 3 touch button at display |
| Display | |

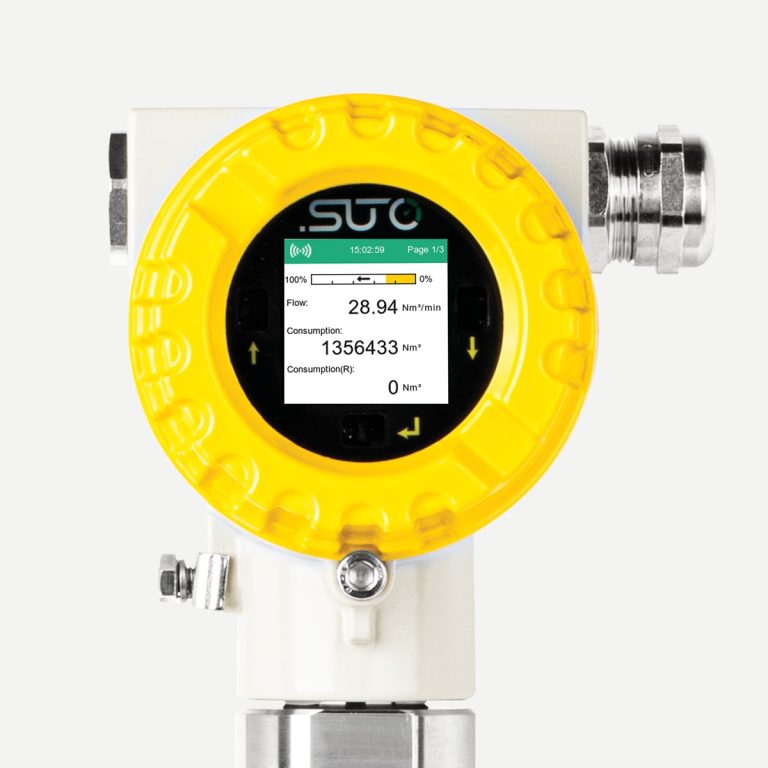

| Integrated | Color graphics display |
| Material | |
| Process connection | Stainless steel 1.4404 (SUS 316L) |
| Housing | Al alloy |
| Sensor | Stainless steel 1.4404 (SUS316L), 4J50 nickel plated, glass |
| Metal parts | Stainless steel 1.4404 (SUS 316L) |
| Miscellaneous | |
| Electrical connection | Screw terminals |
| Protection class | IP67, Ex option: IP65 |
| Approvals | CE, RoHS, FCC |
| IECEx / GB | Ex db ib IIC T4 Gb Ex ib tb IIIC T135°C Db |
| ATEX | II 2G Ex db ib IIC T4 Gb II 2D Ex ib tb IIIC T135°C Db |
| Process connection | G3/4″ (ISO 228/1) |

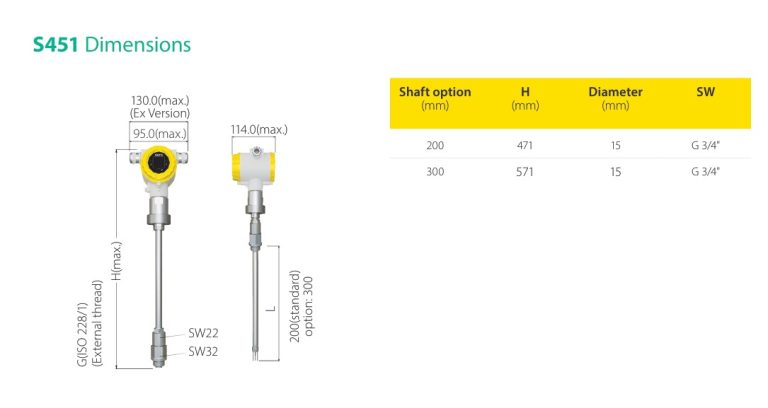

| Weight | S451 300mm: 2.15kg S451 200mm: 2.08kg |
| Operating conditions | |
| Medium | Air, N₂, O₂, CO₂ and other non corrosive gases |
| Medium temperature | -30 … +140 °C (applicable for Non-Ex-Option) -30 … +90 °C (applicable for Ex-Option) |
| Medium humidity | < 90 %, no condensation |
| Operating pressure | 0 … 1.6 MPa applicable for Ex-Option and A1558 option 0 … 5.0 MPa applicable for Non-Ex-Option of S451 with A1559 option 0 … 4.0 MPa applicable for Non-Ex-Option of S453 with A1559 option 0…0.2 MPa applicable for vercuum with A1566*For pressure above 1.5 MPa use the installation device A530 1119 or A530 1120 to install S451. |
| Ambient temperature | -40 … +65 °C |
| Storage temperature | -40 … +70 °C |
| Transport temperature | -40 … +70 °C |
| Pipe sizes | >= DN25 |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S695 4510 | S451 Thermal mass flow meter (Insertion Type), incl. Display, Data Logger, 200 mm shaft | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4511 | S451 Thermal mass flow meter (Insertion Type), incl. Display, Data Logger, 300 mm shaft | Delivery time from 12 weeks | On request |
-
+
|
|
| A1558 | S451/S453: Integrated pressure sensor 0 ... 1.6 MPa(g) [16 bar(g)], 0.5% FS | Delivery time from 12 weeks | On request |
-
+
|
|
| A1559 | S451/S453: Integrated pressure sensor 0 ... 5.0 MPa(g) [50 bar(g)], 0.5% FS [Attention: S453 Operating pressure limited to 4.0 Mpa(g)] | Delivery time from 12 weeks | On request |
-
+
|
|
| A1007 | Option: Flow medium Air | Delivery time from 12 weeks | On request |
-
+
|
|
| A1008 | Option: Flow medium CO2 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1009 | Option: Flow medium O2 (cleaning for oil and grease-free) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1010 | Option: Flow medium N2 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1011 | Option: Flow medium N2O | Delivery time from 12 weeks | On request |
-
+
|
|
| A1012 | Option: Flow medium Argon | Delivery time from 12 weeks | On request |
-
+
|
|
| A1013 | Option: Flow medium Natural Gas | Delivery time from 12 weeks | On request |
-
+
|
|
| A1014 | Option: Flow medium H2 (For real gas calibration. Please consult manufacturer for this option in advance) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1015 | Option: Other gas (specify gas or gas mix) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1016 | Option: Flow medium He (real gas calibration) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1017 | Option: Flow medium Propane C3H8 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1041 | Option, flow medium O2, Ar, CO2 (real gas calibration). Please specify flow medium! | Delivery time from 12 weeks | On request |
-
+
|
|
| A1042 | Flow medium CH4, NG, N2O (real gas calibration, please consult with manufacturer for this option in advance) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1555 | S451/S453: Low Range (30 sm/s) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1554 | S451/S453: Standard Range (120 sm/s) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1550 | S451/S453: Max Range (240 sm/s) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1553 | S451/S453: Standard Calibration | Delivery time from 12 weeks | On request |
-
+
|
|
| A1551 | S451/S453: High accuracy calibration (1% o. rdg +- 0.3% FS) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1552 | S451/S453: Bi-directional calibration (only for S451) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1560 | S451/S453: 2 x 4 ... 20 mA, Pulse/Alarm, Modbus/RTU | Delivery time from 12 weeks | On request |
-
+
|
|
| A1562 | 2 x 4 ... 20 mA, Pulse/Alarm, Modbus/TCP over Single Pair Ethernet (SPE), Power over Data Line. (For Non-Ex application A1557) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1557 | S451/S453: No Ex-Approval | Delivery time from 12 weeks | On request |
-
+
|
|
| A1556 | S451/S453: ATEX / IECEx / GB3836 | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S451 using the special form.
You can buy SUTO S451 in UAE at a price starting from 6060 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S451 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Flow Meters for Compressed Air and Gas
