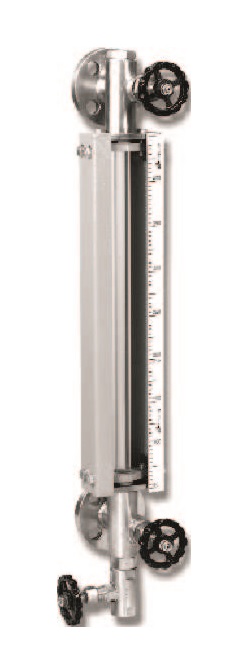

Gauge is fitted between two end fittings through gland packing. The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in the gauge. The Gauge Glass is protected with ‘C’ channel. End fitting has built-in isolating valve, drain valve & vent plug.
Made in India. brand Spink Controls, model SC/L-001
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Gauge | HW Borosilicate Glass 16 / 19mm OD (25mm for Viscous Liquids) |
| End Fitting MOC | CS / SS 304 / SS 316 / PP / PTFE |
| End Block Type | W/O Valve / Offset NV with or W/O Auto Ball Check |
| Guards | CS/ SS304 / FRP C- Channels |
| Gland MOC | CI / SS 316 / PP |
| Packing | PTFE |
| Process conn. | 34” / 1” Flanged (Table D / ANSI 150#) or BSP Screwed |
| Vent / Drain | Plug / Ball valve |
| Scale | Aluminium Engraved |
| CC Dist. | 1500mm in Single Length, Large CCD’s thru’ Coupler |
| Visibility | CC Dist – 150mm |
| Maximum Temp. | 200°C (Metallic) / PP/70°C (PP) |
| Test Pressure | 10 Kg/cm² (Metallic) / 2 Kg/cm² |
x (CC dist.) in mm
Auto Ball Check
Auto ball check facility is provided to prevent “liquid loss” from vessel during breakage of gauge glass. It consists of a capsule located within the gauge neck’ and contains a ‘ ball which moves freely along its inner race between the stopper & orifice. During breakage, the pressure on ‘ball’ from gauge side will be atmospheric, whereas higher pressure from vessel side (“optg pr + liquid column”) will cause the ball to move and block the orifice, to minimize liquid loss.

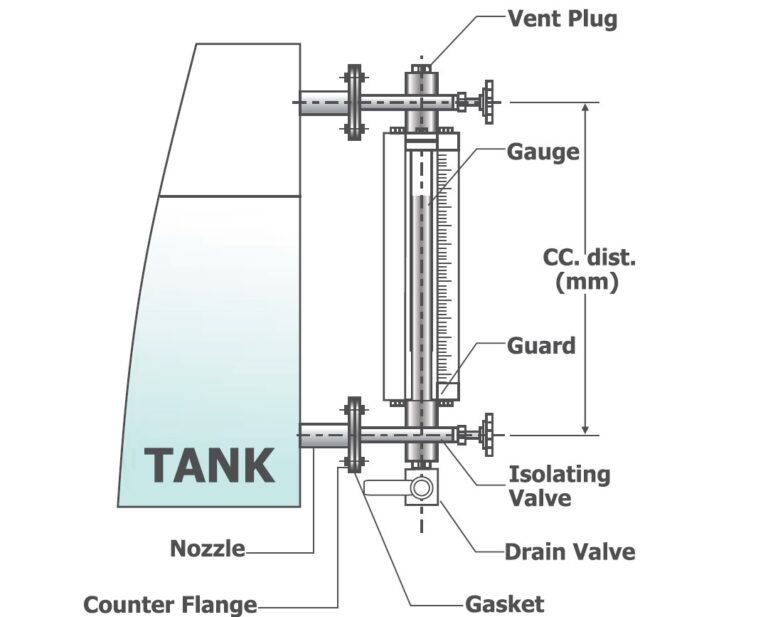

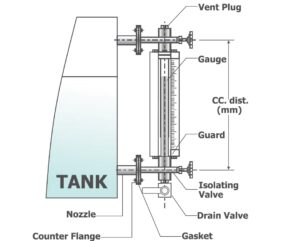

Installation
Side mounted through tank nozzles, having matching counter flanges / threads, ensuring that CC distance between nozzles corresponds with CC distance (R) of the Ø gauge.
