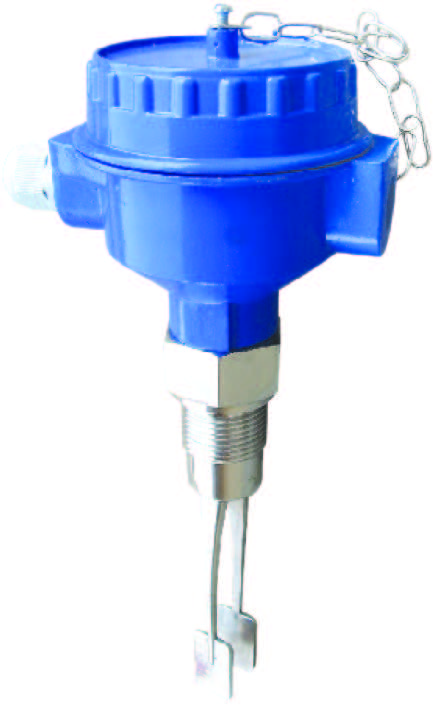

The Vibrating Fork Level Switch is a versatile and reliable device designed for precise level detection in bulk solids, powders, and granular materials. Its self-cleaning vibrating fork operates without calibration, ensuring high accuracy in dusty environments, while field-selectable logic allows configuration for high or low-level switching.
Made in India. brand Spink Controls, model SC/L-601
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Switching Unit | |
|---|---|
| Housing | Aluminum, weather proof, powder coated. Integral with the probe / suitable for back panel mounting |
| Cable entry | 2 nos. PG 16 |
| Ambient temperature | 0° C to + 60° C |
| Power Consumption | 2 VA |
| Mains Voltage | 230/110V AC (+/-15%), 50Hz, or 18-55 V DC 65 to 265 V AC (0ptional) |
| Switch status | Green LED display shows Normal, Red LED Shows alarm |
| Output | a) 2 sets of potential free c/o contacts rated at 5 amps, 230 V AC for non-inductive loads. b) PNP/NPN with DC mains |
| Switching delay | Continuously adjustable From 2 to 20 sec. probe Free or prob covered. (Optional) |
| Safety operation | Field selected switch over for min. or max. (FSL/FSM) switching points |
| Fork (Sensing Probe) | |
| Mounting | Screwed – 1.½” BSP (standard) or Flanged (optional) |
| Sense | Fork, Stainless steel (SS 326) |
| Extension | Pipe (SS 304) |
| Length | a) 200 (standard) up to 3000 mm and as per application (rigid) b) flexible, Wire probe |
| Operating | 150° C for the Temp in integral switching vessel unit (standard) 200° C (on request) |
Key Features:
Applications:
Measuring system – The complete system, FCFORKHARP- 2000 series, consists of The sensing probe of Vibrating Fork and The Electronic Switching unit
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/L-601 using the special form.
You can buy Spink Controls SC/L-601 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/L-601 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Level Switches
