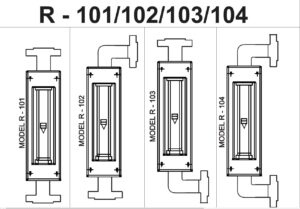

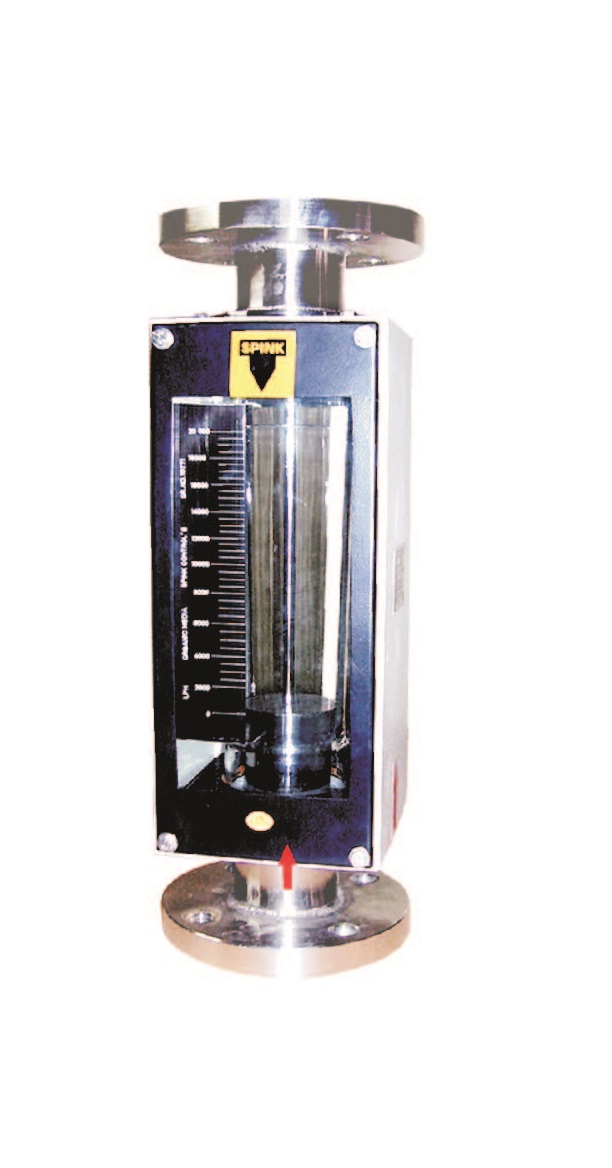

SPINK SC/R-101 operated on the Variable Area Principle, where the fluid flow raises a float in taper tube increasing the area of passage of fluid. The greater the flow, the higher the float is raised. The height of float is raised by a combination of the buoyance of the liquid and velocity head of the fluid. With gases, the buoyancy is negligible, and float responds to the velocity head alone.
Made in India. brand Spink Controls, model SC/R-101
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Accuracy | +/- 2 % of FSR |
| Repeatability | +/- 0.5 % of FSR |
| Rangeability | 10 : 1 |
| Temperature rating | 150°C |
| Pressure rating | Up to 10 kg/cm² |
| Casing | M.S. powder coated/SS316/SS304 |
| End connection | Flanged/screwed as per customer specification |
| Material of wetted part | CS/SS 304/SS 316/PP/PVC/Teflon |
| Metering tube | Borosilicate glass |
| Float | SS304/SS316 or suitable to service |
| Scale length | 175 to 220 mm |
| End to end distance | 500mm |
| Flow direction | From bottom to top |
| Mounting position | Vertical |
| Elastomers | Neoprene/silicon/Viton/PTFE |
| R-101 | GT/ | A | F | 1 | WL | MS | AL | GP1 | PK1 | ||
| Line Size | Pressure Rating Kg/cm2 |
Water at AMB. Temp in LPH |
Glass Size | Line Size Code | |||||||
| 15 | 15 | 10-100 | GT/01 | A | |||||||
| 20-200 | GT/02 | ||||||||||
| 30-300 | GT/03 | ||||||||||
| 20 | 10 | 40-400 | GT/04 | B | |||||||
| 60-600 | GT/05 | ||||||||||
| 80-800 | GT/06 | ||||||||||
| 25 | 10 | 100-1000 | GT/07 | C | |||||||
| 120-1200 | GT/08 | ||||||||||
| 150-1500 | GT/09 | ||||||||||
| 200-2000 | GT/10 | ||||||||||
| 250-2500 | GT/11 | ||||||||||
| 300-3000 | GT/12 | ||||||||||
| 40 | 7 | 350-3500 | GT/13 | E | |||||||
| 400-4000 | GT/14 | ||||||||||
| 500-5000 | GT/15 | ||||||||||
| 600-6000 | GT/16 | ||||||||||
| 50 | 7 | 800-8000 | GT/17 | F | |||||||
| 1000-10000 | GT/18 | ||||||||||
| 65 | 7 | 1500-15000 | GT/19 | G | |||||||
| 80 | 5 | 2000-20000 | GT/20 | H | |||||||
| Process connection | |||||||||||
| Flanged ANSI 150# | F1 | ||||||||||
| Screwed | S1 | ||||||||||
| HoseConnection | H | ||||||||||
| Tri-Clamp | TC | ||||||||||
| Material of construction – body & process connection | |||||||||||
| Stainless steel 316 | 1 | ||||||||||
| Stainless steel 316L | 2 | ||||||||||
| Stainless steel 304 | 3 | ||||||||||
| Mild steel | 4 | ||||||||||
| Carbon steel | 5 | ||||||||||
| Cast iron | 6 | ||||||||||
| Poly propylene | 7 | ||||||||||
| Special on request (please specify) | 8 | ||||||||||
| Lining material | |||||||||||
| PTFE | PT | ||||||||||
| Without lining | WL | ||||||||||
| Casing material | |||||||||||
| MS duly powder coated | MS | ||||||||||
| Stainless steel | SS | ||||||||||
| Scale material | |||||||||||
| Aluminium anodized | AL | ||||||||||
| Stainless steel | SL | ||||||||||
| Acrylic | AC | ||||||||||
| Gland plate & accessories | |||||||||||
| Carbon steel plate | GP1 | ||||||||||
| Stainless steel | GP2 | ||||||||||
| Other – please specify | GPX | ||||||||||
| Packing material | |||||||||||
| PTFE | PK1 | ||||||||||
| Silicon | PK2 | ||||||||||
| Neoprene | PK3 | ||||||||||
| Viton | PK4 | ||||||||||
| Nitrile | PK5 | ||||||||||
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-101 using the special form.
You can buy Spink Controls SC/R-101 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/R-101 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
