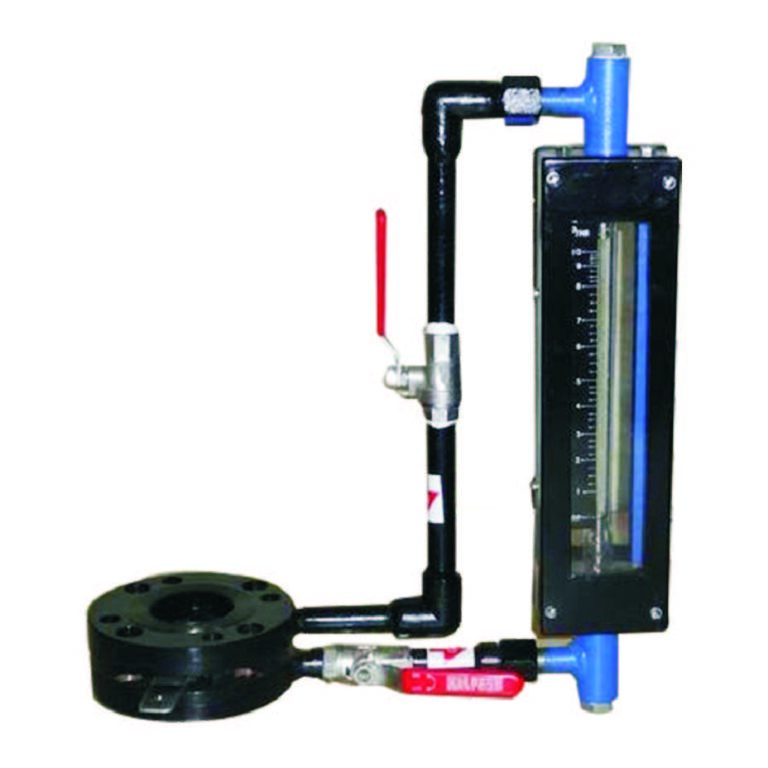

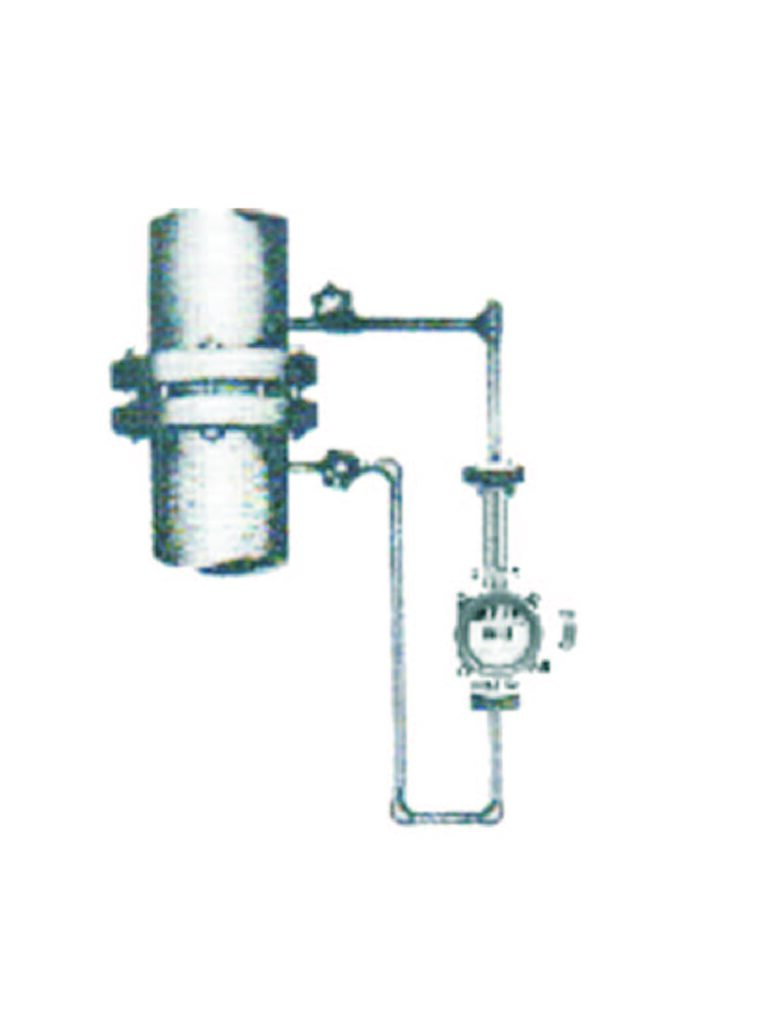

The ori-flow meter measures flow by inserting an orifice at part of the piping, generating differential pressure before and behind the orifice by means of the flow, and extracting this differential pressure by a suitable method.
Made in India. brand Spink Controls, model SC/R-700
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Accuracy | +/- 2% of FSR |
| Rangeability | 8:1 |
| Temperature rating | 150°C |
| Pressure rating | 25 kg/cm² |
| MOC | |
| Orifice plate | SS 316 / HASTELLOY C |
| Carrier ring | SS 316 / MS / CS |
| Flanged | ASTM-A-1&2/A-105 |
| Flanged std | ANSI B. 16.5 |
| By pass piping | SS 316 / MS / CS |
| Indicating rotameter | SS 316 / MS / CS |
Capacity Guide Maxmum m³/h of Water
| Main pipe size | Main pipe maximum flow m/h (20°C water) | |||
| Differential pressure | ||||
| Inch | Millimeter | 1500mmWC | 2500mmWC | 5000mmWC |
| 2 | 50 | 15 | 20 | 28 |
| 2½ | 65 | 22 | 28 | 40 |
| 3 | 80 | 30 | 40 | 44 |
| 4 | 100 | 55 | 70 | 100 |
| 5 | 125 | 90 | 110 | 160 |
| 6 | 150 | 130 | 150 | 220 |
| 8 | 200 | 220 | 280 | 380 |
| 10 | 250 | 350 | 450 | 600 |
| 12 | 300 | 500 | 650 | 850 |
| 14 | 350 | 600 | 800 | 1050 |
| 16 | 400 | 800 | 1000 | 1400 |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-700 using the special form.
You can buy Spink Controls SC/R-700 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/R-700 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Flow meters, Rotameters
