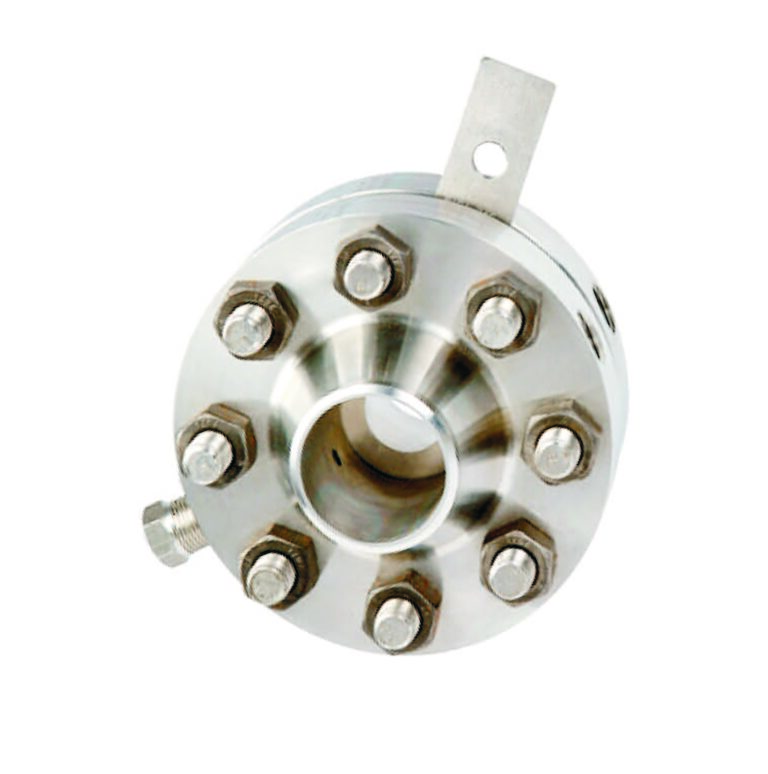

The Orifice Plate with Flange Assemblies are Employed for Measuring the Rate of Flow or Quantity of Moving Fluids like Liquids, Gases or Vapours.
The Orifice Plates are Designed as per Bs 1042-1981 / ISO 5167 & LK.
Made in India. brand Spink Controls, model SC/R-900
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Line Size | 15 NB TO 600 NB |
| Flanges | ASTM-A-105/A182 /S 316/SS 314/ Monel |
| Optional | IBR Approved Flanges |
| Type Of Flanges | Weld Neck /Slipon /Socket– Weld |
| Gasket | Spiral Wound/Caf/ Teflon |
| Type Of Tapping | Flange Taps /Corner Taps/ radius Taps |
| Size Of Taps | ½ INCH NPT (F) |
| Studs / Bolts | ASTM-A-193 GR B7 |
| Nuts | ASTM-A-193 GR 2H |
| Orifice Plate Types: | Square Edge Concentric, Eccentric, Segmental, Quadrant Edge, Conical Entrance Plates |
| Plate thickness: | 3.18 mm, 6.35 mm, 9.52 mm, 12.7 mm as standard, other on request |
| Plate Material: | SS304, SS316, SS304L, SS316L as standard. Hatelloy C, Monel, Inconel, Polypropylene (PP), PVC, PTFE coated, Stellite coated, other on request. |
| Orifice Flanges: | available in forged construction Weld neck, Slip On, Threaded, Socket Weld with RF, FF, RTJ facing rated 150# to 2500# and higher on request, rated in accordance with ASME 16.36 for size upto 8” or male – female flanges in accordance with ASME B 16.5, ASME B 16.47 series A/B |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-900 using the special form.
You can buy Spink Controls SC/R-900 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/R-900 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Flow meters
