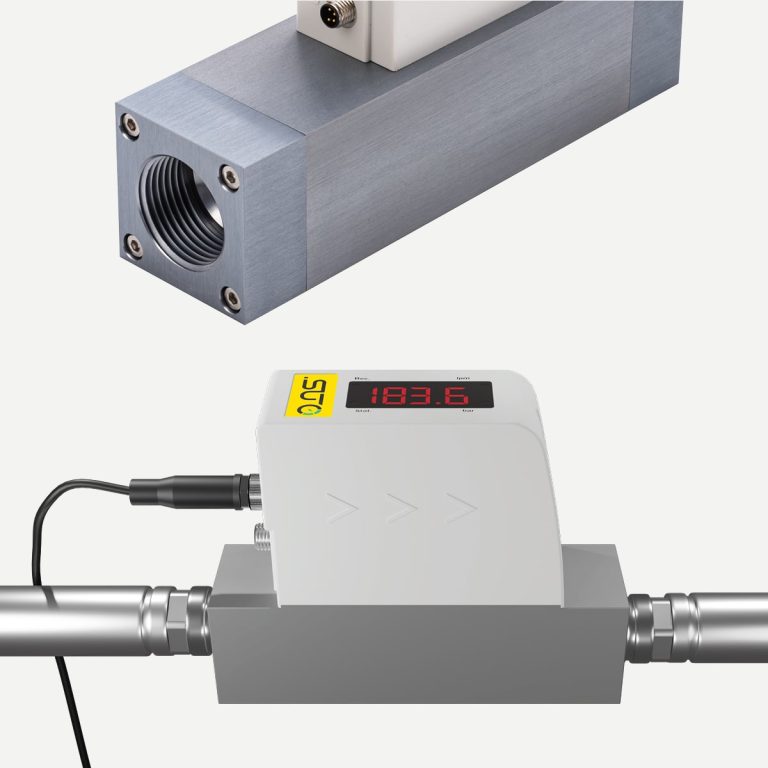

The SUTO S415 Compact Flow Meter offers compressed air flow and consumption measurements directly at the point of use. It is designed to be seamlessly integrated into your compressed air system or in nitrogen gas applications.
Made in Germany. brand SUTO, model S415
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $710
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The compact S415 flow meter provides reliable and cost-effective measurement of compressed air flow and consumption directly at the point of use, helping to improve system efficiency and reduce operating costs. The flow meter is equipped with a wireless interface for remote configuration and real-time monitoring of readings via the free S4C-FS mobile app. Settings are protected from unauthorized access by a unique QR code for each device.
The S415 model is ideal for applications requiring cost-effective, large-scale monitoring of compressed air and nitrogen consumption on individual machines and processes. All parameters (gas type, units of measurement, reference standards) can be pre-configured at the factory according to your requirements.
Application
Features
| MEASUREMENT | |
| Flow | |
| Accuracy | 3 % o.RDG ±0.3 % FS |
| Selectable units | l/min, cfm, kg/h, m3/h |
| Measuring range | see table on the previous page |
| Repeatability | 1 % o.RDG |
| Sensor | Thermal mass flow sensor |
| Sampling rate | 3/sec |
| Turndown ratio | 50:1 |
| Response time (t90) | 2 sec |
| Consumption | |
| Selectable units | m³, ft3, l, kg |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217) 0 °C 1013 mbar (DIN1343) freely adjustable |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA, isolated |
| Scaling | 0 … max flow |
| Load | 250R |
| Update rate | 3/sec |
| Pulse output | |
| Signal | Max 30 V, 200 mA |
| Scaling | 1 pulse per consumption unit |
| Fieldbus | |
| Interface/Protocol | RS-485/Modbus/RTU M-Bus |
| Supply | |
| Voltage supply | 15 … 30 VDC |
| Current consumption | 120 mA @ 24 VDC |
| GENERAL DATA | |
| Configuration | |
| Wireless | S4C-FS App for mobile phones |
| Display | |
| Integrated | 4 digit LED |
| Material | |
| Process connection | Aluminium alloy or Stainless steel SUS316L/1.4404 |
| Housing | PC + ABS |
| Sensor | Glass coated resistive sensor |
| Metal parts | Aluminium alloy or Stainless steel SUS316L/1.4404 |
| Miscellaneous | |
| Electrical connection | 2 x M8 (4 pole) |
| Protection class | IP54 |
| Approvals | CE, RoHS, FCC |
| Process connection | G-thread |
| Weight | 0.45 … 1.3 kg (depends on model) |
| Operating conditions | |
| Medium | Air, N2 |
| Medium quality | ISO 8573: 4.4.3 or better |
| Medium temperature | 0 … 50 °C |
| Medium humidity | < 90 % rH, no condensation |
| Operating pressure | 0 … 10 bar(g) |
| Ambient temperature | 0 … 50 °C |
| Ambient humidity | < 95 % rH |
| Storage temperature | -30 … 70 °C |
| Transport temperature | -30 … 70 °C |
| Pipe sizes | DN8, DN15, DN20, DN25, DN32, DN40, DN50 |
| MEASUREMENT RANGE IN AIR (L/MIN) | |||||
| Process connection | DN8 | DN15 | DN20 | DN25 | DN32 |
| Standard range (S) | 250 | 1000 | 2000 | 3500 | 6000 |
| Low range (L) | 50 | 200 | 400 | 700 | 1200 |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S695 4150 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN8 | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4151 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN15 | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4152 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN20 | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4153 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN25 | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4154 | S415 Compact Thermal Mass Flow Meter (Eco-Inline), DN32 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1007 | Option: Flow medium Air | Delivery time from 12 weeks | On request |
-
+
|
|
| A1010 | Option: Flow medium N2 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1450 | S415: 4 … 20 mA + pulse output | Delivery time from 12 weeks | On request |
-
+
|
|
| A1451 | S415: Modbus/RTU output | Delivery time from 12 weeks | On request |
-
+
|
|
| A1452 | S415: M-Bus digital output | Delivery time from 12 weeks | On request |
-
+
|
|
| A1453 | S415/S418: Low range | Delivery time from 12 weeks | On request |
-
+
|
|
| A1458 | S415: Imperial units instead of SL units | Delivery time from 12 weeks | On request |
-
+
|
|
| A1460 | S415: Reverse display direction | Delivery time from 12 weeks | On request |
-
+
|
|
| A1462 | S415: Standard display direction (left to right) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1464 | S415/S418: Standard range version | Delivery time from 12 weeks | On request |
-
+
|
|
| A1466 | S415: With SI Units | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0128 | S415/S418: Sensor cable 2m with M8 connector, 4-pole, straight type with open wires on one end | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0136 | Sensor cable 5m with M8 connector, 4-pole, straight type with open wires on one end | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0137 | Connection cable to S551, M8/ODU, 5 m, only for S415, S418 and S418-V Modbus | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0161 | M8 female to M12 male converter cable for T-Splitter | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0109 | Mains power supply 100-240 VAC / 24 VDC, 0.5 A, 2m power cable with M8 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| C219 0206 | M8 connector, 4-pole, straight, soldering type | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S415 using the special form.
