The S430 Pitot Tube Flowmeter provides flow and consumption measurement in wet air or high mass flow and velocity applications. Based on the pitot tube principle, the sensor features long term-stability, wide turn-down ratio and good temperature independence. It can be used in compressed air and non-corrosive gases.
Made in Germany. brand SUTO, model S430
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Optimum Compressor Efficiency and Performance
The S430 compressed air flowmeter is designed for the use in wet air, therefore it can be used directly at the compressor outlet. With this kind of installation other flowmeters are likely to fail, as they are not able to withstand the wet and hot air. The S430 is able to withstand these conditions, making it the perfect tool for compressed air audits and compressor efficiency measurements.
Various Output Signals
The S430 Pitot Tube Flowmeter is perfectly suited to be integrated into process controls or high-level monitoring systems. Various output options are offered for a seamless integration:
Flexible and Easy Installation

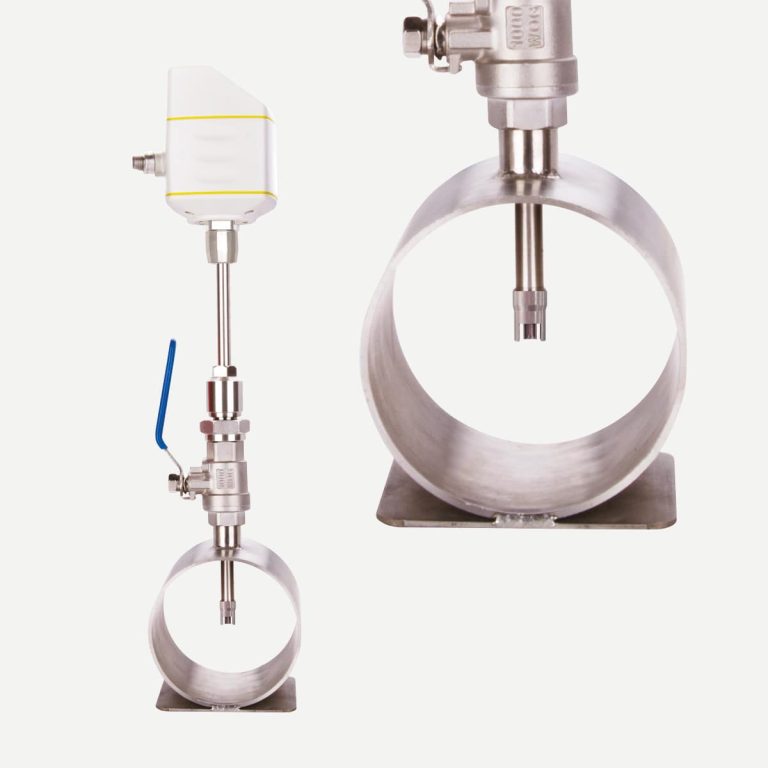

The S430 Insertion Type Flowmeter can be installed in tube diameters of 1’’ to 10” through center installation and bigger diameters through a non-center installation. Due to the insertion through a 3/4″ ball valve, the S430 can be installed under pressure and is perfectly suited for installations where shutdowns are not acceptable.
Robust Material
The S430 comes with an IP65 casing, which provides robust protection in harsh industrial environments. All parts which come into contact with the measurement medium are made of 316L stainless steel. This ensures longevity and guarantees a reliable measurement.
Remote Configuration and Live-Data
By connecting the S430 with the free S4C-FS mobile app, the operators are enabled to view online-data as well as configure flow meter settings.
It is all these features that make the S430 Pitot Tube Flowmeter a perfect choice for accurate and reliable compressed air flow monitoring in wet and dirty gases that occur, for example, at the discharge of a compressor.
Application
| MEASUREMENT | |
| Flow | |
| Accuracy | 1.5 % o.r. ±0.3 % FS Volumetric Flow: m3/h, m3/min, L/min, l/s, cfm Mass Flow: kg/h, kg/min, kg/s, t/h, lb/h |
| Selectable units | Actual Velocity: m/s, ft/min |
| Measuring range | siehe Tabelle auf voriger Seite |
| Repeatability | 0.5 % o.r. |
| Sensor | Differenzdrucksensor |
| Sampling rate | 3/sec |
| Turndown ratio | 10:1 |
| Response time (t90) | 2 Sekunden |
| Consumption | |
| Selectable units | m3, ft3, t, lb, l, kg |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217) 0 °C 1013 mbar (DIN1343) freely adjustable |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA, isolated |
| Scaling | 0 … max flow |
| Load | 250R |
| Update rate | 1/sec |
| Pulse output | |
| Signal | Max 30 V, 200 mA |
| Scaling | 1 pulse per consumption unit |
| Fieldbus | |
| Protocol | Modbus/RTU, Modbus/TCP |
| Supply | |
| Voltage supply | 24 VDC 48 VDC (PoE) |
| Current consumption | 150 mA 100 mA (PoE) |
| GENERAL DATA | |
| Configuration | |
| Wireless | S4C-FS App for mobile phones |

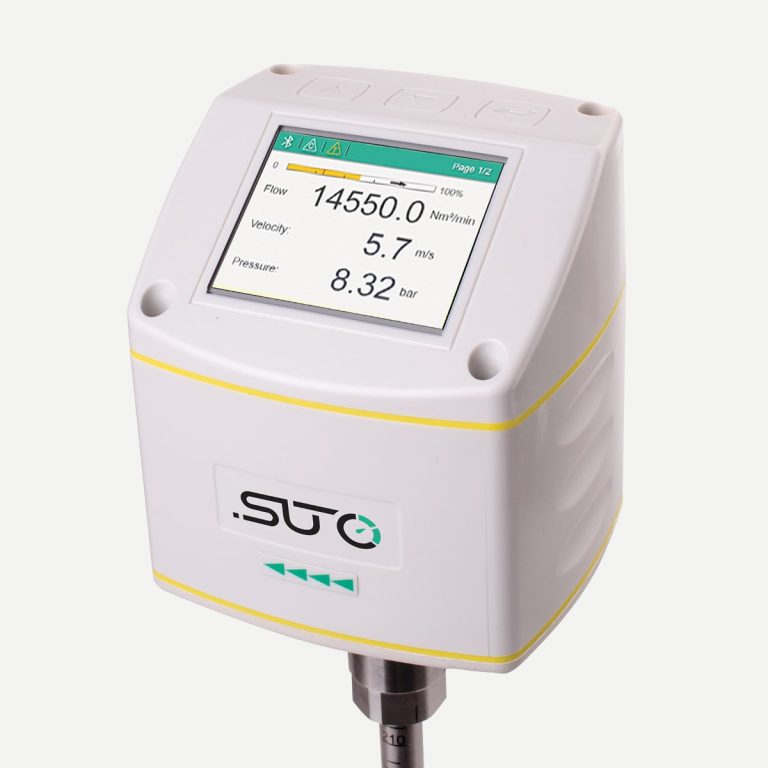

| Others | Display with 3 touch buttons (Option) |
| Display | |
| Integrated | 2.4” color graphic display with 3 touch buttons (option) |
| Material | |
| Process connection | Stainless steel 1.4404 (SUS 316L) |
| Housing | PC + ABS |
| Sensor | Stainless steel 1.4404 (SUS 316L) |
| Metal parts | Stainless steel 1.4404 (SUS 316L) |
| Miscellaneous | |
| Electrical connection | 2 x M12 (5 pole) 1 x M12 (8-pole x-coded) for TCP |
| Protection class | IP65 |
| Approvals | CE, RoHS, FCC |
| Process connection | G 3/4” (ISO 228/1) |
| Weight | 1.12 kg |
| Operating conditions | |
| Medium | Wet/dry air, other gases |
| Medium quality | non corrosive |
| Medium temperature | -40 … +230 °C |
| Medium humidity | no requirements |
| Operating pressure | 0 … 1.6 MPa -30 … +70 °C housing 0 … +50 °C display (Optional) |
| Ambient temperature | -10 … +40 °C PoE (Optional) |
| Ambient humidity | < 95 % rH |
| Storage temperature | -30 … 70 °C |
| Transport temperature | -30 … 70 °C |
| Pipe sizes | >=DN32 |
| MEASURING RANGE | |||||||
| Tube | Volumetric Flow | ||||||
| Inch | mm | m³/h | m³/min | cfm | |||
| Min | Max | Min | Max | Min | Max | ||
| 1¼” | 36 | 49 | 507 | 0.8 | 8.5 | 29 | 298 |
| 1½” | 41.9 | 73 | 757 | 1.2 | 12.6 | 43 | 446 |
| 2” | 53.1 | 124 | 1298 | 2.1 | 21.6 | 73 | 764 |
| 2½” | 68.9 | 221 | 2311 | 3.7 | 38.5 | 130 | 1360 |
| 3” | 80.9 | 313 | 3270 | 5.2 | 54.5 | 184 | 1925 |
| 4” | 100 | 488 | 5094 | 8.1 | 84.9 | 287 | 2998 |
| 5” | 125 | 767 | 8006 | 12.8 | 133 | 451 | 4712 |
| 6” | 150 | 1107 | 11547 | 18.5 | 192 | 652 | 6796 |
| 8” | 200 | 1983 | 20689 | 33.1 | 345 | 1167 | 12177 |
| 10” | 250 | 3099 | 32338 | 51.7 | 539 | 1824 | 19034 |
| 12” | 300 | 4462 | 46567 | 74.4 | 776 | 2626 | 27408 |
