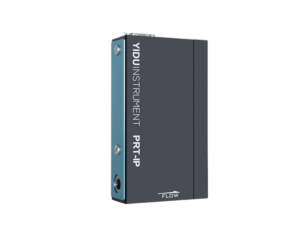

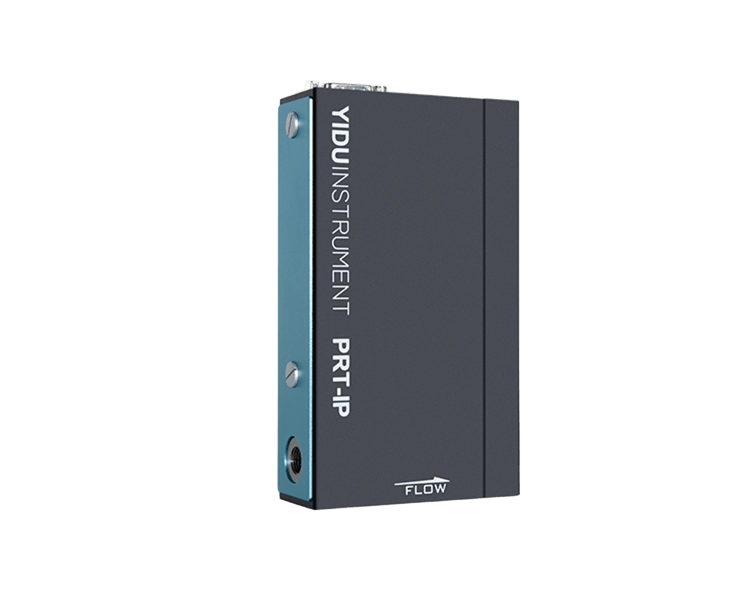

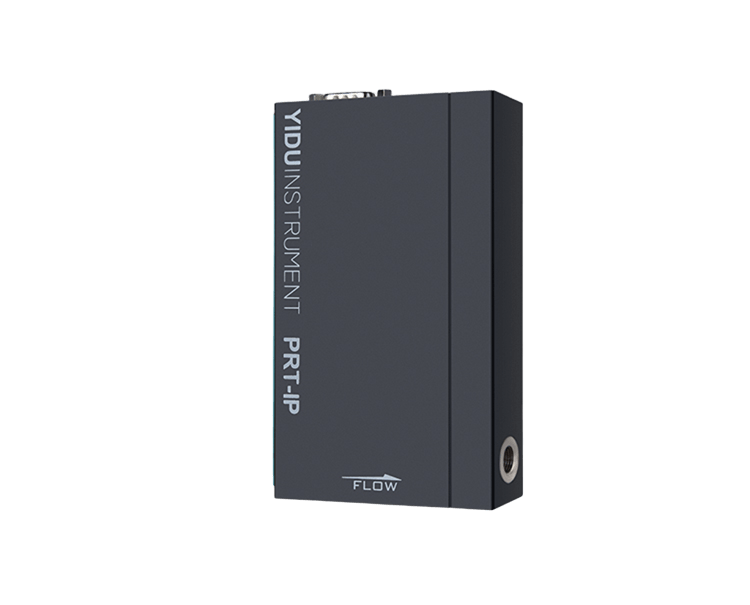

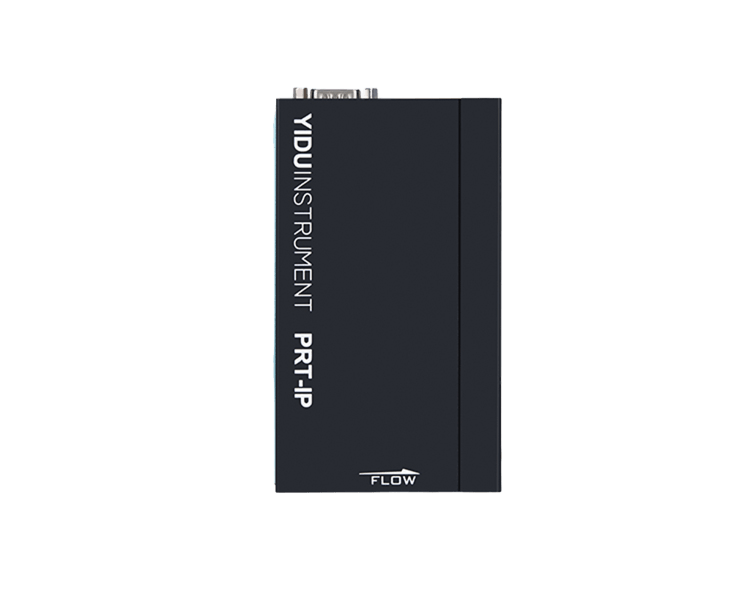

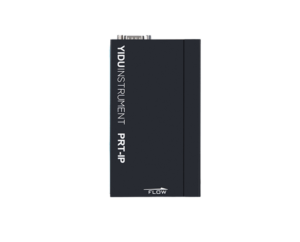

Mass flow meter for high-quality measurement processes. The device features a wide temperature and pressure range. The flow meter is compatible with digital and analog signals and has high overload capacity and resistance to electromagnetic interference. Flow meter without touchscreen display.
Made in China. brand YIDU, model M
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The M series laminar mass gas flow meter differs from the S series in that it does not have a touchscreen display. Unique laminar differential technology combined with compensation implemented using high-precision pressure and temperature sensors, as well as proprietary key algorithms, provide the product with characteristics such as high accuracy, high repeatability, low zero drift, and low temperature and pressure drifts. The analog and digital signal communication method is suitable for customers who perform associated process control.
Principle Introduction
Laminar Mass Flow Meter Utilizing patented internally-compensated laminar differential pressure technology, this instrument integrates pressure and temperature sensors to fully compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. It delivers rapid, precise real-time measurements of five critical parame- ters: : real-time temperature, pressure, volumetric flow, mass flow, and totalized flow， Should you require accurate and rapid gas flow measurement, leak rate detection, or a reference meter for measurement transfer and calibration applications, YIDU flow meters provide an optimal solution.
Application
| Model | PIPG-M101 PIPG-M201 |
PIPG-M102 PIPG-M202 |
PIPG-M120 PIPG-M220 |
PIPG-M150 PIPG-M250 |
| Flow Range | 0.5, 1, 2, 5, 10, 20 cm³/min (SCCM) | 50, 100, 200, 500, 1000, 2000 cm³/min (SCCM) | 5, 10, 20, 50, 100, 200 l/min (SLPM) | 500, 1000, 1500, 2000, 3000, 4000, 5000 l/min (SLPM) |
| Accuracy | M100: ±1.0% Rd (in range 20%～100%) or ±0.2% F.S. (≤20% of range) M200: ±0.5% Rd (in range 20%～100%) or ±0.1% F.S. (≤20% of range) M100-WR: ±1.0% Rd (in range 10%～100%) or ±0.1% F.S. (≤10% of range) |
|||
| Repeatability | M100: ±0.2% F.S. M200: ±0.1% F.S. M100-WR: ±0.2% F.S. |
|||
| Pressure Shift | Zero: ≤±0.2% F.S./100 kPa; Span: ≤±0.2% F.S./100 kPa (Benchmark 100 kPa (abs.)) |
|||
| Temperature Shift | Zero: ≤±0.02% F.S./°C; Span: ≤±0.02% F.S./°C (Benchmark 25°C) |
|||
| Operating Range | 1%～100% F.S. (maximum up to 120% F.S.) | |||
| Response Time | ≤100 ms | |||
| Warm-up Time | ≤1 s | |||
| Medium Temperature Range | -20℃～60℃ | |||
| Ambient Temperature Range | -20℃～50℃ | |||
| Operating Humidity Range | 0%～98% (non-condensing) | |||
| Pressure Drop at Full Scale | 4 kPa | |||
| Maximum Operating Pressure | 1.5 MPa | |||
| Operating Pressure Range | 60 kPa ~ 1 MPa | |||
| Supply Voltage | 24 V ±20% | |||
| Current Consumption | 150 mA (< 3 W) | |||
| Mounting Method | None (any angle) | |||
| Wetted Materials | Stainless Steel SUS316L | |||
| Output Signals / Interfaces | Standard: Digital: RS485 Optional: PROFIBUS, Analog: 0~5 V / 4～20 mA | |||
