Key Components:
Purpose: Hybrid Qualification+ kit combining ANSI/TIA-1152-A compliant Certi‑Lite copper testing (CAT3–CAT6A) with PoE load validation and Multi‑Gig SNR qualification up to 10G — plus professional link identification: the 60Hz noise‑filtering tone probe blocks power noise and harmonics to trace wires and faults in dense, electrically noisy environments. This version is designed for 60Hz power grids.
Made in USA. brand AEM, model NSA-K60E-60HZ
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $3 185
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The NSA‑K60E is an Enhanced Certi‑Lite/Identifier Test Kit used by System Integrators, Cable Contractors, and IT departments who need standards‑based copper qualification plus professional wire tracing and link identification. The kit supports Certi‑Lite single‑ended cable testing, PoE load testing for 802.3af/at/bt and UPoE, SNR‑based Multi‑Gigabit link speed testing up to 10GigE, and wired and wireless network connectivity testing. In addition to the standard NSA components, the K60E includes the Link Identifier Kit with Remote IDs #2–#8 and the Tempo Communications brand Noise Filtering Tone Probe (60Hz). Wireless testing requires an optional Edimax EW‑7822ULC Wi‑Fi dual band USB Adapter (region specific, purchased separately).
The NSA Platform:
The Network Service Assistant (NSA) is an award‑winning Multifunction Qualification+ Tester — a hybrid solution that bridges the divide between qualification and certification. The platform features an impact‑resistant 5″ capacitive touchscreen, hot‑swappable test adapters, Live Wiremap with audible connection indication, a built‑in kickstand, and an RJ‑45 Ethernet port that supports 10/100/1000 BASE‑T testing with no test adapter needed. Test results can be sent to TestDataPro Cloud via wired or wireless connection, or saved for the PC‑based TestDataPro software.
Certi‑Lite + Professional Link Identification:
Certi‑Lite performs ANSI/TIA‑1152‑A compliant, single‑ended channel testing of CAT3–CAT6A with a clear Pass/Fail indication and in‑depth test reports, using a small passive termination at the remote end to significantly reduce equipment cost compared to traditional certifiers. The K60E adds a complete tracing and identification toolkit: smart, Certi‑Lite capable Remote IDs #2–#8 (Advanced Link Identification) and the Tempo Communications Noise Filtering Tone Probe, whose selectable filter blocks power noise and harmonics (60Hz), allowing the technician to pick up and hear the signal even in the noisiest environments.
Key Features:
Important Note: Certi‑Lite is single‑ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier. This kit does not include fiber optic adapters or a fiber inspection probe; these can be added with optional hot‑swappable adapters.
Kit contains:
Platforms and Remote:
Test Adapter:
Link Identifier Kit (60Hz):
Accessories and Documentation:
The video shows the functionality of the AEM Test Network Service Assistant (NSA) network tester.
| Device Type | Multifunction Qualification+ Tester with Certi‑Lite and Advanced Link Identification |
| Supported Cable Types | 4‑pair twisted‑pair copper cabling, CAT3 through CAT6A |
| Copper Testing (Certi‑Lite) | ANSI/TIA‑1152‑A compliant single‑ended channel testing CAT3–CAT6A with clear Pass/Fail indication and detailed printed reports |
| Certi‑Lite Autotest Time | CAT6A: 13 sec – includes Length, Delay, DC Loop Resistance, DC Resistance Unbalance P2P, IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, Impedance, RL/NEXT/Shield Locator TDR |
| Built‑in Test Functions | Live Wiremap with Distance to Fault (TDR 0–100 m), DC Loop Resistance & P2P (0–100 Ω), Tone Generator (730/1440 Hz) |
| PoE Testing | Load test up to 90W; IEEE 802.3af/at/bt and UPoE; PSE detection/type, PD class, PoE pair identification, sustained power load monitoring |
| Multi‑Gig Testing | Multi‑Gig Autotest and SNR 2.5/5/10G under simultaneous traffic and PoE load; IEEE 802.3 up to 10GBASE‑T |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, switch detail (slot/port/VLAN), traceroute, ping, traffic generator – via built‑in RJ‑45 10/100/1000 BASE‑T port (no test adapter needed) |
| Wireless Network Testing | Wi‑Fi discovery (SSID, RSSI, channel), roaming signal strength, ping (requires optional Edimax EW‑7822ULC USB adapter, sold separately) |
| Advanced Link Identification (ALI) | Includes Link Identifier Kit with NSA Remote Pack #2–#8 (smart, Certi‑Lite capable numbered remote IDs) and 60Hz noise filtering Tone Probe |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 3.7V / 13,200 mAh) |
| Measurement Engine | 9‑channel dual‑ended mixed‑mode RF and DC engine, 0.1–3,000 MHz frequency range |
| Compliance | Copper: ANSI/TIA‑568.2‑D, ISO 11801, ANSI/TIA‑1152‑A; PoE: IEEE 802.3 af/at/bt, UPoE; Multi‑Gig: IEEE 802.3 up to 10GBASE‑T; Wired Network: CDP, LLDP; Wireless: IEEE 802.11N & 802.11AC |
| Calibration | Certificate of Calibration traceable to NIST included |
| Warranty | 2 years standard; extends to 5 years upon product registration |

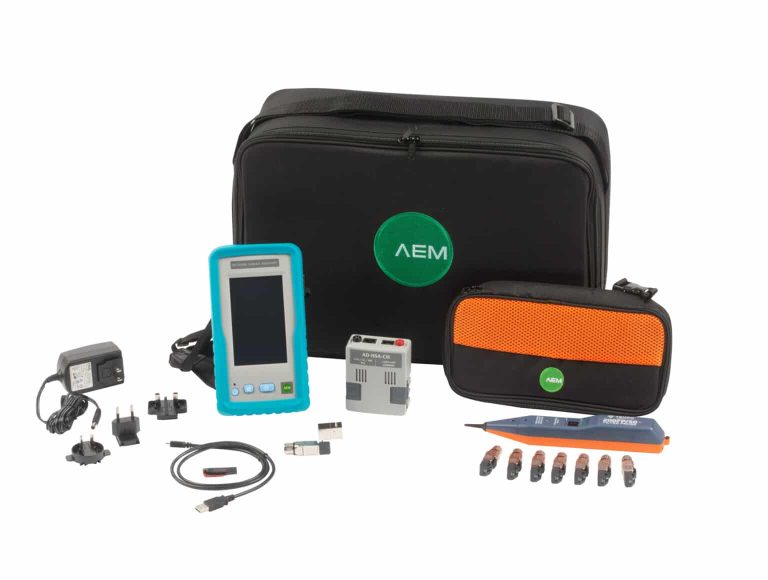

| Kit Includes | NSA Test Platform, AD‑NSA Test Adapter, NSA Remote #1, Link Identifier Kit (Remote Pack #2–#8 + 60Hz Tone Probe), CAT6A RJ‑45 Coupler, Power Supply, Shoulder Strap, Large Carry Case, USB Cable, USB flash drive with TestDataPro |
| Important Note | Certi‑Lite is single‑ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier. |
| Frequency Variant | NSA‑K60E‑60HZ – Tone Probe with 60Hz filter |
| Not Included (Optional Upgrades) | MM/SM Loopback fiber testing, MM/SM OTDR, Hybrid Powered Fiber voltage test – can be added with hot‑swappable adapters |
| Ordering Model | NSA‑K60E‑60HZ |
You can request the necessary certificates, documentation, instructions and user guide for AEM NSA-K60E-60HZ using the special form.
You can buy AEM NSA-K60E-60HZ in UAE at a price starting from 3185 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM NSA-K60E-60HZ price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
