Key Components:
Purpose: Field‑ready OTDR troubleshooting kit with dual SM/MM adapters for pinpointing broken fibers and loss‑inducing events via distance‑to‑fault diagnostics (SM up to 130 km, MM up to 35 km). Includes native 1 Gbps SNR testing and network discovery. OTDR launch cords are not included and are available as optional accessories.
Made in USA. brand AEM, model TESTPRO-K21E-QD
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $4 900
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K21E-QD is used by Cable Contractors. This kit provides Singlemode and Multimode OTDR Fiber Optic testing (Tier 2 certification). Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a modular fiber testing platform built on a 9-channel dual-ended measurement engine. For OTDR applications, it provides advanced troubleshooting capability to easily pinpoint the location of broken fiber or other loss-inducing events that cause optical loss tests to fail. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and a full-function handset that can operate as a standalone fiber validator. The unit includes USB interfaces and TestDataPro cloud/PC integration for automated reporting.
The TestPro K21E-QD is a purpose‑built OTDR testing solution. The package comes equipped with both singlemode (1310/1550nm) and multimode (850/1300nm) OTDR test adapters, reference cords for use as connector savers, and end‑face cleaning tools.
Important Note: OTDR Launch Cords are not included and must be ordered separately.
Key Features:
Kit contains:
Platform and Calibration:
OTDR Test Adapters:
Reference Cords and Cleaning:
Accessories and Documentation:
Note: OTDR Launch Cords not included.
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
| Device Type | Multifunction Fiber OTDR Test Kit |
| Supported Fiber Types | Singlemode (SM) and Multimode (MM) |
| Fiber Optic Testing | Tier 2 (OTDR) certification for both SM and MM – distance-to-fault diagnostics, event loss analysis, and troubleshooting of broken fiber or loss-inducing events |
| Connector Support | SC/UPC interface on both OTDR adapters; SC-SC and SC-LC test reference cords included as connector protectors |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, ping, traceroute (via built‑in 1 GbE port) |
| Wireless Network Testing | Wi‑Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 13,200 mAh) |
| Multimode OTDR Adapter (AD-OTDR-MM) | 850/1300nm wavelengths; Dynamic Range: 25dB (850nm) / 27dB (1300nm); Event Dead Zone: 1m typical; Attenuation Dead Zone: 2.5m (850nm) / 4.5m (1300nm); Max Distance: 40km setting, up to 35km measurement (1300nm); Reflectance: -14 to -62dB |
| Singlemode OTDR Adapter (AD-OTDR-SM) | 1310/1550nm wavelengths; Dynamic Range: 29dB (1310nm) / 27dB (1550nm); Event Dead Zone: 0.6m typical; Attenuation Dead Zone: 3.6m (1310nm) / 3.7m (1550nm); Max Distance: 130km setting, up to 130km measurement (1550nm); Reflectance: -14 to -65dB |
| Pulse Width | 3, 5, 10, 15,…,24995, 25000 nsec (both adapters) |
| Compliance (Fiber) | TIA‑568.3‑E, ISO/IEC 14763‑3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included |

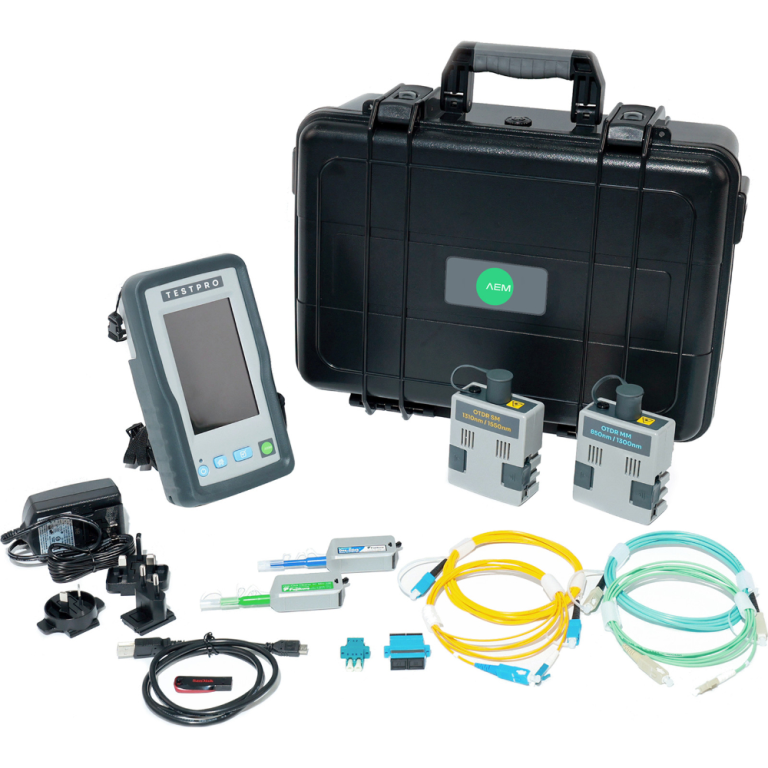

| Kit Includes | One TestPro CV100 platform, AD-OTDR-SM and AD-OTDR-MM adapters, SM and MM SC-SC / SC-LC reference cords, click-cleaners for LC & SC, small hard carry case, hanging strap, USB cable, USB flash drive, AC power adapter, quick start guide |
| Ordering Models | TESTPRO‑K21E‑QD |
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K21E-QD using the special form.
You can buy AEM TESTPRO-K21E-QD in UAE at a price starting from 4900 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K21E-QD price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
