Key Components:
Purpose: All‑in‑one Smart Building PRO kit covering copper certification, Tier 1/2 fiber (OTDR), PoE load testing, Multi‑Gig SNR, and MPTL. Eliminates separate testers for network validation and OTDR troubleshooting.
Made in USA. brand AEM, model TESTPRO-K71E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $19 900
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K71E is the ultimate Smart Building PRO kit used by System Integrators, Network Owners, and Cable Contractors looking to offer the most comprehensive service portfolio. This kit provides complete Copper and Fiber Optic certification (both Tier 1 and Tier 2 via OTDR), PoE load testing, and Multi-Gigabit link speed testing. Wired network testing is supported via the included AD-NET-CABLE adapter, while wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. For fiber applications, it performs both Tier 1 insertion loss testing and Tier 2 OTDR troubleshooting. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone network testers. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.
The TestPro K71E is the most comprehensive, all-in-one Smart Building test kit available, combining every physical layer and active network validation tool a modern contractor could need. Unlike standard kits, the K71E includes both Tier 1 fiber adapters and Tier 2 SM/MM OTDR adapters — complete with 150m launch cords — enabling immediate distance-to-fault troubleshooting. Combined with CAT8.1 copper certification, PoE load validation, Multi-Gigabit SNR testing, and MPTL support, the K71E covers the entire deployment lifecycle from physical layer certification to active network service validation and advanced fiber troubleshooting.
Key Features:
This kit is available in the following ordering options:
Kit contains:
Platforms and Calibration:
Copper Test Adapters:
Network, PoE and Multi-Gig Adapters:
Fiber Test Adapters (Tier 1):
OTDR Test Adapters (Tier 2):
Reference Cords, Connectors and Couplers (Tier 1):
SC Interface and Inspection:
OTDR Reference Cords and Launch Cords:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
| Device Type | Multifunction Copper and Fiber Certifier with OTDR, PoE, and Multi‑Gigabit Validation |
| Supported Cable Types | Twisted‑pair copper (CAT3–CAT8.1 / Class I); Singlemode and Multimode fiber (Tier 1 + OTDR) |
| Copper Certification | CAT3–CAT8 Channel and Permanent Link (AD‑CAT8.1‑CH / PLE), DC Resistance Unbalance, Wiremap with Distance to Fault |
| Fiber Optic Certification | Tier 1 (insertion loss) for SM and MM, plus Hybrid Powered Fiber Resistance & Voltage Test (VFL, voltmeter) |
| OTDR (Tier 2) – Included | Singlemode (AD‑OTDR‑SM): 1310/1550nm, dynamic range 29/27dB, event dead zone 0.6m Multimode (AD‑OTDR‑MM): 850/1300nm, dynamic range 25/27dB, event dead zone 1m Includes 150m launch cords and SC/LC reference cords |
| PoE Load and Validation | Up to 90 W, 802.3af/at/bt/UPoE, PSE detection, PD emulation, sustained load monitoring (via AD‑NET‑CABLE) |
| Multi‑Gigabit Link Speed Testing | 2.5/5/10GBASE‑T SNR with traffic and PoE load (via AD‑NET‑CABLE) |
| MPTL Testing | Supported via included CAT6A Patch Cord Adapter |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, switch detail (VLAN, PoE), ping, traceroute |
| Wireless Network Testing | Wi‑Fi analysis, AP discovery, signal strength (requires optional Edimax USB adapter, sold separately) |
| Results Management | TestDataPro PC & Cloud (USB flash drive) – combined copper, fiber, OTDR, PoE, and network reports |
| Display / Battery | 5″ capacitive touch (800×480) ; Li‑Ion 13,200 mAh, typical 9 hours |
| Measurement Engine / Frequency | 9‑channel dual‑ended, 0.1–3000 MHz; Copper Autotest: CAT6A 6 sec, CAT8 30 sec |
| Calibration | NIST‑traceable certificates for each platform; calibration certificates for fiber adapters |

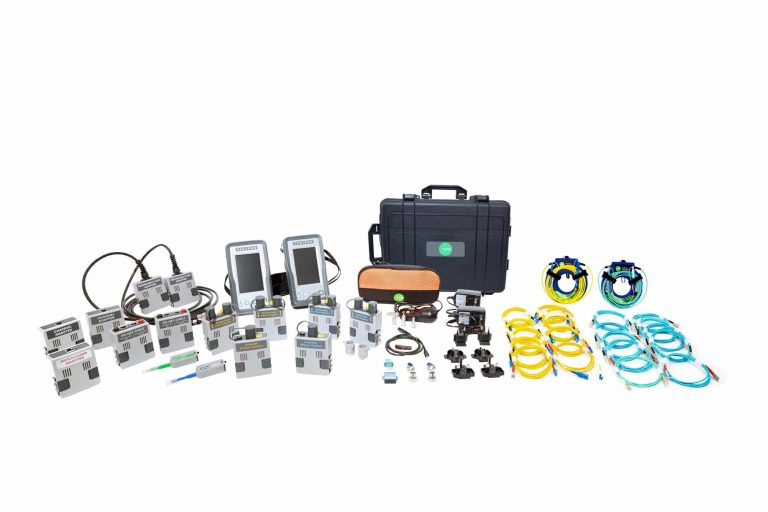

| Kit Includes (Highlights) | Two CV100 platforms, copper CH/PLE adapters, SM/MM Tier 1 adapters, SM/MM OTDR adapters + launch cords, AD‑NET‑CABLE pair, MPTL adapter, PROBE‑FIBER‑INSP, SC kits (MM/SM), cleaning kits, hard/soft cases, accessories |
| Not Included (Optional) | Single Pair Ethernet (SPE) – can be added via hot‑swappable adapters |
| Ordering Options | TESTPRO‑K71E (standard), TESTPRO‑K71E‑ECB (with 1‑year Extended Care) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO‑K71E | Smart Building PRO Kit — CAT8.1 + Tier 1 MM/SM Fiber + OTDR (SM/MM) + PoE (90W) + Multi‑Gig SNR (2.5/5/10G) Two TestPro CV100 platforms (calibrated) AD‑CAT8.1‑CH + AD‑CAT8.1‑PLE + AD‑NET‑CABLE + CAT6A MPTL adapters AD‑SM‑01 + AD‑MM‑01 kits, SM OTDR (1310/1550) + MM OTDR (850/1300) with 150m launch cords PROBE‑FIBER‑INSP scope, MM‑SC‑K01 + SM‑SC‑K01 kits, full reference cords & couplers 1G Ethernet (discovery, ping, traceroute), Wi‑Fi (optional Edimax adapter) TestDataPro (PC + Cloud), hard carry case + soft cases for fiber adapters Extended Care not included |
Delivery time from 12 weeks | from 19 900$ |
-
+
|
|
| TESTPRO‑K71E‑ECB | + Extended Care Kit Same as Smart Building PRO Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 20 795$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K71E using the special form.
You can buy AEM TESTPRO-K71E in UAE at a price starting from 19900 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K71E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
