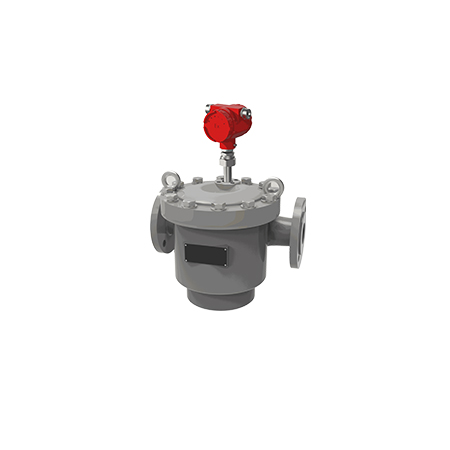

DDTOP LBTC Positive Displacement Rotary Vane Flow Meter

LBTC positive displacement rotary vane flow meter belongs to volumetric flow meter, which is one of the more accurate instruments in modern industrial liquid measurement.

			int(9836)
NULL


Made in China. brand DDTOP, model LBTC

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.

price by request

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of DDTOP LBTC

LBTC type scraper flowmeter belongs to the volumetric flowmeter, is one of the most accurate instruments for modern industrial liquid measurement. The flowmeter has a stable performance, insensitive to changes in the flow state of the upstream medium, by the viscosity of the medium changes in the influence of small, high precision measurement, good applicability, long service life and so on, has been widely used in modern industrial process control and trade settlement and other fields.

Principle of operation

In the measuring chamber of the flowmeter there are two or three pairs of rotating scrapers, in the groove of the rotor cylinder the scrapers slide radially under the action of the pressurised liquid. The scrapers are driven by the pressurised fluid and rotate with the rotor. The scrapers continuously divide the liquid into individual volumes, which are then measured by means of a drive mechanism and a counting indicator. The total volume of liquid is measured using the drive gear and counting indicator. See Figure 1 Schematic diagram of the LBTC scraper flow meter mechanism, its operation is as follows: When the scraper is in the position shown in Fig. 1.1, scrapers A and D stick out of the rotor and contact the inner wall of the metering chamber, while scrapers B and C are compressed in the rotor. When the fluid to be measured enters the flow meter, the scraper and rotor rotate clockwise. The rotor and scraper rotate one-eighth of the way i.e. when the scraper is in the position in Fig. 1.2, scraper A is still fully extended, scraper D starts to compress, scraper C is still fully compressed. Scraper B begins to extend. When the rotor and scraper are turned a quarter turn, i.e. when the scraper is in the position in Fig. 1.3, scrapers A and B are fully extended. At this point, the liquid to be measured fills the space comprising scrapers A, B, the rotor, the inner cavity of the housing and the upper and lower covers, and as the scrapers rotate. When the scraper is rotated in position

Translated with DeepL.com (free version)

Features

1.Stable performance, no vibration, no noise

2.Insensitive to changes in upstream medium flow

3.Almost unaffected by the viscosity of the medium

4.High accuracy, max can be up to 0.2

5.Withstand the high pressure, good applicability, long service life

6.Convenient installation, no need of straight pipe section, rectifier and other ancillary equipment, not affected by elbow, valve and other pipe fittings.

1.Stable performance, no vibration, no noise

2.Insensitive to changes in upstream medium flow

3.Almost unaffected by the viscosity of the medium

4.High accuracy, max can be up to 0.2

5.Withstand the high pressure, good applicability, long service life

6.Convenient installation, no need of straight pipe section, rectifier and other ancillary equipment, not affected by elbow, valve and other pipe fittings.

Applications

Refining: hydrocracking, isomerization

Crude Oil Treatment: metering station



Technical specifications of DDTOP LBTC

  • Basic Error: 0.2%;0.5%
  • Nominal Diameter: 25mm;50mm;80mm;100mm;150mm;200mm;250mm;300mm
  • Nominal Pressure: 2.5MPa; 4.0MPa; 6.4MPa
  • Medium Viscosity: 0. 6~500mPa.s (Dynamic viscosity)
  • Medium Temperature: -25℃≤T≤+250℃
  • Pressure Loss: Not more than 0.1 MPa (For example, the caliber is DN80)

How to buy DDTOP LBTC

Model Code Content
LBTC Scraper flowmeters
4 13 Nominal diameter: DN25mm
7 16 Nominal diameter: DN50mm
9 18 Nominal diameter: DN80mm
10 19 Nominal diameter: DN100mm
21 52 Nominal diameter: DN150mm
22 53 Nominal diameter: DN200mm
23 54 Nominal diameter: DN250mm
24 55 Nominal diameter: DN300mm
Q Body material: malleable cast iron
C Body material: carbon steel
P Body material: 304
2.5 Nominal pressure: 2.5MPa
4.0 Nominal pressure: 4.0MPa
6.3 Nominal pressure: 6.3MPa
ZN1 Smart meter with local indication and remote data transmission by pulse generation
ZN2 Smart meter with local indication, 4-20 mA output
ZN3 Smart meter with local indication, 4-20 mA output and pulse transmission for remote data transfer
i Intrinsically safe: ia II CT5 (for smart meters or pulse transmitters)
d Explosion protection: dⅡBT4 (for smart meters or pulse sensors)
LBTC-
Load More Items

Example:

LBTC-7Q2.5ZN1i for nominal diameter 50 mm, body material – ductile iron, nominal pressure 2.5 MPa, intelligent flow meter. On-site indication type, remote pulse transmission, intrinsically safe scraper flow meter.

User Guide and Instruction manual for DDTOP LBTC

You can request the necessary certificates, documentation, instructions and user guide for DDTOP LBTC using the special form.

You can buy DDTOP LBTC in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . DDTOP LBTC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
