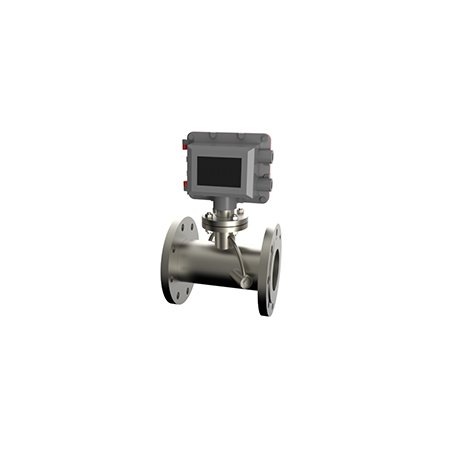

UFM ultrasonic flow meter is widely used in the long-term on-line measurement of various liquids, suitable for all dense pipes. The sensor of flow meter is divided into external clamp type, plug-in type and pipe section type, in which the external clamp type and plug-in type can be continuously and uninterrupted flow installation. The main engine can be installed in the indoor, instrument cabinet, the sensor is installed on the pipe, the main engine and sensor are connected by custom cable, the flow rate can be measured, and the ration temperature sensor can realize the heat measurement.
Made in China. brand DDTOP, model UFM
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Ultrasonic flowmeter is widely used in the long-term online measurement of various liquids, suitable for all dense pipes. The sensor of the flowmeter is divided into external clip type, insertion type and pipe section type, of which the external clip type and insertion type can be installed without pipe or flow. The host can be installed in the indoor, instrumentation cabinet, the sensor is installed on the pipe, the host and the sensor can be connected by custom cables, to achieve the flow measurement, equipped with temperature sensor can achieve the heat measurement.
It is widely used in power plant, metallurgy, chemical industry, water supply, heating, water conservancy, energy and other industries. It can be used for production monitoring, water network balance debugging, heat network balance debugging, energy-saving monitoring, and is an important flow measurement instrument in the production process.
Operating Principle
Ultrasonic flowmeter using the classic principle of time difference method, ultrasonic signal propagation in the fluid, the propagation speed will be affected by the medium flow rate, resulting in downstream and counter-current propagation time is different, in the same propagation distance, will produce propagation time difference, and then the introduction of other parameters, after further calculations you can get the flow.
Features
1.Unique waveform display interface, easy to quick install and locate the sensor;
2.Visual man-machine interface, easy to operate;
3.Ground metal sensor has stronger anti-interference ability;
4.Based on digital platform signal processing, high precision, strong anti-jamming ability, it can work well in harsh working conditions;
5.Housing is waterproof, dustproof, anti-oil pollution and a variety of liquids and dirt, it’s durable and the waterproof grade is IP67.
Applications
| Category | Performance / Parameter | |
| Main engine | Principle | Time difference correlation principle, correlation algorithm |
| Accuracy | Flow rate: better than ±1% | |
| Display | Adopt 4.3-inch LCD display, support Chinese and English switch | |
| Signal output | 1 way 4-20mA current output, impedance 0~1K, precision 0.1% | |
| Signal input | Connectable to 3-wire PT100 platinum resistors for heat measurement | |
| Data interface | Isolated RS485 serial interface for upgrading the flow meter via PC | |
| Specialized cables | Custom coaxial cables and aviation plugs for effective noise shielding | |
| Pipeline conditions | Tube | Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, glass fiber reinforced plastic and all other dense pipe, lining is allowed |
| Tube inner diameter | 50~3000mm | |
| Straight pipe section | The best sensor installation point to meet: upstream 10D, downstream 5D, 30D from the pump outlet (D is the diameter of the pipe) | |
| Measurement medium | categories | A single homogeneous liquid that conducts ultrasonic waves, such as water, seawater, industrial effluent, acid and alkaline solution, alcohol, various oils, etc. |
| Temperature | -30~160°C | |
| Turbidity | 10000ppm and small bubble content | |
| Flow rate | 0~±10m/s | |
| Working environment | Temperature | Main Unit: -40~70°C; Flow Sensor: -30~160°C |
| Humidity | Host: 85% RH; flow sensor: can be immersed in water, water depth ≤ 2m (Note: after sensor irrigation) | |
| Power supply | DC24V或AC85~264V | |
| Power consumption | ≤3W | |
| Model | Code | Content | |||||||||
| UFM – | Transonic flowmeter | ||||||||||
| A | External clip-on type | ||||||||||
| B | Plug-in type | ||||||||||
| C | Pipe type | ||||||||||
| 3 | PN16(1.6MPa) | ||||||||||
| 4 | PN20(CLASS150) | ||||||||||
| 5 | PN25(2.5MPa) | ||||||||||
| 6 | PN40(4.0MPa) | ||||||||||
| Note: The above is the operating pressure of the plug-in type / pipe section type, there is no limit to the operating pressure of the external clamp type | |||||||||||
| 7 | 16 | DN50 | 2” | ||||||||
| 9 | 18 | DN80 | 3” | ||||||||
| 10 | 19 | DN100 | 4” | ||||||||
| 21 | 52 | DN150 | 6” | ||||||||
| 22 | 53 | DN200 | 8” | ||||||||
| 23 | 54 | DN250 | 10” | ||||||||
| 24 | 55 | DN300 | 12” | ||||||||
| 25 | 56 | DN350 | 14” | ||||||||
| 26 | 57 | DN400 | 16” | ||||||||
| 27 | 58 | DN450 | 18” | ||||||||
| 28 | 59 | DN500 | 20” | ||||||||
| Note: The above is the diameter of the inserted type/pipe section type, and the maximum diameter of the external clamp type is DN3000 | |||||||||||
| 1 | Pipe material: 20 | ||||||||||
| H | Pipe material: stainless steel | ||||||||||
| Z | Pipe material: cast iron | ||||||||||
| B | Pipe material: FRP | ||||||||||
| P | Pipe material: PVC | ||||||||||
| Q | Other Materials: other | ||||||||||
| / | |||||||||||
| d | Explosion isolation type | ||||||||||
| W | No explosion-proof requirements | ||||||||||
| D | Medium temperature: -30≤T≤90℃ | ||||||||||
| G | Medium temperature: 90＜T≤160℃ | ||||||||||
| L | Liquid | ||||||||||
| G | Gas | ||||||||||
| UFM – | □ | □ □ □ / □ □ □ □ | |||||||||
UFM-A322T/WDLY
Explanation: Ultrasonic flowmeter for liquid, external clamp-on type, nominal pressure 1.6MPa, pipe diameter DN200, pipe material is carbon steel, no explosion-proof requirements, medium temperature: -30℃≤T≤90℃.
You can request the necessary certificates, documentation, instructions and user guide for DDTOP UFM using the special form.
You can buy DDTOP UFM in UAE at a favourable price in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email ceo@texair.eu. DDTOP UFM price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
