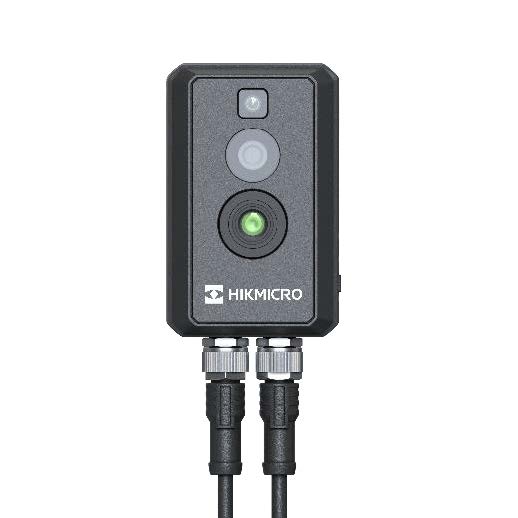

Hikmicro HM-TD3028T-2/Q Thermographic Cube Camera is able to measure object’s temperature at a high accuracy in real time. It is applied to fire prevention purpose in electric system, industrial automation and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.
| Image Setting | Rotate mode, brightness, contrast and AGC adjustable by client software or web browser |
| Compression Standard | |
| Video Compression | H.264 (Baseline/Main/High Profile) /MJPEG/H.265 |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Smart Function | |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) 0 °C to 550 °C (32 °F to 1022 °F) |
| Temperature Accuracy | Max (± 2 °C, ± 2%) |
| Temperature Measurement Rules | Display Max. and Min. temperature in live view; 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line). |
| Network | |
| Alarm Trigger | Video tampering alarm, Network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Interface | |
| Communication Interface | 1, RJ45 Ethernet port,10M/100M/1000M 1, RS-485 interface |
| Alarm | 2-ch relay output, alarm response actions configurable |
| Thermographic Integration | |
| External Optics Correction | Support Thermal Optical Transmittance and Manual Input External Optics Temperature; Support Calibration Coefficient calculation |
| Temperature Info. Of Thermographic Rule | Real-time Output; Time Interval: 500 ms |
| Temperature Info. of Image | Real-time Output; Default is 4 fps, 32 bit x 640 x 512 per frame; 16 bit and 32 bit are selectable |
| Capture Thermal Graphic | 32 bit 160 x 120 |
| Metadata Output | Max. 25 fps (16 bit 256 x 192) |
| System Function | |
| Lighting | Yes |
| Infrared Image | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 256×192 |
| Pixel Interval | 12 µm |
| Response Waveband | 8 µm to 14 µm |
| NETD | Less than 40 mK (@25 °C, F# = 1.0) |
| Focal Length | 2.1 mm |
| Focus Mode | Athermalized |
| Field of View | 90° x 64.2° (H x V) |
| IFOV | 5.71 mrad |
| Image Frequency | 25 fps |
| Aperture | F 1.0 |
| Min. Focusing Distance | 0.1 m |
| Optical Module | |
| Image Sensor | 1/5” Progressive Scan CMOS |
| Resolution | 2688 x 1520 |
| Focal Length | 1.4 mm |
| Min. Illumination | 0.06 Lux @ (2.2, AGC ON), 0 Lux with IR |
| Field of View | 96.9° x 77.2° (H x V) |
| Aperture | F 2.2 |
| Image Display | |
| Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Digital Zoom | x2, x4 |
| General | |
| Menu language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power Supply | 12 VDC, Max. 5 W PoE (802.3af, class 2) |
| Working Temperature and Humidity | -20 °C to 60 °C (-4 °F to 140 °F) 95% or less |
| Protection level | IP67 |
| Weight | Approx. 335 g (0.74 lb) |

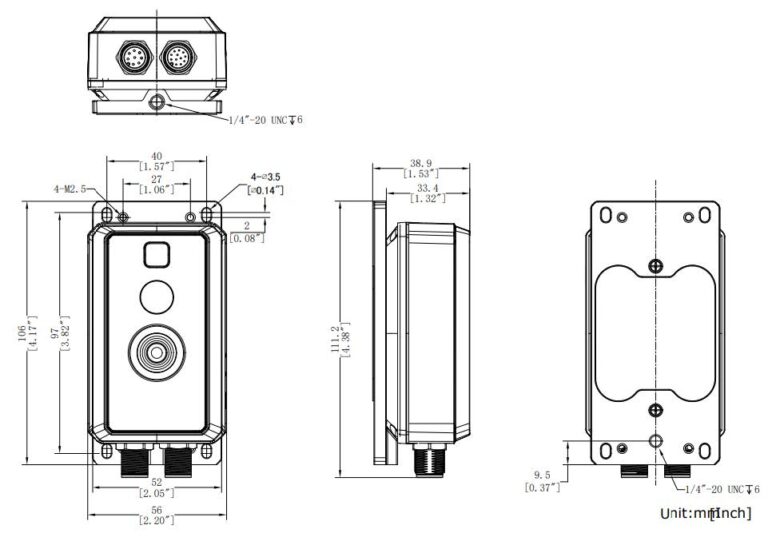

| Dimension | 56 mm x 38.9 mm x 111.2 mm (2.20° x 1.53° x 4.38°) |
| Image | |
| Main Stream | Thermal channel: 25 fps (1280 x 960) Optical channel: 25 fps (2688 x 1520) |
| Sub Stream | Thermal channel: 25 fps (704 x 576) Optical channel: 25 fps (704 x 576) |
Range Table
| Temperature Measurement (Object: 0.2 x 0.2 m) | Temperature Measurement (Object: 0.5 x 0.5 m) |
| 7m | 17.5m |
| Photo | Model | Description |
|---|---|---|
|
DS-2920ZJ | Bracket for Thermographic Cube Camera |
|
DS-2924ZJ | Cube Camera PT Bracket |
