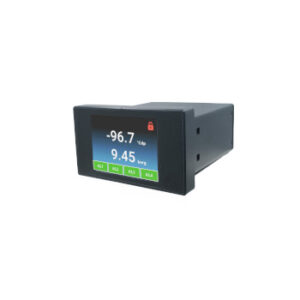

Versatile Dew-Point hygrometer with pressure compensation
Made in United Kingdom. brand Michell, model Easidew Advanced Online
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

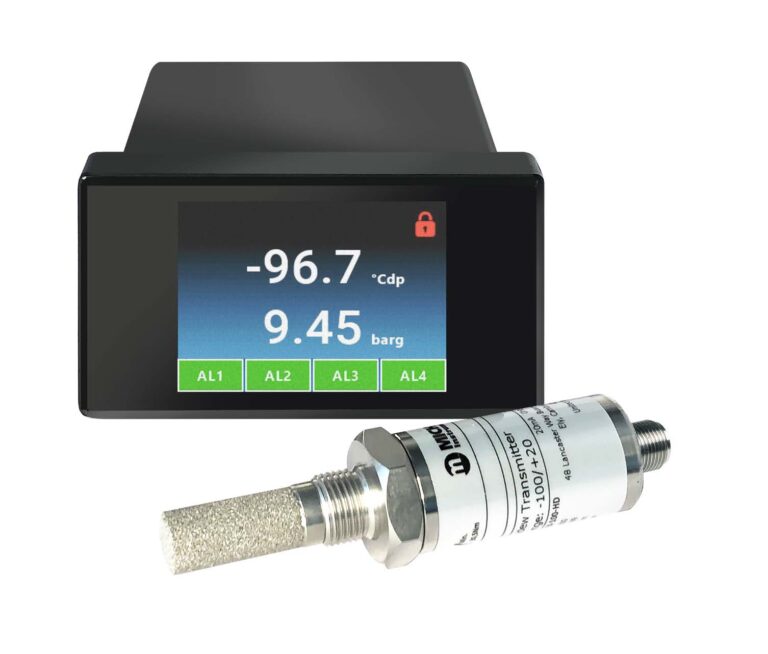

Easy to install and configure, the versatile touch screen Easidew Advanced Online Hygrometer can measure and display dew point, moisture content, and pressure. This display provides analog, digital, and 4 programmable relay alarm outputs with a front screen or software app display configuration.
With high performance 1% accuracy for use in Compressed Air and Gas Generation applications.
Applications
| Performance Specifications | |
| Measurement Range | -110…+20 °C (-166…+68 °F) dew point; -100…+20 °C (-148…+68 °F) dew point |
| Accuracy * | ±1 °C from -60 to +20 °C dew point (±1.8 °F, -76…+68 °F dp) ±2 °C from -100 to -60 °C dew point (±3.6 °F, -148…-76 °F dp) |
| Response Time | 5 mins to T95 (dry to wet) |
| Repeatability | 0.5 °C (0.9 °F) dew point |
| Sensor Calibration | Traceable 13-point calibration certificate |
| Auxiliary Pressure Input | 52.5 MPa (525 barg/7614 psig) maximum |
| Pressure Compensation | Live 4…20 mA pressure transmitter or fixed programmable value |
| Moisture Content Scales | Automatic compensation for ppmV, lbs/MMscf, g/m3 units |
| Relay Alarm Type/Rating | 2 x Form A, 2 x Form C 30 V DC 5A Namur compliant programmable relay outputs for process and fault conditions |
| Electrical Specifications | |
| Sensor Input Signal | Modbus RTU over RS485 |
| Online Output Signals | 3 x 4…20 mA channels; Modbus RTU over RS485; 4 programmable relay alarms |
| Online Outputs | Dew point, Moisture Content, Pressure |
| Maximum Analog Output Scaled Range | Dew point: -110…+20 °C (-166…+68 °F); Moisture content in gas: 0…3000 ppmV |
| Online Supply Voltage | 85…265 V AC; 18…30 V DC |
| Online Power Consumption | AC Power: 7.8 VA (2.89 W) DC Current: 170 mA @24 V DC |
| Electrical Safety | BS/EN61010-1: 2010 |
| Operating Specifications | |
| Operating Temperature | Sensor: -40…+60 °C (-40…+140 °F); Process Monitor: 0…+70 °C (+32…+158 °F) |
| Compensated Temperature Range | Sensor: -20…+50 °C (-4…+122 °F); Process Monitor: not applicable |
| Storage Temperature | Sensor: -40…+60 °C (-40…+140 °F); Process Monitor: 0…+85 °C (+32…+185 °F) |
| Operating Pressure | 52.5 MPa (525 barg/7614 psig) maximum |
| Sensor Flow Rate | 1…5 Nl/min mounted in standard sampling block; 0…10 m/sec direct insertion |
| Mechanical Specifications | |
| Ingress Protection | Sensor: IP66 in accordance with standard BS EN 60529:1992+A2:2013; NEMA 4 protection in accordance with standard NEMA 250–2014 Process Monitor: IP54 & NEMA Type 2 & 12K front panel only |
| System Materials | Sensor & Sample Block: 316 stainless steel Process Monitor: UL Rated ABS – EpsotechAB AN2 V0 |
| Dimensions | Sensor: L=119 x ø27 mm / L=4.69” x ø1.06” (no connector cable) Process Monitor: 1/8 DIN Case, 90 x 40 x 92 mm / 3.54 x 1.57 x 3.62” (w x h x d) Sample Block: 55.2 x 30 mm / 2.17 x 1.18” |
| Filter (Sensor Protection) | Standard: HDPE <10µm Optional: 316 stainless steel sintered guard <80µm |
| Sensor/Sample Block Process Connections | G1/2” BSP, 3/4” 16 UNF, 5/8” 18 UNF |
| Sample Block Inlet/Outlet Connections | 1/8” NPT |
| System Weights | Sensor: 150 g (5.29 oz); Sample Block: 250 g (8.82 oz); Process Monitor: 280 g (9.88 oz) |
| Sensor Electrical Connections | Easidew M12: M12 5 pin (A Coded) |
| Online Sensor Cable | 2, 5, 10 meter (6.5, 16.4, 32.81 ft) connector/cable available |
| Display Type | LCD touch screen 320 x 240 pixel |
You can request the necessary certificates, documentation, instructions and user guide for Michell Easidew Advanced Online using the special form.
You can buy Michell Easidew Advanced Online in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Easidew Advanced Online price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
