The SF82 Online has been developed as a fast-response, quick-to-install hygrometer system for the complete dew-point measurement range of -60 up to +60 °C dew point, which covers many moisture measurement applications.
Applications
| Performance Specifications | |
| Measurement Range | -60 to +60°C (-76 to +140°F) dew point; -50 to +50°C (-58 to +122°F) dew point; -50 to +30°C (-58 to +86°F) dew point; non-standard dp ranges and ppmV ranges available on request |
| Accuracy | ±2°C (±3.6°F) dew point* |
| Response Time | T95 to -60°C (-76°F) dew point in <3 minutes |
| Repeatability | 0.5°C (0.9°F) dew point |
| Sensor Calibration | Traceable 9-point calibration certificate |
| Electrical Specifications | |
| Online Output Signals | 4–20 mA or 0–20 mA; Modbus RTU over RS485; dual programmable relay alarms |
| Online Output | Dew point |
| Maximum Analog Output Scaled Range | Dew point: -80 to +20°C (-112 to +68°F) |
| Online Supply Voltage | AC: 85 to 264V AC |
| Online Current Consumption | 60 mA maximum |
| Electrical Safety | EN61010-1 |
| Operating Specifications | |
| Operating Temperature | Sensor: -20 to +60°C (-4 to +140°F); Monitor: 0 to +50°C (+32 to +122°F) |
| Compensated Temperature Range | Sensor: -20 to +50°C (-4 to +122°F); Monitor: not applicable |
| Storage Temperature | Sensor: -40 to +60°C (-40 to +140°F); Monitor: -10 to +60°C (+14 to +140°F) |
| Operating Pressure | 10 MPa (100 barg / 1450 psig) maximum |
| Sensor Flow Rate | 1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion |
| Mechanical Specifications | |
| Ingress Protection | Sensor MiniDIN: IP66 in accordance with standard BS EN 60529:1992+A2:2013; NEMA 4 protection in accordance with standard NEMA 250–2014 Sensor M12: IP65 Monitor: IP65 (NEMA 4X) front panel only |
| Sensor Housing Material | 316 stainless steel |

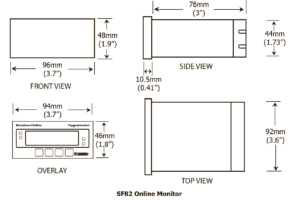

| Dimensions | Sensor MiniDIN: L=133mm x ø45mm / L=5.24” x ø1.77” (with connector cable) Sensor M12: L=156mm x ø45mm / L=6.14” x ø1.77” (with connector cable) Monitor: 1/8 DIN Case, 96 x 48 x 85mm / 3.78 x 1.89 x 3.35” (w x h x d) |
| Filter (Sensor Protection) | Standard: HMWPE <10µm |
| Sensor Process Connection | 5/8” – 18 UNF, 3/4” – 16 UNF, G1/2” BSP |
| KF40 Flange Accessories | Flange for 5/8” 18 UNF and 3/4” 16 UNF process connections |
| Sensor Weight | 150 g (5.29 oz) |
| Sensor Electrical Connections | MiniDIN 43650 form C, M12 5 pin (A coded) |
| Online Sensor Cable | 0.8, 2, 5, 10 meter (2.62, 6.5, 16.4, 32.81 ft) connector/cable available |
| Sensor Diagnostic Conditions (factory programmed) | Sensor fault: 23 mA Under-range dew point: 4 mA Over-range dew point: 20 mA |
NOTES * Over Compensated Temperature Range
