Dew-Point Measurement in Modular System Configurations
Made in United Kingdom. brand Michell, model ES20
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

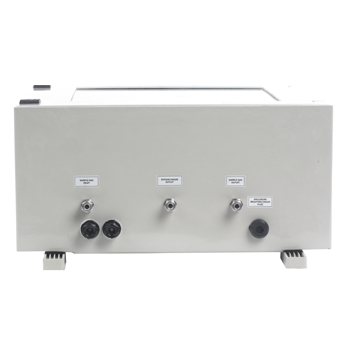

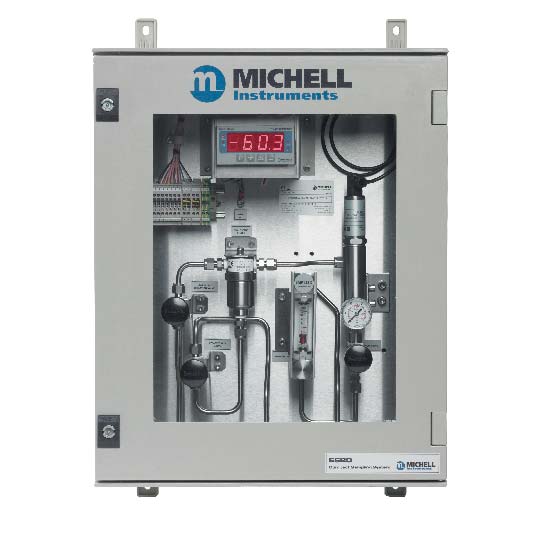

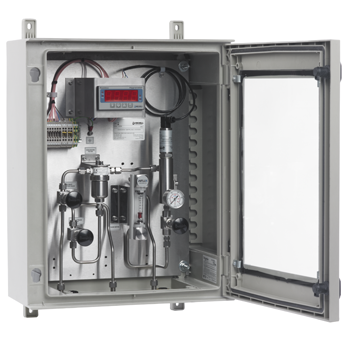

The ES20 Compact Sampling System is designed to reliably and accurately measure dew point or moisture content in a wide variety of industrial gas applications up to 20 barg. This sampling system is an economical and high-quality solution with a short lead time.
Applications
| Electrical Specifications | |
| Supply voltage (vacuum pump only) | 230 V AC** |
| Operating Specifications | |
| Operating temperature | ES20 fitted with: Particulate or coalescing filter without monitor: -15 to +60°C (+5 to +140°F) Particulate or coalescing filter with monitor: 0 to +50°C (+32 to +122°F) Vacuum pump with or without monitor: 0 to +40°C** (+32 to +104°F**) |
| Operating inlet pressure | ES20 fitted with: Particulate filter: 0 to 20 barg (0 to 290 psig) Coalescing filter: 0 to 20 barg (0 to 290 psig) Vacuum pump: -0.3 bar to 1 barg** (-4.4 to 14.5 psig**) |
| Flow rate | 1 to 5 Nl/min (2.1 to 10.6 scfh) |
| Mechanical Specifications | |
| Process connection and material | Inlet/outlet process connections via 6mm or 1/4” tube fittings, 316 stainless steel |
| Gas wetted parts | Stainless steel tube, filter housing and fittings (316 stainless steel), Filter element (borosilicate glass microfibres), Transmitter sample block (316 stainless steel), Flowmeter (borosilicate glass) with Viton® seals, Pump (Teflon®) |
| Ingress protection | No enclosure: No protection (base plate only) GRP & SS enclosures: IP66, NEMA 4X |
| Housing material | Base plate: 316 stainless steel GRP enclosure: Glass fibre reinforced polyester and 4mm safety glass SS enclosure: 316 stainless steel and 4mm safety glass |
| Dimensions | Base plate: 457mm x 350mm x 2mm (18” x 14” x 0.07”) (h x w x d) GRP enclosure: 530mm x 430mm x 200mm (21” x 17” x 8”) (h x w x d) SS enclosure: 500mm x 400mm x 200mm (20” x 16” x 8”) (h x w x d) |
| Pressure and flow control | Atmospheric or process pressure: Via metering valves, pressure gauge and flowmeter Vacuum pressure: Metering valve, pressure gauge, flowmeter with valve and self-regulating vacuum pump** |
| Gas filtration | Particulate filter: Borosilicate glass microfibres (99.5+% removal of 0.1 micron particles) Coalescing filter: Borosilicate glass microfibres (99.5+% removal of 0.1 micron particles and aerosols) |
| Electrical connections | Base plate: Via terminal rail GRP and SS enclosure: Via M20 plastic cable glands |
| Interchangeability | Fully interchangeable components |
| Sample block process connection | Compatible with various dew-point transmitters with 5/8” and 3/4” UNF process connection |
| Dew-Point Measurement Specifications (Optional)* | |
| Measurement range (dp) | -100 to +20°C (-148 to +68°F) dew point, -110 to +20°C (-166 to +68°F) dew point |
| Accuracy (dp) | Up to ±1°C (±1.8°F) dew point, Up to ±2°C (±3.6°F) dew point |
You can request the necessary certificates, documentation, instructions and user guide for Michell ES20 using the special form.
You can buy Michell ES20 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell ES20 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
