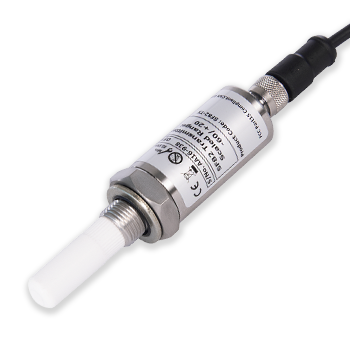

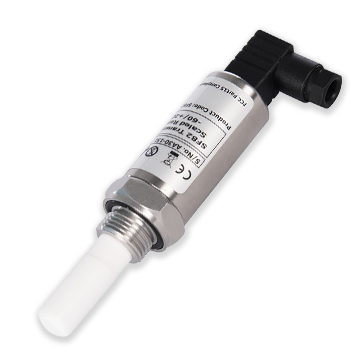

Fast Response Moisture Meter with Multiple Process Connections.
Made in United Kingdom. brand Michell, model SF82
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The SF82 is a fast-responding moisture sensor for control of dew-point and moisture content in compressed air dryers to maximize energy efficiency. Compressor rooms are often hot with temperatures reaching +50 °C (+122 °F). The SF82 is capable of reliably providing fast, accurate dew-point measurements down to -60 °C (-76 °F) dew point even in these challenging conditions.
The SF82 industrial transmitter incorporates the latest Process Sensing Technologies advanced thick-film polymer moisture sensing technology to provide fast, stable and repeatable humidity measurements for all dew-point dryer applications.
It is available with a range of process connections and electrical connectors for easy installation. SF82 dew-point transmitters are included in our service exchange program which reduces both downtime and the cost of maintenance.
Reconfiguration is simple with the self-contained Easidew and Pura communications kit.
Suitable Applications
Dew-point measurements for:
| Product | SF82 MiniDIN 43650 C | SF82 M12 |
| Performance Specifications | ||
| Measurement range | -60 °C…+60 °C (-76 °F…+140 °F) dew point | |
| Accuracy | ±2 °C (±3.6 °F) dew point* | |
| Response time | 63% at room temperature at 1 bara (14.5 psia)
-60 °C…-20 °C (-76 °F…-4 °F) dew point: 6 s -20 °C…-60 °C (-4 °F…-76 °F) dew point: 40 s |
|
| Repeatability | 0.5 °C (32.9 °F) dew point | |
| Calibration | 9 point calibration certificate traceable to national standards | |
| Electrical Specifications | ||
| Output signal | User configurable over range; 4-20 mA (2 wire connection, current source) | User configurable over range; 4-20 mA (2 wire connection, current source) Modbus RTU over RS485 digital communications |
| Moisture Output | Dew point or moisture content | |
| Temperature Output | Not available | Data via Modbus RTU |
| Analog output scaled range 4-20 mA (Dew point) | -60 °C…+60 °C (-76 °F…+140 °F) dew point
-50 °C…+50 °C (-58 °F…+122 °F) dew point -50 °C…+30 °C (-58 °F…+86 °F) dew point -80 °C…+20 °C (-112 °F…+68 °F) dew point -20 °C…+50 °C (-4 °F…+122 °F) dew point (Non-standard ranges available on request) |
|
| Analog output scaled range 4-20 mA (Moisture content in gas) | 0…24000 ppmv (Non-standard ranges available on request) | |
| Supply voltage | 6.5…28 V DC | 5…28 V DC |
| Load resistance | Max 250 Ω @ 12 V (500 Ω @ 24 V) | |
| Current consumption | 23 mA max | Analog only 23 mA max, Digital only 6 mA max |
| IEC61010-1, UL61010-1 & CAN/CSA C22.2 No. 61010 | IEC61010-1, UL61010-1 & CAN/CSA C22.2 No. 61010 EN61373 Rail Rolling Stock EN50121-3-2: 2016 Rail EMC/RFI | |
| Electrical Safety | ||
| Operating Specifications | ||
| Operating temperature | -20 °C…+60 °C (-4 °F…+140 °F) | |
| Compensated temperature range | -20 °C…+50 °C (-4 °F…+122 °F) | |
| Storage Temperature | -40 °C…+60 °C (-40 °F…+140 °F) | |
| Maximum Operating pressure | 10 MPag (100 barg/1450.38 psig) maximum | |
| Pressure Safety Rating | 45 MPag (450 barg/6526.7 psig) maximum | |
| Flow rate | 1…5 Nl/min mounted in standard sampling block; 0…10 m/sec direct insertion | |
| Mechanical Specifications | ||
| Ingress protection | IP66 in accordance with BS EN 60529 (current version);
NEMA 4 ingress protection in accordance with NEMA 250 (current version) |
IP65 |
| Housing material | 316 stainless steel | |
| Dimensions | L = 133 mm x ø45 mm (5.24” x ø1.77”) (with connector cable) | L = 156 mm x ø45 mm (6.14” x ø1.77”) (with connector cable) |
| Filter (sensor protection) | Standard: HMWPE <10 µm Optional: 316 stainless steel sintered guard <80 µm | |
| Process connection | 5/8” 18 UNF
3/4” 16 UNF G1/2” BSP |
|
| KF40 Flange Accessories | Flange for 5/8” 18 UNF & 3/4” 16 UNF process connections | |
| Weight | 150 g (5.29 oz) (excluding connector cable) | |
| Electrical connections | MiniDIN 43650 form C | M12 5 pin (A coded) |
| Mating Electrical Connectors | Mating connector supplied as standard
Optional 0.8, 2, 5, 10 metre (2.62, 6.56, 16.4, 32.81 foot) MiniDIN connector/cable available |
Optional 0.8, 2, 5, 10 metre (2.62, 6.56, 16.4, 32.81 foot) M12 A coded connector/cable available |
| Analog Output Diagnostic conditions (factory programmed) | Sensor fault: 23 mA
Under-range dew point: 4 mA Over-range dew point: 20 mA |
|
NOTES * Over Compensated Temperature Range
You can request the necessary certificates, documentation, instructions and user guide for Michell SF82 using the special form.
