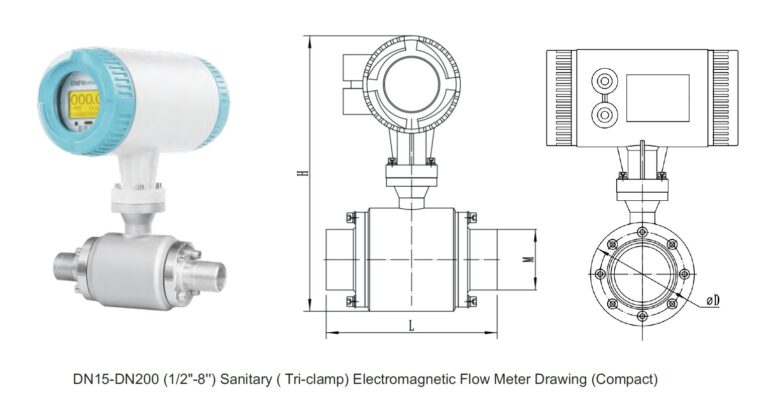

QTLD/L tri-clamp magnetic flow meter is designed for sanitary applications, size is DN15-DN200, the sensor is SS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easily to clear, it meet the strict requirements of food-processing and pharmaceutical industries.
Made in China. brand Q&T Instrument, model QTLD/L
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Applications:
Food Processing CIP/SIP
Industries Process or Industry
Pharmaceutical Industry
Food and Beverage Industry
Filling and metering of infusion products such as saline and glucose water.
Filling and metering of liquid foods such as vegetable juice, juice, beer.
Features
It adopts harmless food grade stainless steel as raw material, so it can contact with food directly.
It is easy to clean, customer just need open the tri-clamp and dismantle the flow meter.
It has current output and pulse output for connecting with PLC or other devices. And user can also read flow measurement by RS485/HART/Profibus.
Stainless steel material has long service life, and it can be used to measure most of drinks.
| Size | DN15-DN200 (1/2″-8″ ) |
| Accuracy | ±0.5% of reading at flow rate ≥ 0.5m/s ±0.2% optional at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |

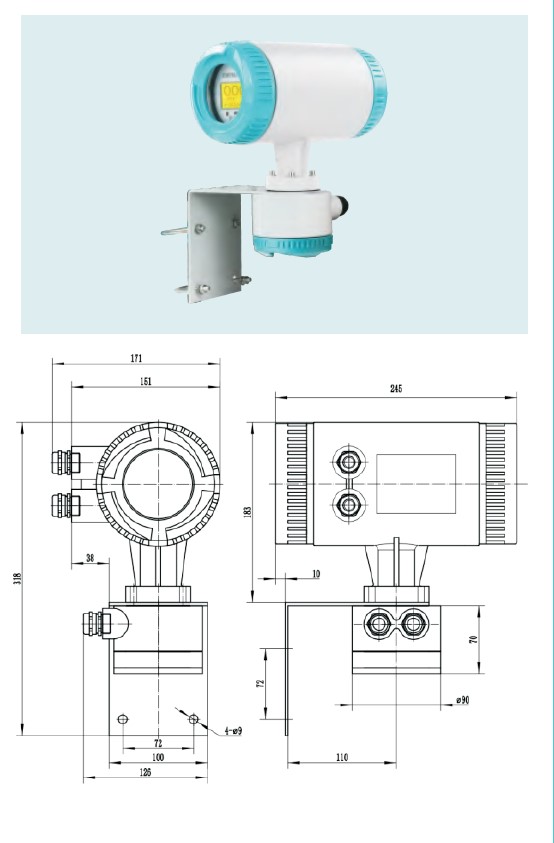

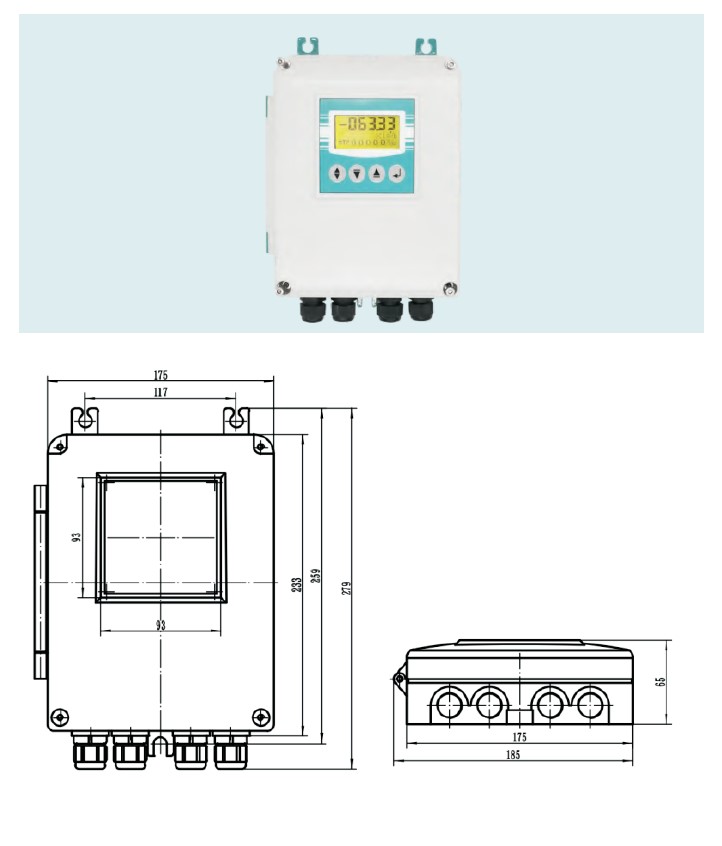

| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Transmitter: IP65 standard, IP67 optional |
| Sensor: IP65 std, IP68 (submersible, only available for remote type) | |
| Electrode | SS316L |
| Power Supply | 85~250 VAC (50/60 HZ), 20~36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20mA ( load resistor 0~750Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃ Remote: -20℃~120℃ |
| Liner Material | PFA |
| Sensor Material | Measuring tube: SS304 |
| Tri-clamp & housing: SS304 standard, SS316 optional | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | 1.6 Mpa |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm,self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
| Language | English, Chinese, Italian, Portuguese, French, Spanish, Korean |
| Process Connection | Male thread, female standard, G thread standard, NPT, BSP and other thread standard can be customized |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/L using the special form.
