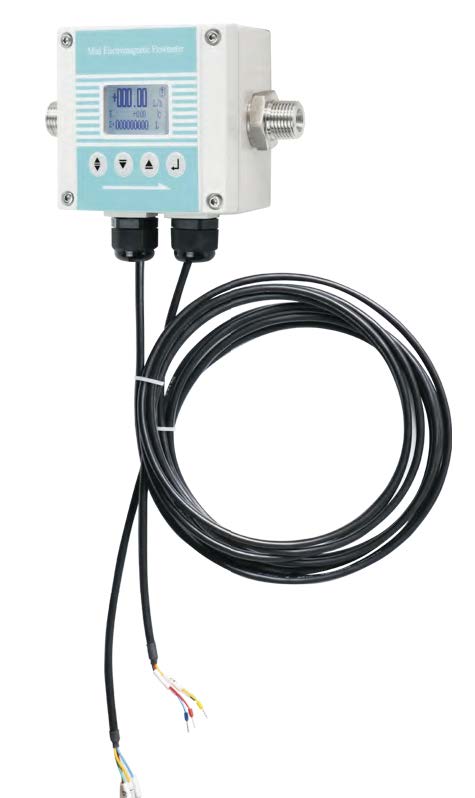

QTLD/M mini magnetic flow meter is an economical option for small pipe size compared with other process connection, it includes transmitter and sensor, Which enjoy the advantages of small and compact, no moving parts, maintenance-free, save the installation space and reduce freight costs etc.
Made in China. brand Q&T Instrument, model QTLD/M
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The Magmeters is ideal for use in the field of mechanical engineering and plant construction. It has DN3 /DN6/DN10/DN15 size, 4-20mA, Pulse and RS485 Modbus available.
Features
| Size | DN3, DN6, DN10, DN15 |
| Accuracy | ±0.5% of reading at flow velocity ≥ 0.5m/s |
| Velocity | 0.3~15 m/s |
| Structure | Compact |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | IP65 |
| Electrode | SS316L, Hastelloy C, Titanium |
| Power Supply | 85~250 Vac (45~63Hz), 16~30 Vdc |
| Power Consumption | <15W |
| Signal Output | 4~20mA ( load resistor 0~75Ω), Pulse ( 0~5K Hz) |
| Communication | RS485 MODBUS |
| Ambient Temperature | -10℃~55℃ |
| Fluid Temperature | -10℃~60℃ |
| Sensor Material | Measuring tube: PEEK |
| Process connection | Thread, G1/2″, 1/2″NPT, 1/2″ BSP, G3/8″ for DN3 and DN6 (optional) |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | 1.6 Mpa |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, mass flow unit: kg/s, kg/m, kg/h,t/s, t/m, t/h |
| Language | English, Chinese |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/M using the special form.
You can buy Q&T Instrument QTLD/M in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Q&T Instrument QTLD/M price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
