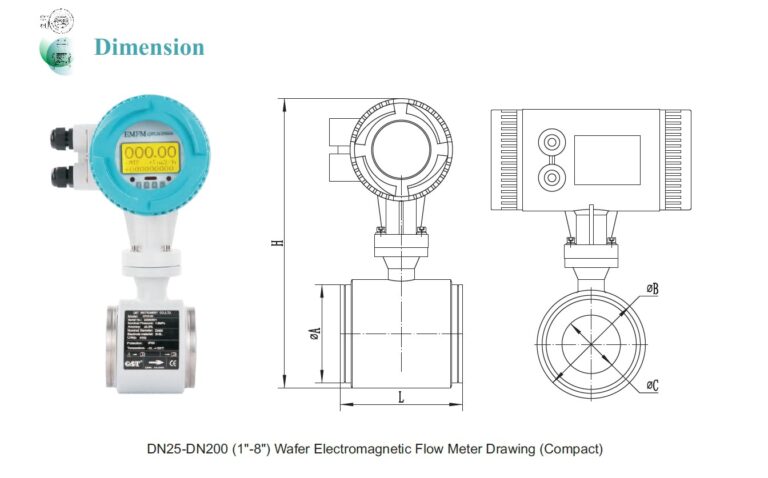

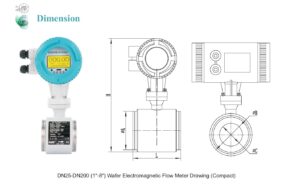

QTLD/W wafer electromagnetic flow meter is designed with flangeless structure for minimum size and weight. Eliminate gaskets and prevent moisture ingress with an all-welded sensor. No moving parts, which reduced the maintenance and repair with an obstructionless design. Alignment rings are available to install easily.
Made in China. brand Q&T Instrument, model QTLD/W
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Features
| Size | DN25-DN200 /1″-8″ |
| Accuracy | ±0.5% of reading at flow rate ≥ 0.5m/s, ±0.2% optional at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |
| Structure | Compact / remote, Cable length 10 m standard, 100 m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Transmitter: IP65 standard, IP67 optional |
| Sensor: IP65 standard, IP68 (submersible, only available for remote type) | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinum-iridium |
| Power Supply | 85~250 VAC (50/60 Hz) 20~36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20 mA (load resistor 0~750 Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS std, HART, GPRS, PROFIBUS optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20°C~60°C |
| Fluid Temperature | Compact: -20°C~80°C |
| Remote: -20°C~120°C | |
| Liner Material | PTFE FEP PFA |
| Sensor Material | Carbon steel (standard) |
| SS304 / SS316 optional | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | 1.6 Mpa |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
| Language | English, Chinese, Italian, Portuguese, French, Spanish, Korean |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/W using the special form.
