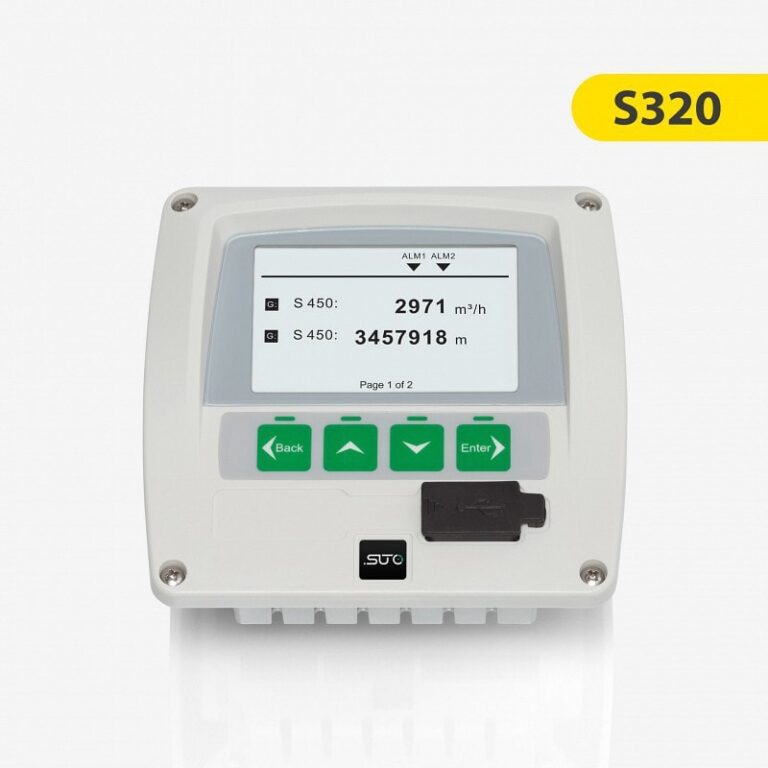

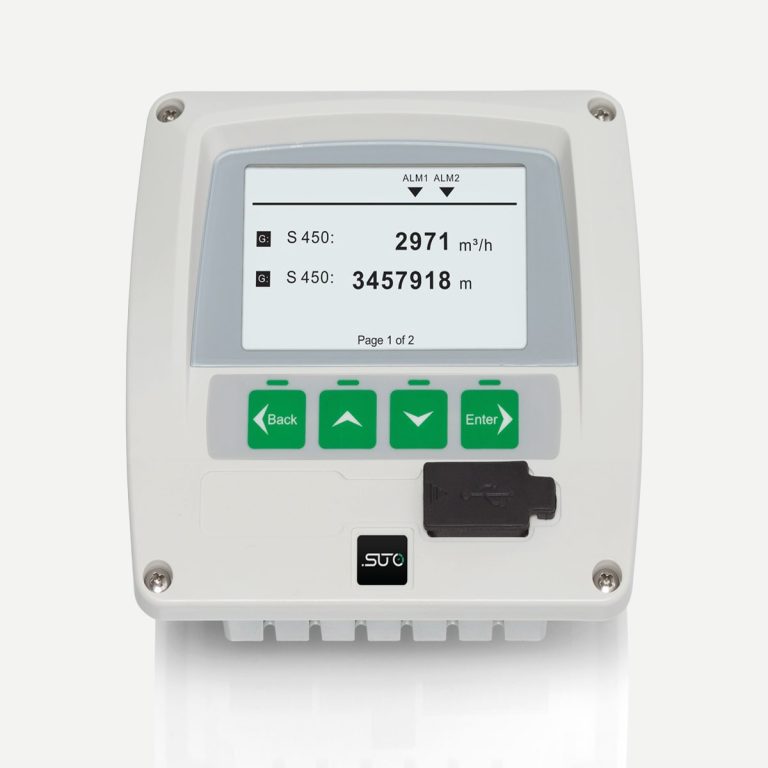

The S320 Display for compressed air and gas sensors provide a cost-efficient display solution for industrial applications. The display has an input for SUTO flow meters and dew point sensors. It also comes with an analog sensor input (0… 20 mA, 0… 10 V).
It helps operators the easily view measurement data of sensors that are placed in hard-to-reach locations.
Made in Germany. brand SUTO, model S320
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $752
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

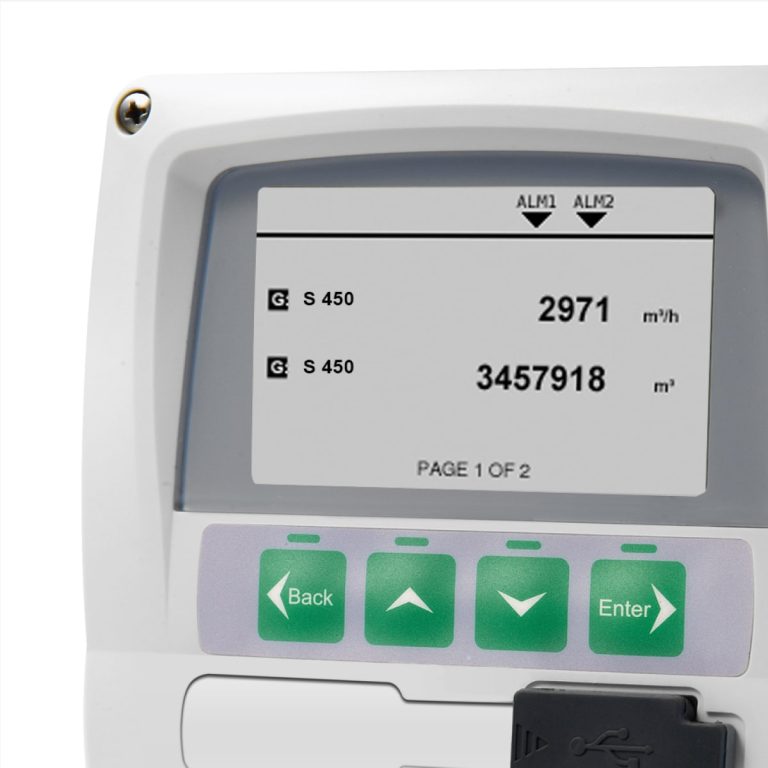

The S320 display is a cost‑effective solution for data visualization in industrial applications, particularly where displaying information from a single difficult‑to‑access sensor is required. The device features an input for connecting SUTO flow meters or dew point sensors, providing convenient local monitoring without the need to access the remote sensor installation location.
The display shows all key parameters of a compressed air system: flow rate, dew point, pressure, temperature, power consumption, compressor status, and other values. This allows operators to instantly assess the system condition and respond quickly to changes.
The S320 provides convenient and clear access to measurement data from sensors installed in remote, elevated, or hard‑to‑reach points, reducing maintenance time and increasing monitoring efficiency.
Features
| SIGNAL / INTERFACE & POWER SUPPLY | |
| Input signals | |
| Digitaler Eingang | 1 x SDI for dew point and flow sensors |
| Analoger Eingang | 1 x 0 … 20 mA or 1 x 4 … 20 mA or |
| Impulseingang | 1 x 0 … 10 V |
| Output signals | |
| Alarm-Ausgang | 2 Relais, 230 VAC, 3 A |
| Electrical data | |
| Power supply | 100 … 240 VAC, 15 VA (Option A1640) 18 … 30 VDC, 15 VA (Option A1641) |
| Sensor supply | 24 V, 10 W |
| Data interface | |
| Connection | USB to PC |
| Operation | Keyboard, 4 keys |
| GENERAL DATA | |
| Configuration | |
| PC Software | S4C-Display software |
| Display | |
| Integrated | Size: 5″ high-resolution graphic display Resolution: 800 x 480 pixels touch screen |
| Material | |
| Housing | PC + ABS |
| Miscellaneous | |
| Protection class | IP65 |
| Approvals | CE |
| Housing | Panel, wall mountable |

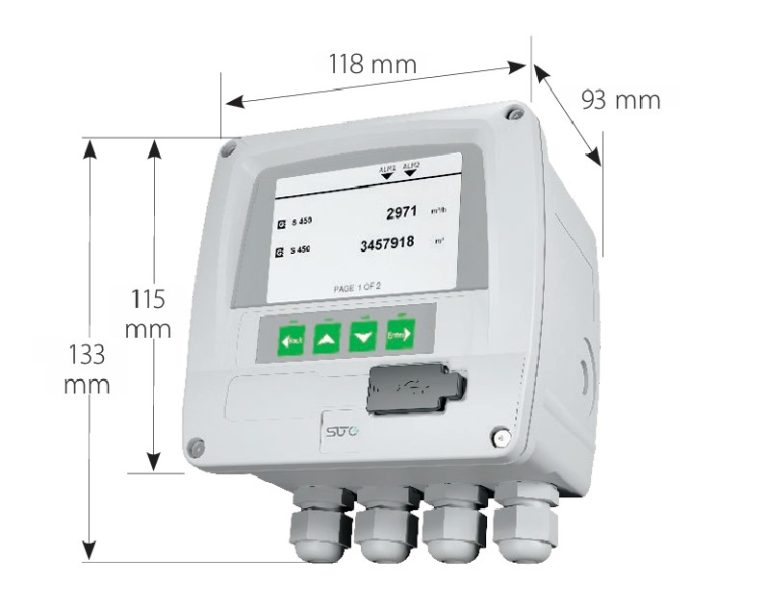

| Dimensions | See dimensional drawing |
| Cable entry diameter | 4.5 … 8 mm |
| Cable | Supply: AWG 12 … AWG 24, 0.2 … 2.5 mm²; Signals: AWG 16 … AWG 28, 0.14 … 1.5 mm² |
| Weight | 0.52 kg |
| Operating conditions | |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | < 90 % |
| Storage temperature | -20 … +70 °C |
| Transport temperature | -30 … +70 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 0320 | S320 Display, base unit, panel version, 1 SDI input for dew point/flow sensors, 1 analog input | Delivery time from 12 weeks | On request |
-
+
|
|
| A1640 | S320: Power supply 100 … 240 V AC, 15 VA, 2 Relay outputs for S320 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1641 | S320: Power supply 18 … 30 V DC, 20 W, 2 Relay outputs for S320 | Delivery time from 12 weeks | On request |
-
+
|
|
| A1645 | S320: Wall mountable casing with 4 cable glands | Delivery time from 12 weeks | On request |
-
+
|
|
| A1649 | S320: No wall casing (panel mount) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0104 | Sensor cable 5m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0105 | Sensor cable 10m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0106 | Power cable with mains plug, 1.8 m | Delivery time from 12 weeks | On request |
-
+
|
