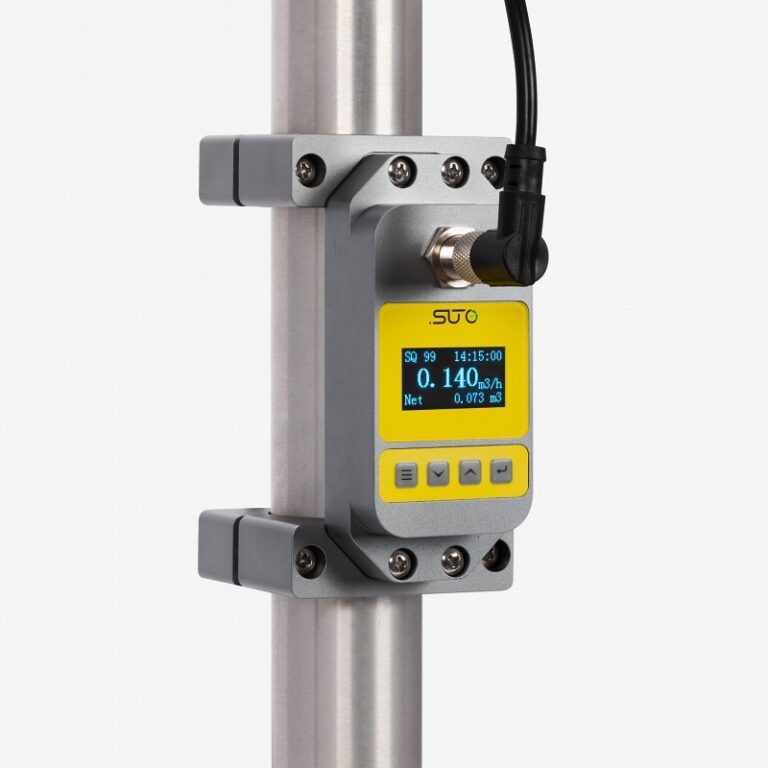

The SUTO S462 Clamp-On Ultrasonic Flow Sensor for Water and Other Liquids offers our users a highly economical and easy to install liquid measurement solution. The Flow Sensor is available for pipe sizes from DN10 to DN40. The S462 provides accurate liquid flow and consumption measurement without causing process downtime, pressure loss or contamination of the medium to be measured.
Made in Germany. brand SUTO, model S462
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 658
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The SUTO S462 ultrasonic clamp-on flow sensor for water and other liquids is a highly cost-effective and easy-to-install solution for measuring liquids. The sensor is available for pipes with diameters ranging from DN10 to DN40. The S462 provides accurate measurement of flow rate and fluid consumption without interrupting the process, causing pressure loss, or contaminating the measured medium.

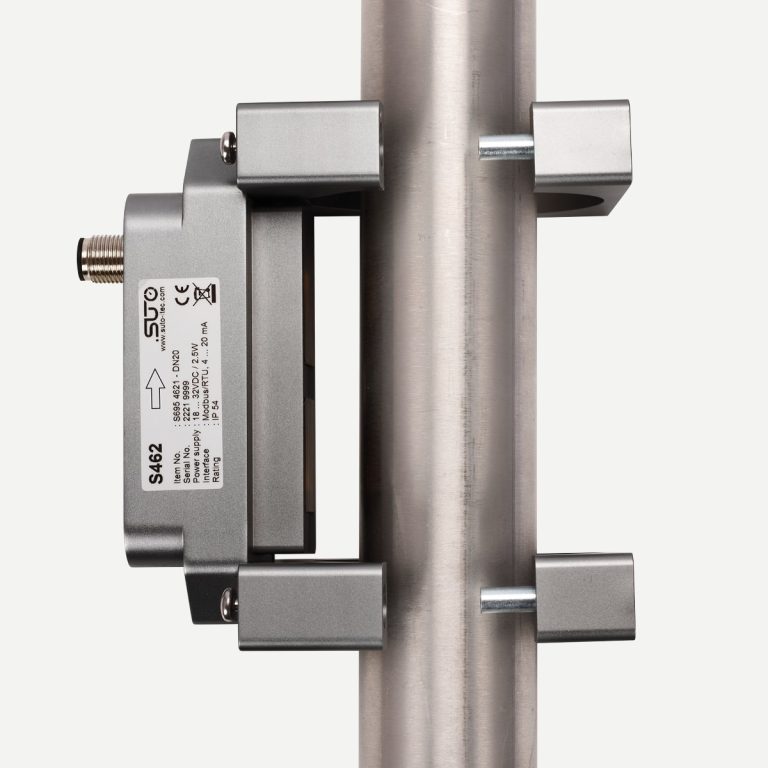

Installation takes only a few minutes thanks to the clamp-on technology. The compact design allows the sensor to be installed even in confined spaces.
The S462 flow sensor connects to any monitoring system via an analog output and/or Modbus/RTU interface. The S462 is also compatible with SUTO’s S331 and S551 displays and data loggers.

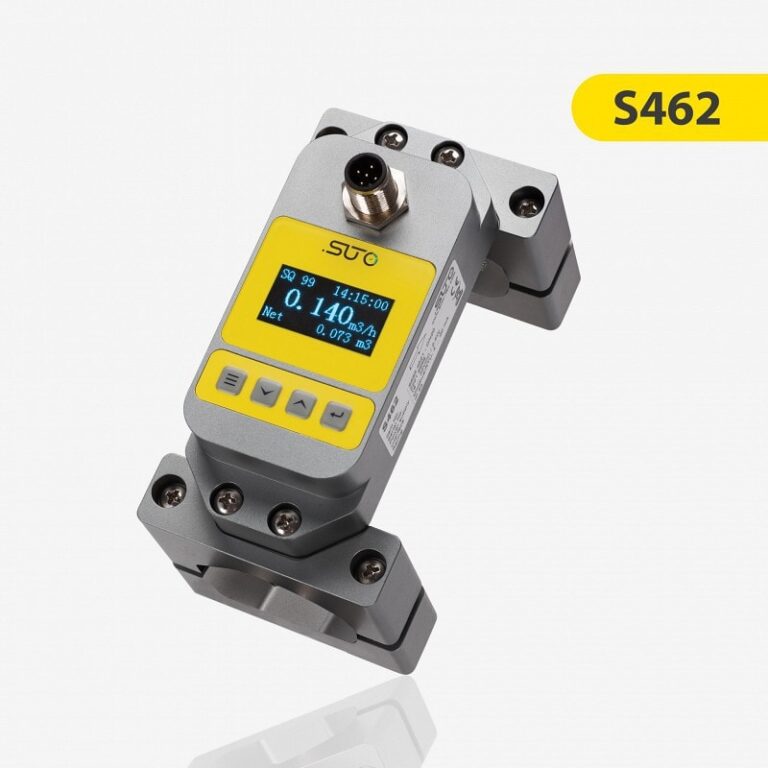

Equipped with an OLED display and keypad, the S462 allows for easy on-site parameter configuration. Settings can be locked to prevent unintended changes. The display orientation can be inverted for easy readability regardless of the installation direction. The S462 stores daily, weekly, and monthly consumption statistics over a long period of time, which can be retrieved via the local display or interface.
Application
Benefits
Features

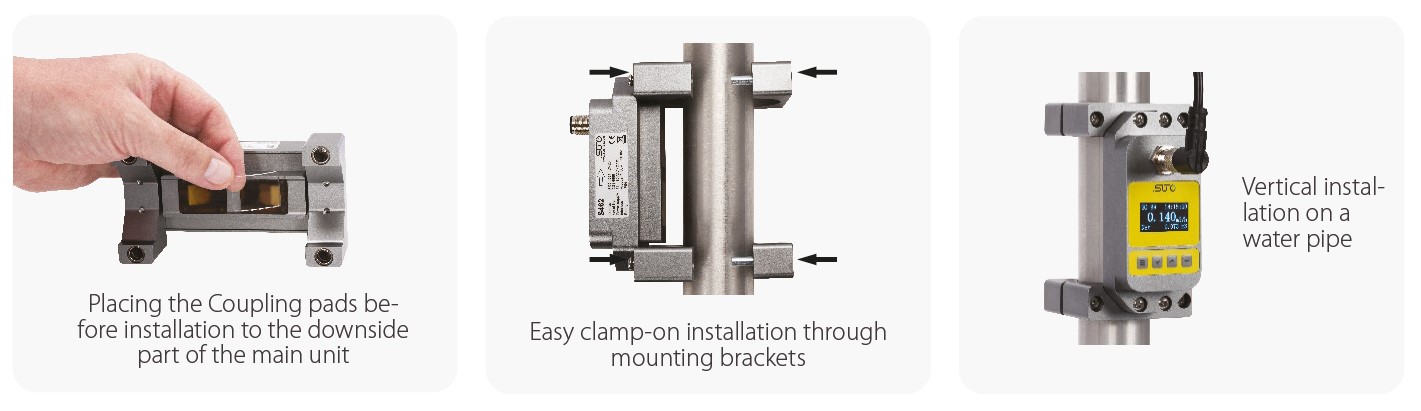

Installation
The video illustrates the installation and setup of a surface-mounted ultrasonic flow meter for water and liquids.
| MEASUREMENT | |
| Flow | |
| Accuracy | 1.5 % o.RDG + 0.2 % FS (0.5 … 5.0 m/s) |
| Selectable units | m³/h, l/min, GAL |
| Measuring range | see table below |
| Repeatability | 0.80 % o.RDG |
| Sensor | Piezo ultrasonic transducer |
| Sampling rate | 3 samples / sec |
| Turndown ratio | 10:1 |
| Response time (t90) | <2 sec |
| Consumption | |
| Selectable units | m³, Liter, GAL |
| Reference conditions | |
| Selectable conditions | 20 °C 1000 mbar (ISO1217), 0 °C 1013 mbar (DIN1343) freely adjustable |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA |
| Scaling | 0 … max flow / adjustable |
| Load | <600R |
| Update rate | 3/sec |
| Fieldbus | |
| Protocol | Modbus/RTU |
| Supply | |
| Voltage supply | 20 … 28 VDC |
| Current consumption | 100 mA @ 24 VDC |
| GENERAL DATA | |
| Configuration | |
| Settings | via integrated keyboard |
| Display | |
| Integrated | OLED, 128 x 64 pixel (31 x 16 mm) |
| Data Logger | |
| Totalizer | Daily, monthly, yearly consumption |
| Material | |
| Housing | Aluminum alloy |
| Sensor | PEI |
| Display cover | PMMA |
| Key pad | F150 |
| Miscellaneous | |

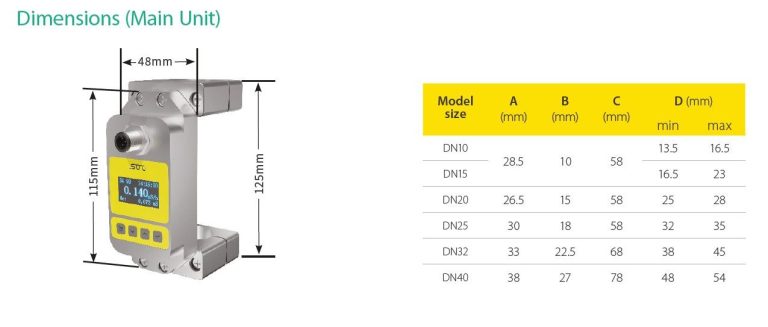

| Dimensions | see dimension drawing |
| Electrical connection | 1 x M12 (5 pole) |
| Protection class | IP65 |
| Approvals | CE, RoHS, FCC |
| Weight | 0.47 … 0.60 kg (depends on model) |
| Operating conditions | |
| Medium | Water, sea water, others on request |
| Medium quality | No solid particles, no air bubbles |
| Pipe material | Carbon steel, stainless steel, copper, PVC, PP, PU |
| Medium temperature | 0 … 50 °C |
| Ambient temperature | 0 … 50 °C |
| Ambient humidity | < 95 % rH |
| Storage temperature | -30 … +70 °C |
| Transport temperature | -30 … +70 °C |
| Pipe sizes | DN10, DN15, DN20, DN25, DN32, DN40 |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| S695 4621 | S462 Compact Ultrasonic Flow Meter for Liquids (Clamp-On), DN20 , including 2m cable and 4 couplant pads | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4622 | S462 Compact Ultrasonic Flow Meter for Liquids (Clamp-On), DN25 , including 2m cable and 4 couplant pads | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4623 | S462 Compact Ultrasonic Flow Meter for Liquids (Clamp-On), DN32 , including 2m cable and 4 couplant pads | Delivery time from 12 weeks | On request |
-
+
|
|
| S695 4624 | S462 Compact Ultrasonic Flow Meter for Liquids (Clamp-On), DN40 , including 2m cable and 4 couplant pads | Delivery time from 12 weeks | On request |
-
+
|
|

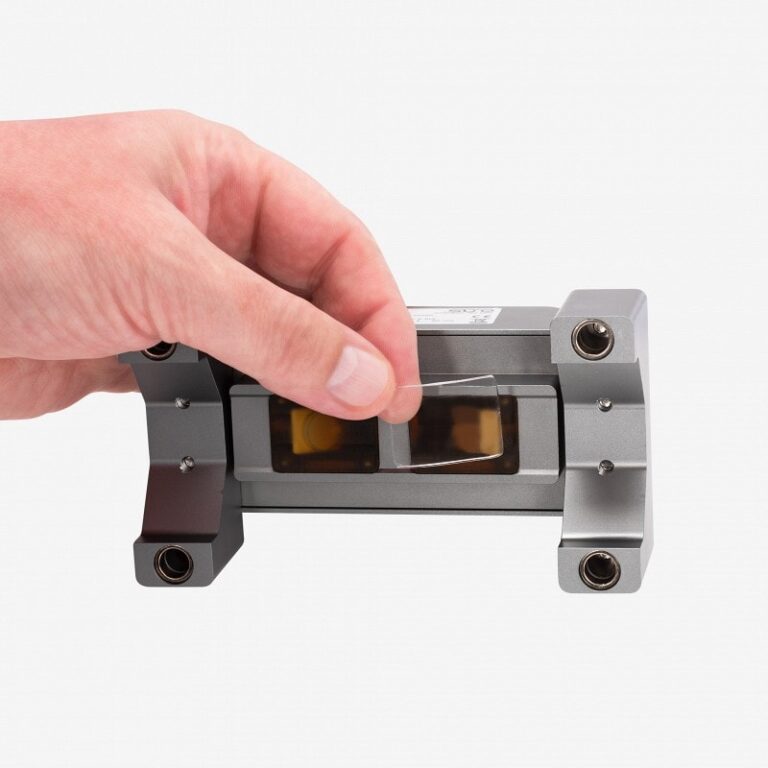

| A695 4620 | S462: Couplant pad, 4 pieces, | Delivery time from 12 weeks | On request |
-
+
|
|

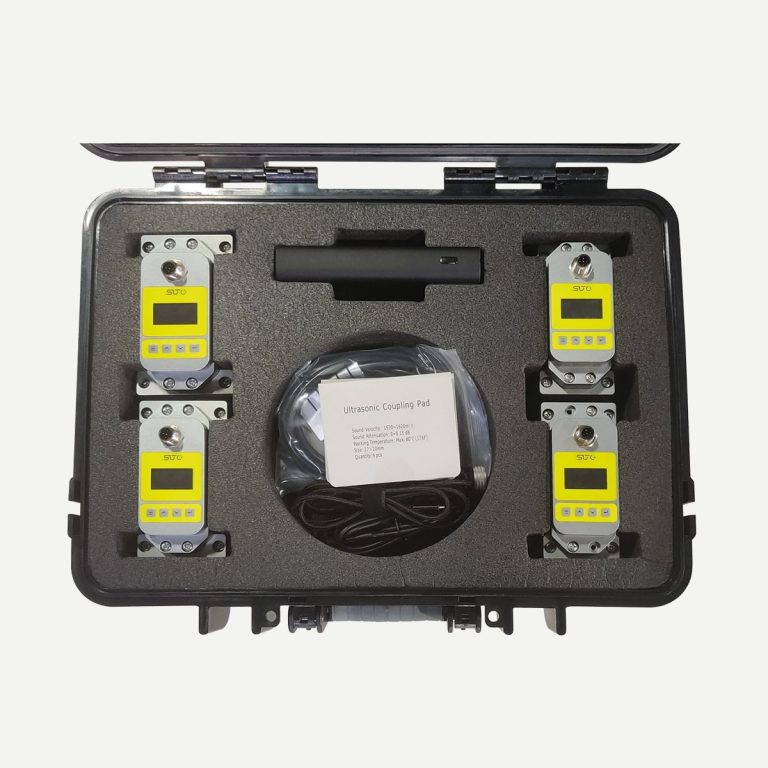

| A554 0129 | S462: Transport case , can hold 4 units, battery pack, 2m cable, 5m cable, cal cert, IM, dimensions: 465 x 365 x 185 mm | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0104 | Sensor cable 5m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0105 | Sensor cable 10m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0107 | Main unit 100...240VAC/24VDC, 0.8 A for SUTO sensors, 1.5m cable, M12 connector | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0156 | S462: Cable to connect external power bank, 1.8 m, USB-C connector for power bank, M12 connector 90 degree for S462 | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | Delivery time from 12 weeks | On request |
-
+
|
|
| P554 0009 | Ultrasonic thickness meter (Only accurate measurements are possible with the S461/S462, if the exact pipe wall thickness is set correctly.) | Delivery time from 12 weeks | On request |
-
+
|
