Key Components:
Purpose: Designed for system integrators, cable contractors, and IT departments that need reliable cable qualification, PoE validation, and Multi‑Gigabit link testing without the cost of full certification. The NSA‑K30E delivers ANSI/TIA‑1152‑A compliant Certi‑Lite testing, real‑world PoE load validation (up to 90W), and SNR‑based Multi‑Gig qualification (2.5/5/10G) – all in a single portable tester.
Made in USA. brand AEM, model NSA-K30E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2 525
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The NSA-K30E is an Enhanced Certi-Lite Test Kit used by System Integrators, Cable Contractors, and IT departments who need a deeper level of cable testing along with wired and wireless network connectivity testing. The kit supports Certi-Lite standards-based single-ended cable testing, PoE load testing for 802.3af/at/bt and UPoE, SNR-based Multi-Gigabit link speed testing up to 10GigE, and network connectivity testing. Wireless testing requires an optional Edimax EW-7822ULC Wi-Fi dual band USB Adapter (region specific, purchased separately).
The NSA Platform:
The Network Service Assistant (NSA) is an award-winning Multifunction Qualification+ Tester — a hybrid solution that bridges the divide between qualification and certification. The platform features an impact-resistant 5″ capacitive touchscreen, hot-swappable test adapters, Live Wiremap with audible connection indication, a built-in kickstand, and an RJ-45 Ethernet port that supports 10/100/1000 BASE-T testing with no test adapter needed. Available test functions adjust automatically when adapters are swapped, and results can be offloaded to TestDataPro Cloud via wired or wireless connection, or saved for the PC-based TestDataPro software.
Certi-Lite Technology:
Certi-Lite provides ANSI/TIA-1152-A compliant, single-ended channel testing of CAT3–CAT6A with a clear Pass/Fail indication and in-depth test reports. The test is performed using a small passive terminator (NSA Remote) at the far end, which significantly reduces the overall cost of the test equipment when compared to traditional cable certifiers. The CAT6A Certi-Lite Autotest takes only 13 seconds and includes length, delay, DC loop resistance, DC resistance unbalance (P2P), IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, impedance, and TDR locators. Please note: single-ended testing does not qualify for cable manufacturer warranty approval — for those who do not require the warranty and simply desire a deeper level of cable testing beyond a simple wiremap, the NSA is the first test solution to offer Certi-Lite.
Key Features:
Applications: reassessing the performance of existing cabling against standards requirements such as CAT6A; troubleshooting network connectivity and link speed issues; documenting cable plant performance; and moves, adds, changes. Optional hot-swappable test adapters are available to extend the platform (fiber loopback, OTDR, coax, and more).
Kit contains:
Platform and Remote:
Test Adapter:
Accessories and Documentation:
The video shows the functionality of the AEM Test Network Service Assistant (NSA) network tester.
| Device Type | Multifunction Qualification+ Connectivity Tester with Certi-Lite technology |
| Supported Cable Types | 4-pair twisted-pair copper cabling, CAT3 through CAT6A |
| Copper Testing (Certi-Lite) | ANSI/TIA-1152-A compliant single-ended channel testing CAT3–CAT6A with clear Pass/Fail indication and detailed printed reports |
| Certi-Lite Autotest Time | CAT6A: 13 sec – includes Length, Delay, DC Loop Resistance, DC Resistance Unbalance (P2P), IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, Impedance, RL/NEXT/Shield Locator TDR |
| Built-in Test Functions | Live Wiremap with Distance to Fault (TDR 0–100 m), DC Loop Resistance & P2P (0–100 Ω), Tone Generator (730/1440 Hz) |
| PoE Testing | Load test up to 90W; IEEE 802.3af/at/bt and UPoE; PSE detection/type, PD class, PoE pair identification, sustained power load monitoring |
| Multi-Gig Testing | Multi-Gig Autotest and SNR 2.5/5/10G under simultaneous traffic and PoE load; IEEE 802.3 up to 10GBASE-T |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, switch detail (slot/port/VLAN), traceroute, ping, traffic generator – via built-in RJ-45 10/100/1000 BASE-T port (no test adapter needed) |
| Wireless Network Testing | Wi-Fi discovery (SSID, RSSI, channel), roaming signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Advanced Link Identification (ALI) | Smart Certi-Lite capable numbered remote IDs (NSA Remote #1 included) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li-Ion, 3.7V / 13,200 mAh) |
| Measurement Engine | 9-channel mixed-mode RF and DC engine, 0.1–3,000 MHz frequency range |
| Compliance | ANSI/TIA-568.2-D, ISO 11801, ANSI/TIA-1152-A; PoE: IEEE 802.3 af/at/bt, UPoE; Multi-Gig: IEEE 802.3 up to 10GBASE-T |
| Calibration | Certificate of Calibration traceable to NIST included |
| Warranty | 2 years standard; extends to 5 years upon product registration |

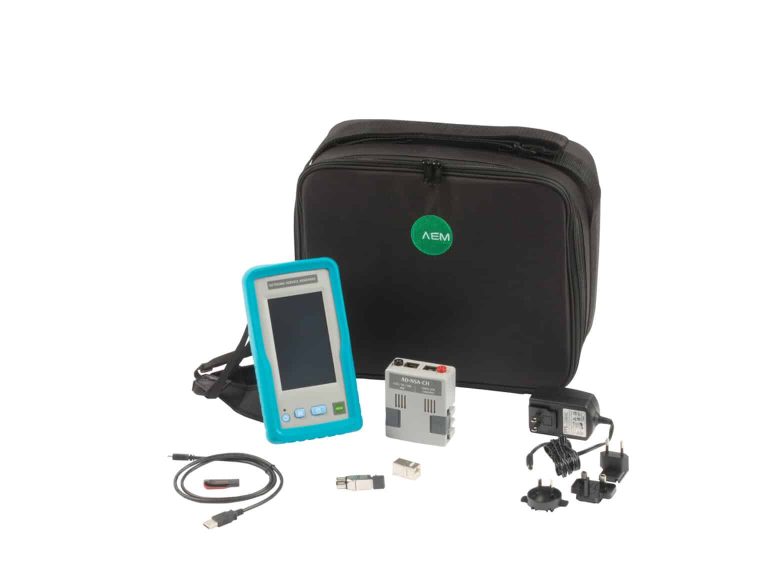

| Kit Includes | NSA Test Platform, AD-NSA Test Adapter, NSA Remote #1, CAT6A RJ-45 Coupler, Power Supply, Shoulder Strap, Small Carry Case, USB Cable, USB flash drive with TestDataPro |
| Important Note | Certi-Lite is single-ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro CV100 Multifunction Cable Certifier. |
| Not Included (Optional Upgrades) | MM/SM Loopback fiber testing, MM/SM OTDR, Hybrid Powered Fiber voltage test, NSA Remote Pack #2–#8, Link Identifier Kit – can be added with hot-swappable adapters |
| Ordering Models | NSA-K30E |
You can request the necessary certificates, documentation, instructions and user guide for AEM NSA-K30E using the special form.
You can buy AEM NSA-K30E in UAE at a price starting from 2525 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM NSA-K30E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
