Key Components:
Purpose:
All‑in‑one Smart Building test kit combining Certi‑Lite copper qualification (CAT3–6A), SM/MM loopback fiber validation with inspection, and professional link identification – all in a single portable tester. Delivers PoE load testing (up to 90W) and Multi‑Gig SNR qualification (2.5/5/10G) under real traffic and power conditions. This version is designed for 50Hz power grids.
Made in USA. brand AEM, model NSA-K61E-50HZ
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $7 805
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The NSA‑K61E is an Enhanced Smart Building Test Kit used by System Integrators, Cable Contractors, and IT departments who need copper qualification, fiber validation, and professional wire tracing in a single solution. The kit supports Certi‑Lite standards‑based single‑ended cable testing, PoE load testing for 802.3af/at/bt and UPoE, SNR‑based Multi‑Gigabit link speed testing up to 10GigE, Loopback Fiber Optic Testing for both Singlemode and Multimode, fiber inspection, and wired and wireless network connectivity testing. In addition to the standard NSA components, the K61E includes the Link Identifier Kit with Remote IDs #2–#8 and the Tempo Communications brand Noise Filtering Tone Probe (50Hz), plus SM/MM fiber test kits and SC interface kits for SC and LC testing right out of the box. Wireless testing requires an optional Edimax EW‑7822ULC Wi‑Fi dual band USB Adapter (region specific, purchased separately).
The NSA Platform:
The Network Service Assistant (NSA) is an award‑winning Multifunction Qualification+ Tester — a hybrid solution that bridges the divide between qualification and certification. The platform features an impact‑resistant 5″ capacitive touchscreen, hot‑swappable test adapters, Live Wiremap with audible connection indication, a built‑in kickstand, and an RJ‑45 Ethernet port that supports 10/100/1000 BASE‑T testing with no test adapter needed. The CAT6A Certi‑Lite Autotest completes in just 13 seconds, and results can be sent to TestDataPro Cloud via wired or wireless connection, or saved for the PC‑based TestDataPro software.
Certi‑Lite + Fiber + Professional Link Identification:
Certi‑Lite performs ANSI/TIA‑1152‑A compliant, single‑ended channel testing of CAT3–CAT6A with a clear Pass/Fail indication and in‑depth test reports, using a small passive termination at the remote end to significantly reduce equipment cost compared to traditional certifiers. The K61E adds Loopback optical loss testing for Singlemode (AD‑NSA‑SM‑01, 1310/1550nm, up to 20 km) and Multimode (AD‑NSA‑MM‑01, 850/1300nm EF‑compliant, up to 2 km) fiber with integrated VFL and Hybrid Powered Fiber voltage measurement, plus the PROBE‑FIBER‑INSP inspection scope for connector end‑face verification. With the included SC interface kits and loopback adapters, the K61E supports both SC and LC fiber testing out of the box. The Link Identifier Kit with smart, Certi‑Lite capable Remote IDs #2–#8 and the Tempo Noise Filtering Tone Probe — whose selectable filter blocks power noise and harmonics (50Hz) — allows wires and faults to be traced even in the noisiest environments.
Key Features:
Important Note: Certi‑Lite is single‑ended Qualification+ testing and does not qualify for cable manufacturer warranty approval; results are not considered certification. For certification testing refer to the TestPro Multifunction Cable Certifier.
Kit contains:
Platform and Remote:
Copper Test Adapter:
Fiber Test Kits and Inspection:
SC Interface and Loopback Adapters:
Link Identifier Kit (50Hz):
Accessories and Documentation:
The video shows the functionality of the AEM Test Network Service Assistant (NSA) network tester.
| Device Type | Multifunction Qualification+ Tester with Certi‑Lite, Fiber Loopback, and Advanced Link Identification |
| Supported Cable Types | 4‑pair twisted‑pair copper cabling (CAT3–CAT6A); Singlemode and Multimode fiber |
| Copper Testing (Certi‑Lite) | ANSI/TIA‑1152‑A compliant single‑ended channel testing CAT3–CAT6A with clear Pass/Fail indication and detailed printed reports |
| Certi‑Lite Autotest Time | CAT6A: 13 sec – includes Length, Delay, DC Loop Resistance, DC Resistance Unbalance P2P, IL, RL, NEXT, PSNEXT, ACRF, ACRN, PSACRN, Impedance, RL/NEXT/Shield Locator TDR |
| Built‑in Test Functions | Live Wiremap with Distance to Fault (TDR 0–100 m), DC Loop Resistance & P2P (0–100 Ω), Tone Generator (730/1440 Hz) |
| Fiber Optic Testing (Loopback) | Loopback optical loss testing for Singlemode and Multimode: length, delay, margin, loss, and network compatibility; TIA‑568.3‑E and ISO/IEC 14763‑3 Ed 2.1 |
| Fiber Adapters Included | AD‑NSA‑SM‑01 (Singlemode: 1310/1550nm Fabry‑Perot laser, up to 20 km, loopback loss 0 to ‑20 dB) and AD‑NSA‑MM‑01 (Multimode: 850/1300nm EF‑compliant LED, up to 2 km, loopback loss 0 to ‑10 dB), both with integrated VFL (650nm) |
| Hybrid Powered Fiber | Voltage measurement 0–60V DC on electrical conductors |
| Fiber Inspection | PROBE‑FIBER‑INSP visual inspection probe via USB port |
| Connector Support | LC and SC out of the box: SC interface adapters for Tx/Rx ports, FC‑SC and SC‑SC reference cords, SC and LC couplers, NSA‑MM‑SC‑K01 / NSA‑SM‑SC‑K01 kits, and MM/SM SC loopbacks included |
| PoE Testing | Load test up to 90W; IEEE 802.3af/at/bt and UPoE; PSE detection/type, PD class, PoE pair identification, sustained power load monitoring |
| Multi‑Gig Testing | Multi‑Gig Autotest and SNR 2.5/5/10G under simultaneous traffic and PoE load; IEEE 802.3 up to 10GBASE‑T |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, switch detail (slot/port/VLAN), traceroute, ping, traffic generator – via built‑in RJ‑45 10/100/1000 BASE‑T port (no test adapter needed) |
| Wireless Network Testing | Wi‑Fi discovery (SSID, RSSI, channel), roaming signal strength, ping (requires optional Edimax EW‑7822ULC USB adapter, sold separately) |
| Advanced Link Identification (ALI) | Includes Link Identifier Kit with NSA Remote Pack #2–#8 (smart, Certi‑Lite capable numbered remote IDs) and 50Hz noise filtering Tone Probe |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li‑Ion, 3.7V / 13,200 mAh) |
| Measurement Engine | 9‑channel dual‑ended mixed‑mode RF and DC engine, 0.1–3,000 MHz frequency range |
| Compliance | Copper: ANSI/TIA‑568.2‑D, ISO 11801, ANSI/TIA‑1152‑A; Fiber: TIA‑568.3‑E, ISO/IEC 14763‑3 Ed 2.1; PoE: IEEE 802.3 af/at/bt, UPoE; Multi‑Gig: IEEE 802.3 up to 10GBASE‑T; Wired Network: CDP, LLDP; Wireless: IEEE 802.11N & 802.11AC |
| Calibration | Certificate of Calibration traceable to NIST included |
| Warranty | 2 years standard; extends to 5 years upon product registration |

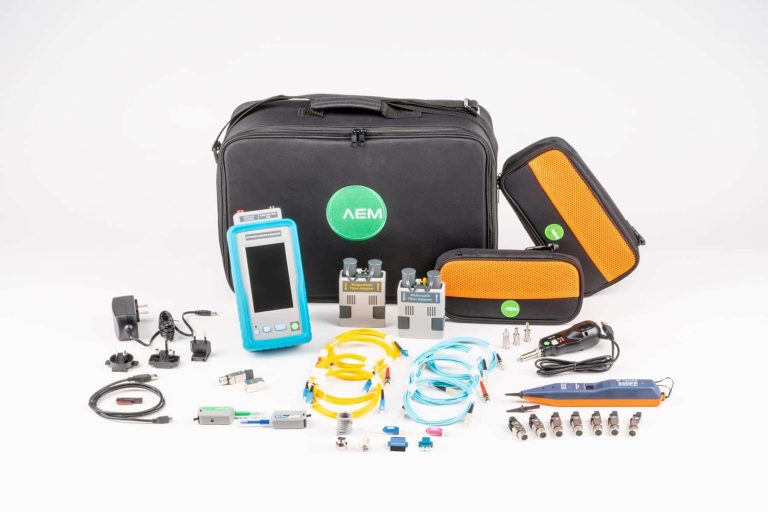

| Kit Includes | NSA Test Platform, AD‑NSA Test Adapter, NSA Remote #1, Link Identifier Kit (Remote Pack #2–#8 + 50Hz Tone Probe), AD‑NSA‑SM‑01 and AD‑NSA‑MM‑01 fiber test kits, PROBE‑FIBER‑INSP, SC interface kits (MM/SM), MM/SM SC loopbacks, SC and LC couplers, reference cords, CAT6A RJ‑45 coupler, power supply, shoulder strap, large carry case, USB cable, USB flash drive with TestDataPro |
| Frequency Variant | NSA‑K61E‑50HZ – Tone Probe with 50Hz filter |
| Ordering Model | NSA‑K61E‑50HZ |
You can request the necessary certificates, documentation, instructions and user guide for AEM NSA-K61E-50HZ using the special form.
You can buy AEM NSA-K61E-50HZ in UAE at a price starting from 7805 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM NSA-K61E-50HZ price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
