Key Components:
Purpose: The ultimate Smart Building solution for converged infrastructure, designed for teams that need to validate both the physical layer (Tier 1 copper and fiber) and active network services (PoE, Multi-Gig, MPTL). Eliminates the need to invest in separate copper certifiers, fiber loss testers, and network analyzers. Ideal for Wi-Fi 6/6E, IP camera, and Multi-Gig switch deployments
Made in USA. brand AEM, model TESTPRO-K61E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $17 995
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K61E is used by System Integrators, Network Owners, and Cable Contractors looking to add new service offerings. This kit provides both Copper and Fiber Optic certification (Tier 1), PoE load testing, and Multi-Gigabit link speed testing. Wired network testing is supported via the included AD-NET-CABLE adapter, while wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. For fiber applications, it performs Tier 1 insertion loss testing. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone network testers. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.
The TestPro K61E is the most comprehensive Smart Building test kit for converged infrastructure, combining everything a modern contractor needs in a single solution: CAT8.1 copper certification, Tier 1 Singlemode/Multimode fiber certification, PoE load validation, and Multi-Gigabit (2.5/5/10G) link speed testing. With the included fiber inspection scope, MPTL adapter, and network connectivity adapters, the K61E covers the complete deployment lifecycle — from physical layer certification to active network service validation — making it the optimal choice for teams working across copper, fiber, and powered network devices without requiring Tier 2 (OTDR) troubleshooting.
Key Features:
Benefits:
This kit is available in the following ordering options:

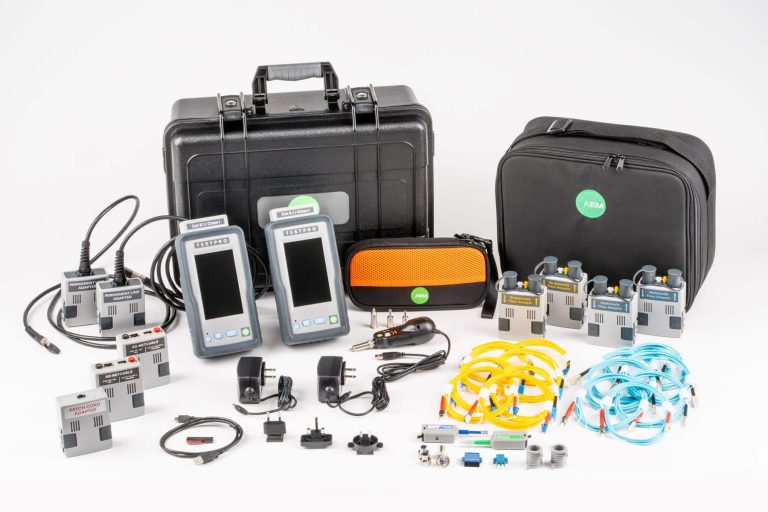

Kit contains:
Platforms and Calibration:
Copper Test Adapters:
Network, PoE and Multi-Gig Adapters:
Fiber Test Adapters (Tier 1):
Reference Cords, Connectors and Couplers:
SC Interface and Inspection:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
| Device Type | Multifunction Copper and Fiber Cable Certifier with PoE and Multi‑Gigabit Validation |
| Supported Cable Types | Twisted‑pair copper (CAT3–CAT8.1 / Class I); Singlemode and Multimode fiber |
| Copper Certification | CAT3–CAT8 Channel and Permanent Link testing with detailed printed reports Includes DC Resistance Unbalance, Wiremap with Distance to Fault |
| Fiber Optic Certification | Tier 1 (insertion loss) for Singlemode and Multimode Includes Hybrid Powered Fiber Resistance & Voltage Test (VFL and voltmeter) |
| PoE Load and Validation | Up to 90 W, supports 802.3af/at/bt and UPoE; PSE detection, PD class identification, sustained load monitoring |
| Multi‑Gigabit Link Speed Testing | 2.5/5/10GBASE‑T SNR qualification under real traffic and PoE load (via AD‑NET‑CABLE) |
| MPTL Testing | Supported via included CAT6A Patch Cord Adapter |
| Built‑in Test Functions | Copper Wiremap with Distance to Fault, DC Resistance Unbalance, Visual Fault Locator (VFL), Voltmeter, Inspection Probe (PROBE‑FIBER‑INSP) |
| Copper Test Adapters Included | Pair of AD‑CAT8.1‑CH Channel Adapters; Pair of AD‑CAT8.1‑PLE Permanent Link Adapters |
| Fiber Test Adapters Included | AD‑SM‑01 Singlemode (1310/1550nm) and AD‑MM‑01 Multimode (850/1300nm) adapter kits with VFL & voltmeter |
| Network Test Adapters Included | Pair of AD‑NET‑CABLE adapters for PoE, Multi‑Gig SNR, and network discovery |
| Connector Support | LC and SC (reference cords, interchangeable connectors, couplers, MM‑SC‑K01 and SM‑SC‑K01 included) |
| Wired Network Testing | 100/1000BASE‑T SNR, network discovery, switch detail (VLAN, PoE capabilities), ping, traceroute (via built‑in 1 GbE port and AD‑NET‑CABLE) |
| Wireless Network Testing | Wi‑Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW‑7822ULC USB adapter, sold separately) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included); combined reporting for copper, fiber, PoE, and network tests |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Typical 9 hours (Li-Ion, 13,200 mAh) |
| Measurement Engine | 9‑channel dual‑ended, 0.1–3000 MHz frequency range |
| Copper Autotest Time | CAT6A: 6 sec; CAT8: 30 sec (includes all mandatory and optional parameters) |
| Multimode Tier 1 Adapter (AD‑MM‑01) | 850/1300nm LED source; Encircled Flux compliant; length up to 2 km (max 10 dB loss); loss measurement 0 to ‑10 dB |
| Singlemode Tier 1 Adapter (AD‑SM‑01) | 1310/1550nm Fabry‑Perot laser; length up to 20 km (max 20 dB loss); loss measurement 0 to ‑20 dB |
| VFL / Hybrid Fiber Meter | 650nm VFL; 0‑60V DC and 0‑100Ω measurement for hybrid powered fiber |
| Compliance (Copper) | ANSI/TIA‑568.2‑D, ISO 11801, ANSI/TIA‑1152‑A (Level 2G), IEC 61935‑1 |
| Compliance (Fiber) | TIA‑568.3‑E, ISO/IEC 14763‑3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included for each platform; standard certificates of calibration for fiber adapters |
| Kit Includes | Two TestPro CV100 platforms, copper adapters (CH + PLE), fiber adapters (SM + MM), AD‑NET‑CABLE pair, CAT6A MPTL adapter, PROBE‑FIBER‑INSP, SC interface kits, reference cords, cleaning kits, hard carry case, soft cases, accessories |
| Not Included (Optional Upgrades) | OTDR (Tier 2), Singlemode OTDR, Multimode OTDR, Single Pair Ethernet (SPE) – can be added with hot‑swappable adapters |
| Ordering Models | TESTPRO‑K61E, TESTPRO‑K61E‑ECB (with 1‑year Extended Care) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO‑K61E | Smart Building PRO Kit — CAT8.1 + Tier 1 MM/SM Fiber + PoE (90W) + Multi‑Gig SNR (2.5/5/10G) Two TestPro CV100 platforms (calibrated) AD‑CAT8.1‑CH + AD‑CAT8.1‑PLE + AD‑NET‑CABLE + CAT6A MPTL adapters AD‑SM‑01 + AD‑MM‑01 kits, PROBE‑FIBER‑INSP scope, MM‑SC‑K01 + SM‑SC‑K01 kits Full reference cords, connectors, couplers, cleaning kits 1G Ethernet (discovery, ping, traceroute), Wi‑Fi (optional Edimax adapter) TestDataPro (PC + Cloud), hard carry case, soft cases for fiber adapters Extended Care not included |
Delivery time from 12 weeks | from 17 995$ |
-
+
|
|
| TESTPRO‑K61E‑ECB | + Extended Care Kit Same as Smart Building PRO Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 18 805$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K61E using the special form.
You can buy AEM TESTPRO-K61E in UAE at a price starting from 17995 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K61E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
