Key Components:
Purpose: Cost-effective, high-precision copper cable certification kit for CAT3 through CAT8.1 / Class I twisted-pair infrastructure. Delivers Channel and Permanent Link certification with detailed printed reports, plus Copper Wiremap with Distance to Fault and DC Resistance Unbalance measurements. Includes native 1G SNR testing and network discovery — without paying for fiber, PoE, or Multi-Gig capabilities that may not be required. Optional hot-swappable adapters available to expand functionality as project needs evolve.
Made in USA. brand AEM, model TESTPRO-K50E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $7 200
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K50E is used by Cable Contractors. This kit provides high-precision copper cable certification up to CAT8.1 / Class I. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently as standalone network testers. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing and network test/discovery, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.
The TestPro K50E is a purpose-built, cost-effective copper cable certification solution specifically designed for contractors and installers who work exclusively with twisted-pair copper cable infrastructure. It provides full support for current and next-generation standards, including channel and permanent link certification up to CAT8.1 / Class I — without the cost of fiber, PoE, or multi-gig testing capabilities that may not be required. The kit is the optimal choice for teams focused solely on copper cable installation and certification.
Key Features:
This kit is available in the following ordering options:
Kit contains:
Platforms and Calibration:
Copper Test Adapters:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
| Device Type | Multifunction Copper Cable Certifier (CAT3–CAT8.1) |
| Supported Cable Types | Twisted-pair copper cabling, CAT3 through CAT8.1 / Class I |
| Cable Certification | Channel and Permanent Link testing with detailed printed reports |
| Built-in Test Functions | Copper Wiremap with Distance to Fault, DC Resistance Unbalance |
| Test Adapters Included | Pair of AD-CAT8.1-CH Channel Adapters; Pair of AD-CAT8.1-PLE Permanent Link Adapters |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, ping, traceroute (via built-in 1 GbE port) |
| Wireless Network Testing | Wi-Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Typical 9 hours (Li-Ion, 13,200 mAh) |
| Measurement Engine | 9-channel dual-ended measurement engine, 0.1–3000 MHz frequency range |
| Calibration | Certificate of Calibration traceable to NIST included for each platform |

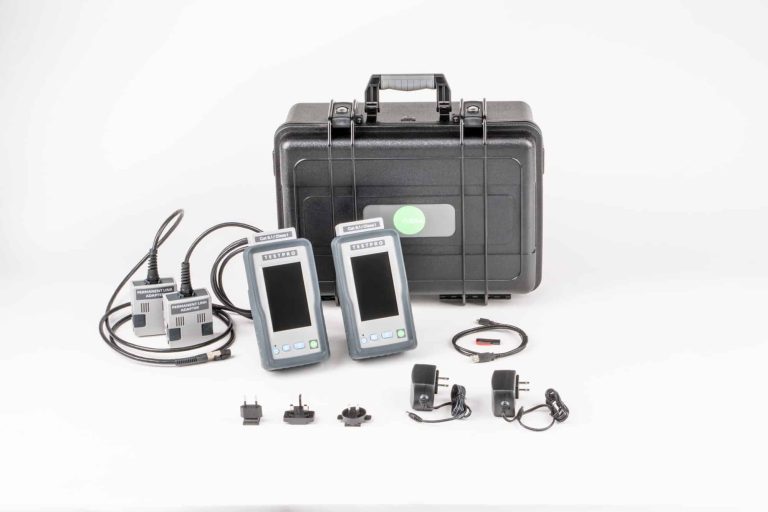

| Kit Includes | Two TestPro CV100 platforms, AD-CAT8.1-CH and AD-CAT8.1-PLE adapters (pairs), hard carry case, hanging straps, USB cable, USB flash drive, AC power adapters, quick start guide |
| Not Included | Fiber certification, OTDR, PoE validation, Multi-Gig (2.5/5/10G), Single Pair Ethernet – can be added with optional hot-swappable adapters |
| Ordering Models | TESTPRO-K50E, TESTPRO-K50E-ECB (with 1-year Extended Care), TESTPRO-K50EX4 (4-pack bundle) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO‑K50E | Base Copper Kit — Full CAT8.1 Certification (Channel + Permanent Link) Two TestPro CV100 platforms (calibrated) AD‑CAT8.1‑CH Channel Adapters (pair) + AD‑CAT8.1‑PLE Permanent Link Adapters (pair) 1G Ethernet (100/1000BASE‑T SNR, discovery, ping, traceroute) Wi‑Fi analysis (requires optional Edimax adapter, sold separately) TestDataPro (PC + Cloud) on USB flash drive Hard carry case, hanging straps, USB cable, AC adapters, quick start guide Extended Care not included |
Delivery time from 12 weeks | from 7 200$ |
-
+
|
|
| TESTPRO‑K50E‑ECB | + Extended Care Kit Same as Base Copper Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 7 525$ |
-
+
|
|
| TESTPRO‑K50EX4 | 4‑Kit Bundle — Four complete K50E kits in one package Each kit identical to Base Copper Kit Includes 1‑Year Extended Care for the entire bundle Warranty and support apply to the bundle as a whole – not divisible between different customers |
Delivery time from 12 weeks | from 30 100$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K50E using the special form.
You can buy AEM TESTPRO-K50E in UAE at a price starting from 7200 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K50E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
