Key Components:
Purpose: Purpose-built for copper-only Smart Building deployments requiring PoE validation and Multi-Gigabit link qualification. Includes CAT8.1 certification, PoE load testing, and Multi-Gig SNR testing with MPTL support.
Made in USA. brand AEM, model TESTPRO-K60E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $8 500
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K60E is used by System Integrators, Network Owners, and Cable Contractors looking to add advanced service offerings. This kit provides comprehensive Copper certification, PoE load testing, and Multi-Gigabit link speed testing. Wired network testing is supported via the included AD-NET-CABLE adapter, while wireless testing requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.
The TestPro K60E is a purpose-built Smart Building test kit specifically designed for professionals working exclusively with copper cabling infrastructure who also need to validate active network services. Unlike basic certification kits, the K60E includes the AD-NET-CABLE adapter pair for PoE validation and Multi-Gigabit SNR testing, as well as a dedicated adapter for MPTL (Modular Plug Terminated Link) verification. It is the optimal choice for teams deploying Wi-Fi 6/6E access points, IP cameras, and Multi-Gig switches who need to guarantee both physical layer integrity and active network performance.
Key Features:
Benefits:
This kit is available in the following ordering options:
Kit contains:
Platforms and Calibration:
Copper Test Adapters:
Network, PoE and Multi-Gig Adapters:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
| Device Type | Multifunction Smart Building Copper Certifier with PoE & Multi-Gig Testing |
| Supported Cable Types | Twisted-pair copper cabling, CAT3 through CAT8.1 / Class I |
| Cable Certification | CAT3–CAT8 Channel and Permanent Link testing with detailed printed reports |
| Built-in Test Functions | Copper Wiremap with Distance to Fault, DC Resistance Unbalance |
| PoE Testing | PoE Load and Validation Testing – IEEE 802.3af/at/bt and UPoE; real power load test at the jack up to 90W; PSE detection, PD class, and sustained load monitoring |
| Multi-Gig Testing | Multi-Gig Autotest and Multi-Gig (2.5/5/10G) SNR – link performance validation under simultaneous traffic and PoE load |
| MPTL Testing | Cat6A Modular Plug Terminated Link validation via included CAT6A Patch Cord Adapter |
| Test Adapters Included | Pair of AD-CAT8.1-CH Channel Adapters; Pair of AD-CAT8.1-PLE Permanent Link Adapters; Pair of AD-NET-CABLE Adapters; one CAT6A Patch Cord Adapter (MPTL) |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, switch detail, ping, traceroute (via built-in 1 GbE port and AD-NET-CABLE adapters) |
| Wireless Network Testing | Wi-Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Typical 9 hours (Li-Ion, 13,200 mAh) |
| Measurement Engine | 9-channel dual-ended measurement engine, 0.1–3000 MHz frequency range |
| Compliance (Copper) | ANSI/TIA-568.2-D, ISO 11801, ANSI/TIA-1152-A, IEC 61935-1 |
| Compliance (PoE / Multi-Gig) | IEEE 802.3 af/at/bt, UPoE; IEEE 802.3 up to 10GBASE-T |
| Calibration | Certificate of Calibration traceable to NIST included for each platform |

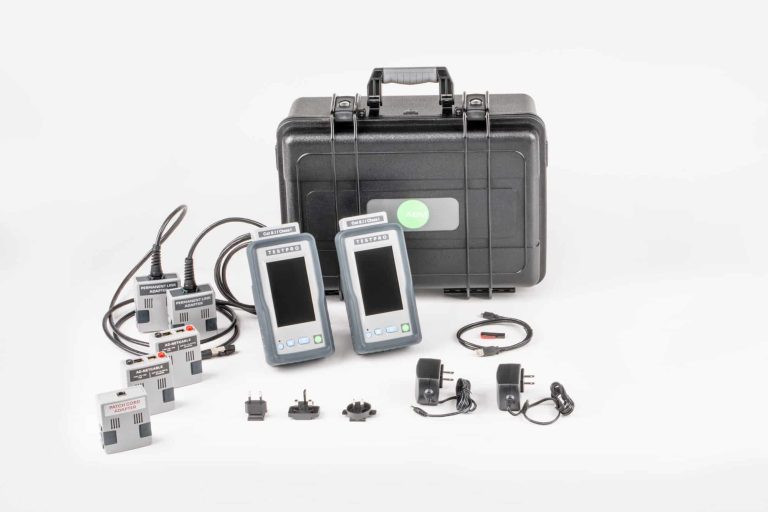

| Kit Includes | Two TestPro CV100 platforms, AD-CAT8.1-CH and AD-CAT8.1-PLE adapters (pairs), AD-NET-CABLE adapter pair, CAT6A Patch Cord Adapter (MPTL), hard carry case, hanging straps, USB cable, USB flash drive, AC power adapters, quick start guide |
| Not Included | Fiber certification (Tier 1 / Tier 2), OTDR, Single Pair Ethernet, Hybrid Powered Fiber testing – can be added with optional hot-swappable adapters |
| Ordering Models | TESTPRO-K60E, TESTPRO-K60E-ECB (with 1-year Extended Care) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO-K60E | Smart Building Kit — CAT8.1 copper + PoE + Multi‑Gig (2.5/5/10G) SNR Two TestPro CV100 platforms (calibrated) AD‑CAT8.1‑CH + AD‑CAT8.1‑PLE + AD‑NET‑CABLE + CAT6A MPTL adapters 1G Ethernet (discovery, ping, traceroute), Wi‑Fi (optional Edimax adapter) TestDataPro (PC + Cloud), hard carry case & accessories Extended Care not included |
Delivery time from 12 weeks | from 8 500$ |
-
+
|
|
| TESTPRO-K60E-ECB | + Extended Care Kit Same as Smart Building Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 8 885$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K60E using the special form.
You can buy AEM TESTPRO-K60E in UAE at a price starting from 8500 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K60E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
