Key Components:
Purpose: All-in-one Tier 1 certification for hybrid copper + fiber deployments: CAT8.1 copper and SM/MM fiber in a single platform. The cost-effective choice when Tier 2 (OTDR), PoE, and Multi-Gig are not required — with optional adapters available to expand functionality later.
Made in USA. brand AEM, model TESTPRO-K51E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $16 500
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The K51E is used by Cable Contractors. This kit provides both Copper and Fiber Optic Tier 1 certification. Wireless testing is supported and requires an optional Edimax EW-7822ULC Wi-Fi USB Adapter.
The TestPro CV100 Platform:
The TestPro CV100 is a powerful modular cable certification platform built on a 9-channel dual-ended measurement engine with a 0.1–3000 MHz frequency range. For copper applications, it delivers rapid certification of Cat 3 through Cat 8 cabling with detailed printed reports. For fiber applications, it performs Tier 1 insertion loss testing. The platform features a 5-inch capacitive touchscreen, hot-swappable test adapters, and dual full-function handsets that can operate together for end-to-end certification or independently. Each handset includes a built-in 1 Gbps Ethernet port for 100/1000BASE-T SNR testing and network test/discovery, USB interfaces, and TestDataPro cloud/PC integration for automated reporting.
The TestPro K51E is a comprehensive copper and fiber certification solution specifically designed for contractors and installers who work with both twisted-pair copper and fiber optic infrastructure, but do not require Tier 2 (OTDR) troubleshooting, PoE validation, or Multi-Gig testing. It provides full support for current standards, including CAT8.1 copper certification and Tier 1 Singlemode/Multimode fiber certification — complete with a fiber inspection scope and all necessary reference cords for LC and SC connectors.
Key Features:
This kit is available in the following ordering options:
Kit contains:
Platforms and Calibration:
Copper Test Adapters:
Fiber Test Adapters (Tier 1):
Reference Cords, Connectors and Couplers:
SC Interface and Inspection:
Accessories and Documentation:
The video presents an overview and capabilities of the AEM TestPro CV100 multifunction cable certification tester.
The video demonstrates the copper cable certification and advanced troubleshooting process using the AEM TestPro tester.
| Device Type | Multifunction Copper and Fiber Cable Certifier |
| Supported Cable Types | Twisted-pair copper cabling (CAT3 through CAT8.1 / Class I); Singlemode and Multimode Fiber |
| Copper Certification | CAT3–CAT8 Channel and Permanent Link testing with detailed printed reports |
| Fiber Optic Certification | Tier 1 (insertion loss) for both Singlemode and Multimode – includes Hybrid Powered Fiber Resistance & Voltage Test |
| Built-in Test Functions | Copper Wiremap with Distance to Fault, DC Resistance Unbalance, Visual Fault Locator (VFL), Voltmeter, Inspection Probe (PROBE-FIBER-INSP) |
| Copper Test Adapters Included | Pair of AD-CAT8.1-CH Channel Adapters; Pair of AD-CAT8.1-PLE Permanent Link Adapters |
| Fiber Test Adapters Included | AD-SM-01 Singlemode (1310/1550nm) and AD-MM-01 Multimode (850/1300nm) adapter kits with VFL & volt meter |
| Connector Support | LC and SC (reference cords, interchangeable connectors, couplers, and SC interface kits included) |
| Wired Network Testing | 100/1000BASE-T SNR, network discovery, ping, traceroute (via built-in 1 GbE port) |
| Wireless Network Testing | Wi-Fi analysis, AP discovery, signal strength, ping (requires optional Edimax EW-7822ULC USB adapter) |
| Results Management | TestDataPro PC software & Cloud (USB flash drive included) |
| Display | 5″ TFT color touch screen (800 x 480) |
| Battery Life | Up to 9 hours (Li-Ion, 13,200 mAh) |
| Measurement Engine | 9-channel dual-ended measurement engine, 0.1–3000 MHz frequency range |
| Multimode Tier 1 Adapter (AD-MM-01) | 850/1300nm LED source; Encircled Flux compliant; length up to 2 km (max 10 dB loss); loss measurement 0 to -10 dB |
| Singlemode Tier 1 Adapter (AD-SM-01) | 1310/1550nm Fabry-Perot laser; length up to 20 km (max 20 dB loss); loss measurement 0 to -20 dB |
| VFL / Hybrid Fiber Meter | 650nm VFL; 0-60V DC and 0-100 Ω measurement for hybrid powered fiber |
| Compliance (Copper) | ANSI/TIA-568.2-D, ISO 11801, ANSI/TIA-1152-A, IEC 61935-1 |
| Compliance (Fiber) | TIA-568.3-E, ISO/IEC 14763-3 Ed 2.1 |
| Calibration | Certificate of Calibration traceable to NIST included for each platform; standard certificates of calibration for fiber adapters |

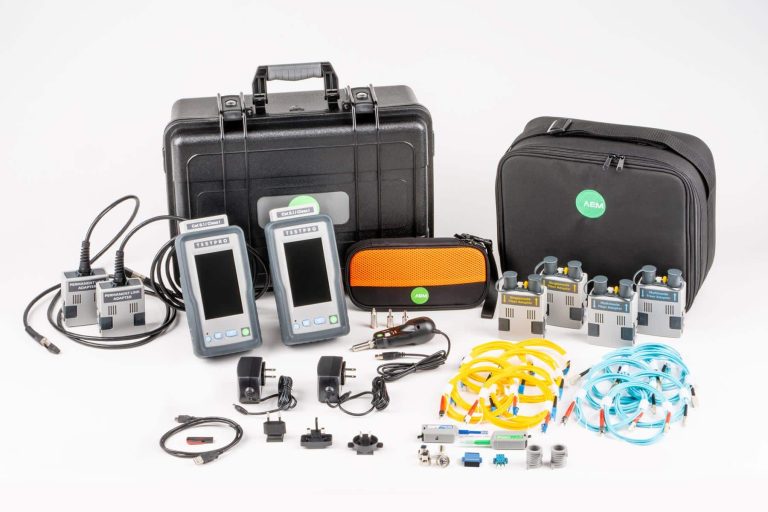

| Kit Includes | Two TestPro CV100 platforms, Copper adapters (CH + PLE), Fiber adapters (SM + MM), PROBE-FIBER-INSP, SC interface kits, reference cords, cleaning kits, hard carry case for TestPro, soft carry cases for fiber adapters, accessories |
| Not Included | OTDR (Tier 2), PoE validation, Multi-Gig (2.5/5/10G) SNR, Single Pair Ethernet – can be added with optional hot-swappable adapters |
| Ordering Models | TESTPRO-K51E, TESTPRO-K51E-ECB (with 1-year Extended Care) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TESTPRO-K51E | Copper + Fiber Kit — Full CAT8.1 Certification + Tier 1 MM + SM Certification Two TestPro CV100 platforms (calibrated) AD‑CAT8.1‑CH + AD‑CAT8.1‑PLE adapters (copper) AD‑SM‑01 (1310/1550 nm) + AD‑MM‑01 (850/1300 nm) kits with VFL & volt meter PROBE‑FIBER‑INSP scope, MM‑SC‑K01 + SM‑SC‑K01 kits, cleaning kits Full reference cords, interchangeable connectors, couplers 1G Ethernet (100/1000BASE‑T SNR, discovery, ping, traceroute) Wi‑Fi analysis (requires optional Edimax adapter, sold separately) TestDataPro (PC + Cloud), hard carry case, soft cases for adapters, all accessories Extended Care not included |
Delivery time from 12 weeks | from 16 500$ |
-
+
|
|
| TESTPRO-K51E-ECB | + Extended Care Kit Same as Copper + Fiber Kit + 1‑Year Extended Care |
Delivery time from 12 weeks | from 17 245$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for AEM TESTPRO-K51E using the special form.
You can buy AEM TESTPRO-K51E in UAE at a price starting from 16500 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. AEM TESTPRO-K51E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
