Multi-Channel Moisture Measurement in Process Gases

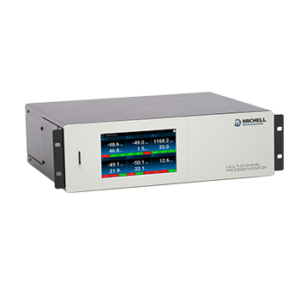

Made in United Kingdom. brand Michell, model Multi Channel Process Monitor
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
This flexible multi-channel analyzer is designed to provide real-time, multi-parameter displays for our industrial hygrometer systems for measurement of high pressure, process gases and vaporized liquids on natural gas platforms and terminals, petrochemical plants and industrial gas manufacturing facilities. Optional oxygen electrochemical sensors offer additional capability for percentage and ppmV O2 measurements. Combined with a choice of PST sensors and proven sample conditioning system design engineering capabilities, the system provides a multi-channel online instrument for both flammable and non-flammable gases, that is reliable and easy to operate.
Applications
| Process Monitor | |
| Display | 7” color touchscreen LCD, displaying moisture content/dew point or O2 and analysis pressure or temperature and process tag names/numbers |
| Analog Output | Three 4…20 mA (max. load 500 Ω) per channel User configured for parameter, unit, and range |
| Digital Output | RS485 Modbus RTU plus Ethernet port for Modbus TCP/IP |
| Data Logging | SD card (Max. 32Gb FAT16/FAT32) All measurement parameters (DP, temperature, pressure, %/ppm O2, plus basic fault-finding data) |
| Display Mode | Moisture content (ppmV) Moisture content in natural gas (ppmV, LBMMSCF, mg/m³) Dew point (°C or °F) Pressure (psig, barg) % or ppmV O2 |
| Pressure Compensation | Fixed value (user programmed) or dynamic input from optional pressure sensor |
| Display Resolution | 0.1 °Cdp, 0.1 °Fdp, 0.1-0.001 ppmV ideal gas (adjustable), 0.01 ppmV natural gas, 0.01 mg/m³, 0.01 LBMMSCF, 1 psig, 0.1 barg 0.01 %/0.5 ppmV O2 |
| Alarms | Two alarm relays with user-programmable set points per channel, with additional system alarm Two Form C contacts rated 30 V DC, 5A Non-inductive load |
| I.S. Barriers | Galvanic isolation type, integrated to process monitor |
| Power Supply | 85…264 V AC 47/63 Hz or 20…28 V DC 30 VA maximum power consumption |
| Operating Environment | Indoor, safe area, 0…+50 °C (+32…+122 °F), < 90 %rh |
| Interconnection Cable | General instrument type, twisted pair, screened, single pair (two pairs with pressure sensor) |
| Enclosure | 19” sub rack unit Dimensions: 132 x 483 x 375 mm (5.2 x 19.01 x 14.76”) (h x w x d) (100 mm/4” min. rear clearance depth for cables and vents) |
You can request the necessary certificates, documentation, instructions and user guide for Michell Multi Channel Process Monitor using the special form.
You can buy Michell Multi Channel Process Monitor in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Multi Channel Process Monitor price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
