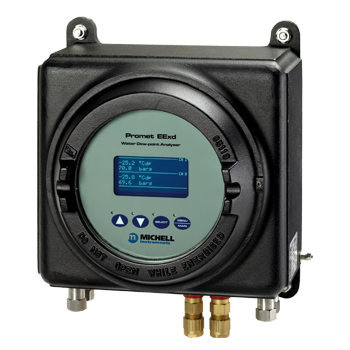

Natural Gas Water Dew-Point Analyzer
Made in United Kingdom. brand Michell, model Promet EExd
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Promet EExd Process Moisture Analyzers are hazardous-area rated industrial hygrometer systems for measurement of water vapor content in process gases on natural gas platforms and terminals as well as in petrochemical plants and industrial manufacturing facilities.
The Promet EExd is installed directly in the hazardous area, simplifying site installation and retrofits. Promet EExd combines proven Michell moisture sensing technologies with sample conditioning systems designed to provide a reliable and easy-to-operate, multi-channel, on-line instrument for moisture measurement in flammable gases.
Suitable for use with natural gas containing up to 20 % hydrogen with no further modification required
Applications
| Channel Configurations | Single and two channel |
| Moisture Parameters | Dew point °C and °F |
| Moisture Content | Automatic pressure compensated conversions: ppmV for natural gas and ideal gas, lb/mmscf and mg/m³ for natural gas. Dew point at a pressure input by the user for natural gas and ideal gas. Calculations for natural gas moisture content based on either ISO 18453 or IGT#8 to customer order preference. |
| Analysis Pressure | barg, MPa and psig |
| Sensor Technology | Michell Ceramic Metal-Oxide Moisture Sensor |
| Measurement Range | -120 °C dp…+30 °C dp (-184…+86 °F) 1 ppbV…30,000 ppmV 0…250 barg (0…3625 psig) |
| Calibration Range | -100 °C dp…+20 °C dp (-148 °F dp…+68 °F dp) 10 ppbV…23,000 ppmV |
| Accuracy | Dew point: ±1 °C between –59.9 & +20 °C dp (±1.8 °F between -75.8 & 68 °F dp) Moisture content: ±10 % of reading Dew point: ±2 °C between –60 & -100 °C dp (±3.6 °F between -76 & -148 °F dp) Moisture content: ±20 % of reading Analysis Pressure: ±0.25 % FS |
| Measured Resolution | 0.1 °C (0.18 °F): -80…+20 °C (-112…+68 °F) dp 1 °C (1.8 °F): -100…-80 °C (-148…-112 °F) dp |
| Displayed Resolution | Dew point: 0.1 °C (0.18 °F) Moisture content: autoscale, 5 digits MPa and BarG: 0.1, psig: 1.0 |
| Resolution | 0.1 °C between +20 °C dp and -80 °C dp (0.18 °F between +68 and -112 °F dp) 1 °C between -80 °C dp and -100 °C dp (1.8 °F between -112 and -148 °F dp) |
| Temperature Coefficient | Algorithm compensation (-20…+50 °C) |
| HMI: Keyboard Interface | Capacitive touch-screen through glass |
| Display | Vacuum fluorescent |
| Data Logging | A rolling maximum of 150 data logs is available. Each log records time, date, moisture, and pressure values for each channel. 5 minutes minimum and 60 minutes maximum logging intervals can be set by the user. |
| Communications and Output | Two non-isolated 4…20 mA per measurement channel. 500 Ω maximum load. Range and parameter settable by user. Modbus RTU @ 9600 baud-rate Alarms: two volt-free contacts per channel; one process value and one instrument status. Also available via Modbus communications. |
| Main Unit Enclosure | Internal temperature control for condensation protection and stable analysis conditions |
| Type | Flameproof Exd |
| Construction | Cast copper-free aluminum |
| Finish | Chromate primer, Polyester P9010 powder coated (black). Meets BS3900 |
| Operating Pressure | 30…138 barg (435…2000 psig)* |
| Sample Connections | 1/8” NPT (F) |
| Sample Flow Rate | 1 Nl/min (Nm³/hr) (2.1 scfh) |
| Sample Flow Alarm | Included as standard |
| Power Supply | 90…260 V AC, 50/60 Hz, 180 W Main Unit |
| Operating Environment | Indoor/Outdoor -20 °C…+60 °C (-4…+140 °F) Max 95 %rh. Shaded location |
Certification
| Hazardous Area Certification | ATEX/UKCA: II 2 G Ex db IIB+H2 Gb T5 (Tamb -40 °C…+44 °C) – 60 barg max. T4 (Tamb -40 °C…+60 °C) – 60 barg max. T3 (Tamb -40 °C…+60 °C) – 138 barg max.IECEx: Ex db IIB+H2 Gb T5 (Tamb -40 °C…+44 °C) – 60 barg max. T4 (Tamb -40 °C…+60 °C) – 60 barg max. T3 (Tamb -40 °C…+60 °C) – 138 barg max.cQPSus: Class I, Division 1 Groups B, C & D T5 (Tamb -25 °C…+44 °C) – 60 barg max. T4 (Tamb -25 °C…+60 °C) – 60 barg max. T3 (Tamb -25 °C…+60 °C) – 138 barg max.Class I, Zone 1 Ex db IIB+H2 Gb AEx db IIB+H2 Gb T5 (Tamb -40 °C…+44 °C) – 60 barg max. T4 (Tamb -40 °C…+60 °C) – 60 barg max. T3 (Tamb -40 °C…+60 °C) – 138 barg max. |
| Additional | TRCU 012 (EAC), PESO (India), KCS (Korea), Ukraine Ex |
| Pattern Approval | GOST-R, GOST-K |
* Other variants available to customer specific order – consult Michell Instruments
You can request the necessary certificates, documentation, instructions and user guide for Michell Promet EExd using the special form.
You can buy Michell Promet EExd in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Promet EExd price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
